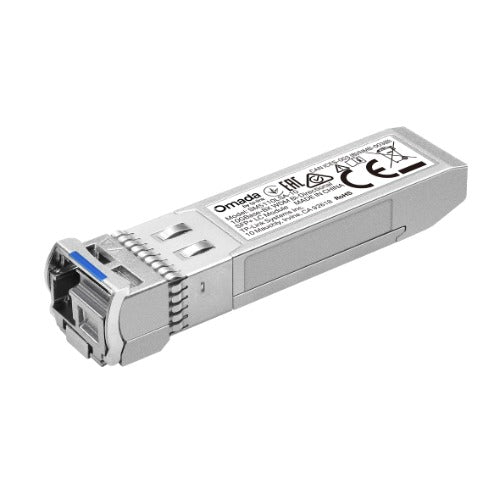

TP-Link SM5110LSA-10 10GBase-BX WDM SFP+ Transceiver
TP-Link SM5110LSA-10 10GBase-BX WDM SFP+ Transceiver
SKU:NWTL-SM5110LSA-10
The TP-Link SM5110LSA-10 is a 10GBase-BX WDM bi-directional SFP+ transceiver module designed for cost-effective single-strand fibre deployments. Featuring hot-pluggable design, Digital Diagnostic Monitoring, and full 10G SFP+ compatibility, it delivers reliable high-speed connectivity for modern network infrastructure.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SM5110LSA-10 |
| Availability | In Stock |
Overview
- The TP-Link SM5110LSA-10 is a single-mode 10GBase-BX WDM SFP+ transceiver module that enables cost-effective fibre optic networking by supporting bi-directional communication over a single strand of fibre. This approach significantly reduces cabling complexity and material costs whilst maintaining full 10 Gigabit performance.
The module is hot-pluggable, allowing for flexible installation and replacement without system downtime. Built-in Digital Diagnostic Monitoring provides real-time visibility into transceiver performance, helping IT teams identify and resolve connectivity issues quickly.
Designed for compatibility with TP-Link's Omada managed switches and other standards-compliant 10G SFP+ equipped network equipment, the SM5110LSA-10 is an ideal choice for organisations looking to expand their network infrastructure cost-effectively.
Specifications
| Brand | TP-Link |
|---|---|
| Model | SM5110LSA-10 |
| Product Type | 10GBase-BX WDM SFP+ Transceiver Module |
| Connector Type | LC single-mode |
| Fibre Type | Single-mode |
| Technology | WDM (Wavelength Division Multiplexing) Bi-Directional |
| Data Rate | 10 Gbps |
| Standard | 10GBase-BX, SFP+ |
| Features | Hot-pluggable, Digital Diagnostic Monitoring (DDM) |
| Compatibility | 10G SFP+ ports, TP-Link SG3428X, SG3452X |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What does WDM bi-directional mean?
WDM (Wavelength Division Multiplexing) bi-directional technology allows simultaneous two-way communication over a single strand of fibre by using different wavelengths for each direction. This reduces cabling requirements and costs compared to traditional dual-fibre connections.
Is the SM5110LSA-10 hot-pluggable?
Yes, the module is hot-pluggable, meaning it can be inserted or removed from a live 10G SFP+ port without powering down the switch or network.
What is Digital Diagnostic Monitoring (DDM)?
DDM provides real-time monitoring of transceiver performance metrics such as optical power levels, temperature, and voltage. This helps network administrators monitor module health and diagnose connectivity issues.
Which TP-Link switches does this transceiver work with?
The SM5110LSA-10 is compatible with TP-Link switches featuring 10G SFP+ ports, including the SG3428X and SG3452X models, as well as other standards-compliant 10G switches.
What is the maximum fibre distance supported?
As a 10GBase-BX module, it is designed for long-distance single-mode fibre runs typical of data centre and campus network deployments. Consult TP-Link technical specifications for exact distance ratings.
How long is the warranty?
The TP-Link SM5110LSA-10 includes a 3-year manufacturer warranty covering defects in materials and workmanship.
