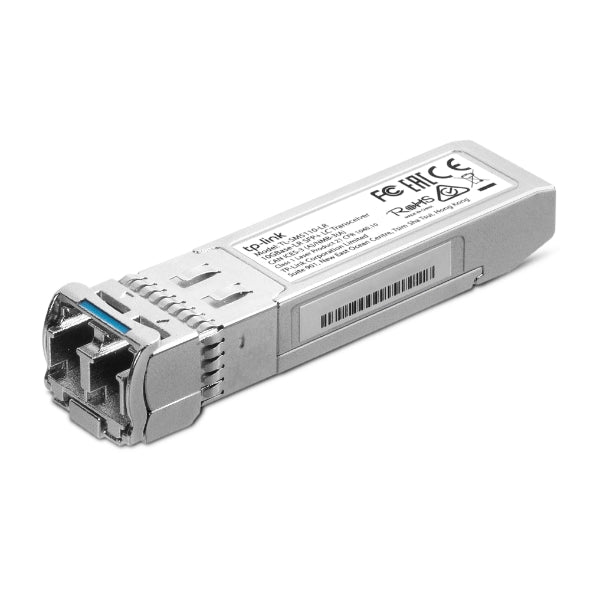

TP-Link TL-SM5110-LR 10GBase-LR SFP+ Transceiver
TP-Link TL-SM5110-LR 10GBase-LR SFP+ Transceiver
SKU:NWTL-SM5110-LR
The TP-Link TL-SM5110-LR is a 10GBase-LR SFP+ transceiver designed for long-distance network connectivity. Featuring hot-pluggable operation, Digital Diagnostic Monitoring, and 10 km reach over single-mode fibre, it delivers reliable 10 Gbps performance for enterprise network infrastructure.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SM5110-LR |
| Availability | In Stock |
Overview
- The TP-Link TL-SM5110-LR is a single-mode SFP+ transceiver delivering 10 Gbps performance over extended distances. Designed for enterprise network environments, it supports long-range connectivity up to 10 km, making it ideal for campus networks, data centre interconnects, and infrastructure requiring reliable, high-speed fibre links.
The transceiver features hot-pluggable operation, allowing technicians to install or replace it without powering down network equipment. Digital Diagnostic Monitoring provides real-time visibility into transceiver health and performance metrics, supporting proactive network management and faster troubleshooting.
Fully compliant with SFP+ Multi-Source Agreement standards, the TL-SM5110-LR integrates seamlessly with TP-Link JetStream managed switches and other compatible equipment. Operating across a wide temperature range from 0 to 70 °C, it is built for reliable performance in diverse server room and network closet environments.
Specifications
| Data Rate | 10 Gbps |
|---|---|
| Transceiver Type | Single-mode SFP+ |
| Wavelength | 1310 nm |
| Maximum Cable Length | 10 km |
| Fibre Type | 9/125 µm single-mode |
| Port Connector | LC duplex |
| Standards | IEEE 802.3ae, TCP/IP |
| Power Supply | 3.3V |
| Digital Diagnostic Monitoring | Yes |
| SFP+ MSA Compliance | Yes |
| Hot-Pluggable | Yes |
| Operating Temperature | 0–70 °C |
| Storage Temperature | -40–85 °C |
| Operating Humidity | 10–90% RH (non-condensing) |
| Storage Humidity | 5–90% RH (non-condensing) |
| Safety & Emissions | FCC, CE |
| Dimensions (W × D × H) | 122.5 × 81.5 × 38.5 mm |
| Weight | 0.06 kg |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the maximum distance this transceiver can support?
The TL-SM5110-LR supports a maximum cable length of 10 km over single-mode fibre at 10 Gbps data rate.
Is this transceiver hot-pluggable?
Yes, the TL-SM5110-LR is hot-pluggable, allowing installation and removal without powering down your network equipment.
What is Digital Diagnostic Monitoring (DDM)?
DDM allows real-time monitoring of transceiver parameters such as temperature, laser power, and signal integrity, helping identify performance issues and support preventive maintenance.
Will this transceiver work with my existing network equipment?
The TL-SM5110-LR is SFP+ MSA compliant and works with any switch or device featuring 10G SFP+ ports, including TP-Link JetStream managed switches and third-party equipment.
What type of fibre cable does it require?
This transceiver requires single-mode fibre with a 9/125 µm specification for optimal performance over 10 km distances.
What is the warranty period?
The TL-SM5110-LR includes a 36-month (3-year) warranty from TP-Link.
Can I use this for short-distance connections?
Yes, whilst optimised for 10 km reach, the transceiver can operate over shorter distances on single-mode fibre without issues.
