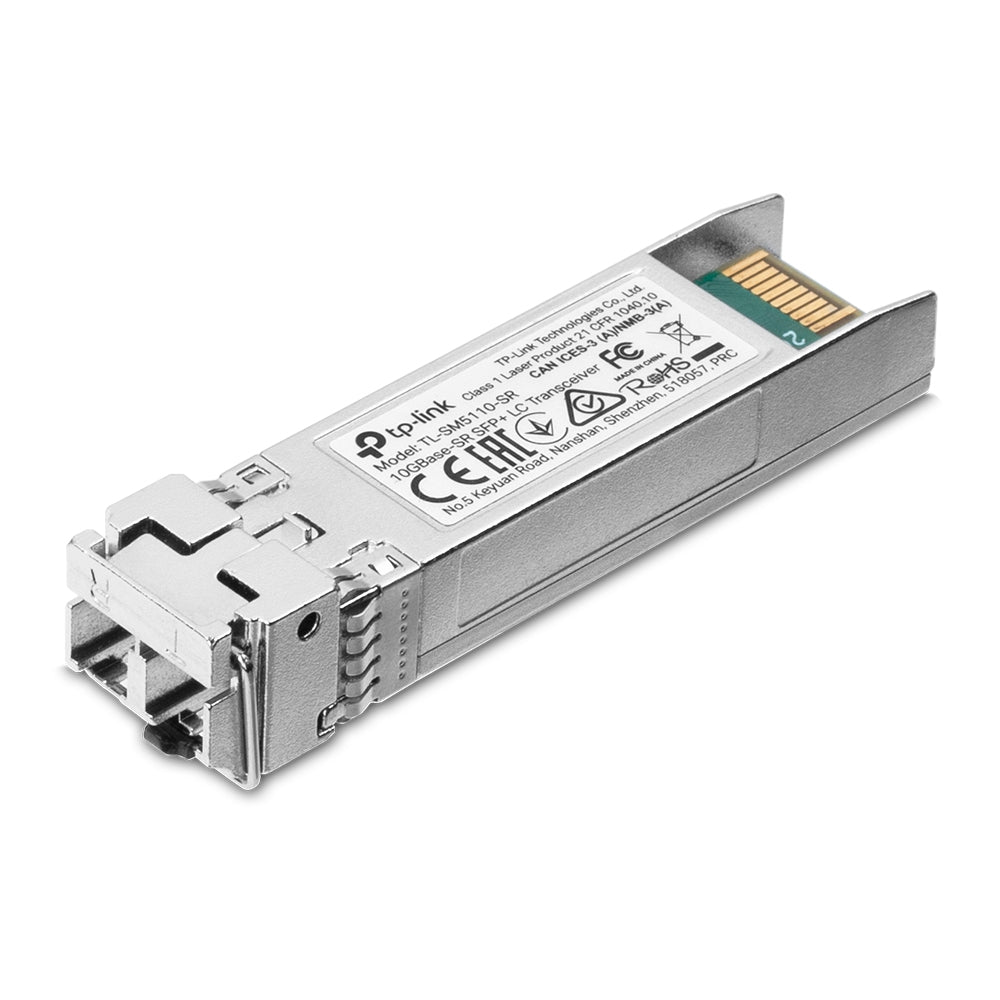

TP-Link TL-SM5110-SR 10GBase-SR SFP+ Transceiver
TP-Link TL-SM5110-SR 10GBase-SR SFP+ Transceiver
SKU:NWTL-SM5110-SR
The TP-Link TL-SM5110-SR is a 10GBase-SR SFP+ transceiver designed for high-speed Ethernet connectivity over multi-mode fibre. Featuring hot-pluggable design, digital diagnostic monitoring, and support for distances up to 300m, it delivers reliable 10Gbps performance for modern network infrastructure.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SM5110-SR |
| Availability | In Stock |
Overview
- The TP-Link TL-SM5110-SR is a 10GBase-SR multi-mode SFP+ transceiver that enables 10 Gigabit Ethernet connectivity over fibre optic cables. With support for distances up to 300 metres on OM3 fibre and 33 metres on older 62.5/125µm cable, it provides flexibility for both new installations and network expansions.
The transceiver features hot-pluggable design, allowing technicians to install or replace units without powering down equipment. Digital Diagnostic Monitoring (DDM) provides real-time visibility into transceiver status, temperature, voltage, and optical power levels—critical for maintaining network reliability and troubleshooting performance issues.
Designed to the SFP+ Multi-Source Agreement (MSA) standard, the TL-SM5110-SR is fully compatible with TP-Link JetStream switches and other enterprise-grade network equipment featuring 10G SFP+ ports. It meets FCC and CE safety and emissions standards, making it suitable for regulated environments.
Specifications
| Data Rate | 10 Gbps |
|---|---|
| Standards | IEEE 802.3ae, SFF-8472 |
| Wavelength | 850 nm |
| Fibre Type | 50/125µm or 62.5/125µm multi-mode |
| Maximum Cable Length | 300 m (OM3); 33 m (62.5/125µm) |
| Port Type | LC/UPC |
| Power Supply | 3.3 V |
| Digital Diagnostic Monitoring | Yes |
| Hot-Pluggable | Yes |
| SFP+ MSA Compatible | Yes |
| Operating Temperature | 0–70°C |
| Storage Temperature | -40–80°C |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| Safety Certifications | FCC, CE |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the maximum distance the TL-SM5110-SR can support?
The TL-SM5110-SR supports distances up to 300 metres with OM3 multi-mode fibre, and 33 metres with older 62.5/125µm fibre. Distance depends on the quality and type of fibre cable used.
Is the TL-SM5110-SR compatible with my network switch?
The TL-SM5110-SR is compatible with any switch featuring standard 10G SFP+ ports and compliant with the SFP+ MSA specification. TP-Link JetStream switches like the TL-SG3428X and TL-SG3428XMP are confirmed compatible.
What does Digital Diagnostic Monitoring (DDM) provide?
DDM allows real-time monitoring of transceiver performance parameters including temperature, voltage, optical transmit and receive power levels. This helps with network troubleshooting and preventative maintenance.
Can I replace the TL-SM5110-SR without shutting down my network?
Yes. The TL-SM5110-SR is hot-pluggable, meaning it can be safely removed and installed without powering down the switch or interrupting other connections.
What wavelength does the TL-SM5110-SR operate at?
The TL-SM5110-SR operates at 850 nm wavelength, which is standard for short-reach multi-mode 10GBase-SR applications.
What type of fibre cable do I need?
The TL-SM5110-SR supports 50/125µm or 62.5/125µm multi-mode fibre. Ensure your fibre plant matches one of these specifications for optimal performance.
