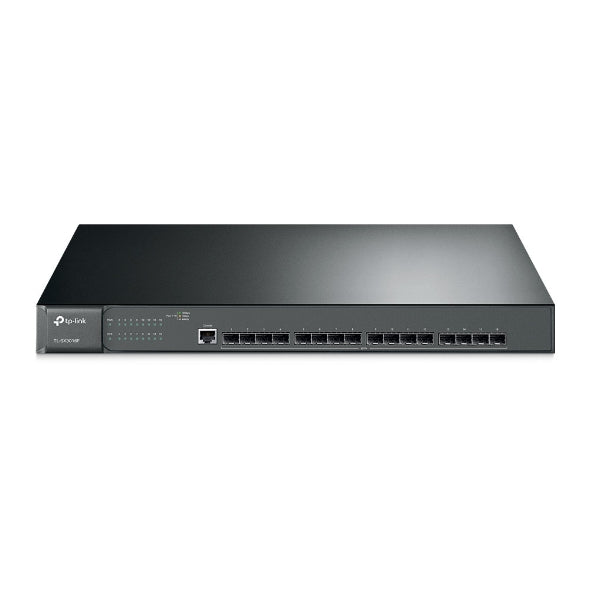

TP-Link SX3016F 16-Port 10GE SFP+ L2+ Managed Switch
TP-Link SX3016F 16-Port 10GE SFP+ L2+ Managed Switch
SKU:NWTL-SX3016F
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-SX3016F |
| Availability | In Stock |
Overview
- The TP-Link SX3016F is a professional-grade 16-port 10GE SFP+ switch built for organisations requiring high-speed, reliable network infrastructure. With a switching capacity of 320 Gbps and support for 238.08 Mpps packet forwarding, it handles demanding data centre and enterprise aggregation workloads with ease.
Integration with TP-Link's Omada SDN platform provides centralised cloud-based management, enabling IT teams to monitor, configure, and troubleshoot the network remotely. This reduces operational overhead and improves visibility across distributed infrastructure.
The fanless design eliminates cooling noise and maintenance concerns, while dual redundant power supplies ensure business continuity. Comprehensive L2+ features—including QoS, IGMP snooping, static routing, and advanced security mechanisms—support complex network requirements without requiring additional appliances.
Built for durability and stability, the SX3016F operates reliably in demanding environments and is rack-mountable for seamless integration into existing data centre layouts.
Specifications
| Ports | 16× 10GE SFP+ slots |
|---|---|
| Console | 1× RJ45, 1× Micro-USB |
| Switching Capacity | 320 Gbps |
| Packet Forwarding Rate | 238.08 Mpps |
| MAC Address Table | 32K entries |
| Packet Buffer | 24 Mbit |
| Transmission Method | Store and Forward |
| IP Interfaces | 16 |
| Static Routes | 48 (IPv4 and IPv6) |
| Jumbo Frame Support | 9 KB |
| Memory (Flash) | 32 MB |
| Memory (DRAM) | 256 MB |
| Port Standards | IEEE 802.3z (1000BASE-X), IEEE 802.3ae (10 Gigabit Ethernet) |
| Power Supply | Dual redundant fixed AC (100–240 V, 50/60 Hz) |
| Max Power Consumption | 32.74 W @ 220 V/50 Hz |
| Standby Power Consumption | 13.33 W @ 110 V/60 Hz |
| Max Heat Dissipation | 111.71 BTU/hr @ 220 V/50 Hz |
| Dimensions | 440 × 220 × 44 mm (W × D × H) |
| Installation | Rack-mountable |
| Cooling | Fanless |
| Operating Temperature | Up to 45°C |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What is the maximum throughput of the TP-Link SX3016F?
The switch delivers a switching capacity of 320 Gbps with a packet forwarding rate of 238.08 Mpps, making it suitable for high-bandwidth data centre and enterprise aggregation applications.
Does the SX3016F require cooling fans?
No. The SX3016F features a fanless design, ensuring silent operation and reducing maintenance requirements while maintaining reliability in temperatures up to 45°C.
How is the SX3016F managed and monitored?
The switch integrates with TP-Link's Omada SDN platform, providing centralised cloud-based management, remote access, and comprehensive monitoring capabilities from any location.
What security features does the SX3016F offer?
The switch includes enterprise-grade security features such as IP-MAC-Port binding, ACL (Access Control Lists), port security, and 802.1X authentication to protect your network infrastructure.
Is redundancy available for power supply?
Yes. The SX3016F is equipped with dual redundant fixed AC power supplies, ensuring continuous operation if one power source fails.
Can the SX3016F be rack-mounted?
Yes. The switch is designed for rack-mount installation, making it ideal for data centre and server room deployments.
What L2+ features are supported?
The switch supports comprehensive L2+ features including static routing (IPv4 and IPv6), QoS, IGMP snooping, and jumbo frame support up to 9 KB for demanding network environments.
