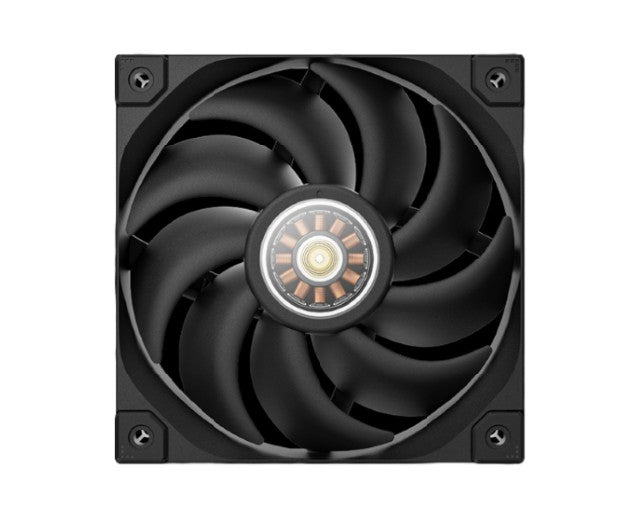

DeepCool FL12 120mm ARGB Case Fan
DeepCool FL12 120mm ARGB Case Fan
SKU:CFD-FL12
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Fan & Cooling Products |
| SKU | CFD-FL12 |
| Availability | In Stock |
Overview
- The DeepCool FL12 is a 120mm case fan engineered to balance cooling performance with low noise operation and customisable RGB lighting. With a fluid dynamic bearing, the FL12 delivers consistent airflow of 55 CFM whilst maintaining noise levels at or below 32 dB(A), making it suitable for both gaming systems and professional workstations where acoustic performance matters.
The integrated addressable RGB LED system connects via a separate 3-pin connector, enabling full lighting customisation through compatible motherboard software or standalone RGB controllers. The 4-pin PWM connection allows automatic fan speed adjustment based on system temperature, optimising cooling efficiency without requiring manual intervention.
With a rated lifespan supported by fluid dynamic bearing technology, the FL12 is designed as a long-term cooling solution. At only 1.8 W power consumption for the fan and 2.75 W for the LED system, it contributes minimal impact to overall system power draw. The 36-month warranty provides peace of mind for system builders and IT professionals.
Specifications
| Dimensions | 120×120×25 mm (L×W×H) |
|---|---|
| Weight | 166 g |
| Fan Speed | 500–2150 RPM ±10% |
| Airflow | 55 CFM |
| Air Pressure | 2.82 mmAq |
| Noise Level | ≤32 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.15 A |
| Fan Power Consumption | 1.8 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin (+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.75 W |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is the DeepCool FL12 compatible with my motherboard?
The FL12 uses standard 4-pin PWM fan connector which is compatible with most modern motherboards. The RGB LED uses a separate 3-pin 5V connector, which works with most RGB-capable motherboards. Check your motherboard's RGB header specifications before purchase.
Can I use the FL12 without RGB lighting?
Yes. The fan operates independently of the RGB LED system. You can connect only the 4-pin PWM connector and leave the RGB connector unattached. The fan will function normally for cooling.
What software do I need to control the RGB lighting?
The addressable RGB LED is controlled through your motherboard's RGB software (such as ASUS Aura, MSI Dragon Centre, or Gigabyte RGB Fusion, depending on your motherboard brand). Some users also use standalone RGB controllers for independent lighting customisation.
How quiet is the DeepCool FL12?
The FL12 operates at ≤32 dB(A), which is considered quiet for PC cooling. This makes it suitable for silent builds and office environments where noise is a concern.
What is the expected lifespan of the FL12?
The fluid dynamic bearing design is engineered for long-term reliability. DeepCool provides a 36-month manufacturer warranty covering defects. Actual lifespan depends on operating conditions and maintenance.
Can I daisy-chain multiple FL12 fans?
No. Each fan requires its own 4-pin PWM connection to the motherboard or fan hub. RGB LEDs connect separately to RGB headers or controllers. Use a fan hub or splitter if you need to connect multiple fans to a single header.
What is the power consumption of the FL12?
The fan consumes 1.8 W and the RGB LED system consumes 2.75 W, for a combined total of 4.55 W under full operation. This is a minimal draw on typical system power supplies.
