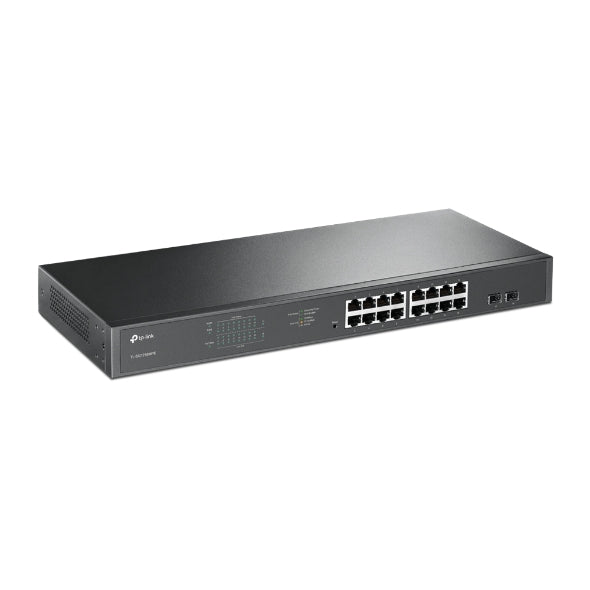

TP-Link TL-SG1218MPE 16-Port Gigabit PoE+ Smart Switch
TP-Link TL-SG1218MPE 16-Port Gigabit PoE+ Smart Switch
SKU:NWTL-SG1218MPE
The TP-Link TL-SG1218MPE is a 16-port Gigabit PoE+ smart switch designed for small to medium business networks. Featuring 192W PoE power budget, intelligent port prioritisation, and rack-mountable design, it delivers reliable network connectivity and power delivery for IP cameras and networked devices.
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG1218MPE |
| Availability | In Stock |
Overview
- The TP-Link TL-SG1218MPE is a managed Gigabit PoE+ switch purpose-built for business networks requiring both data connectivity and remote power delivery. With 16 PoE+ ports and 192W power budget, it's ideal for deploying IP surveillance cameras, wireless access points, and other PoE-powered devices across your facility without additional power infrastructure.
The switch delivers 36 Gbps switching capacity and supports IEEE 802.3at/af standards, ensuring compatibility with a wide range of networked devices. Built-in QoS and port prioritisation features guarantee consistent performance for bandwidth-sensitive applications like video monitoring and IPTV streaming. The two SFP fibre ports enable long-distance uplinks to expand your network beyond Gigabit copper limits.
Designed for professional installation, the TL-SG1218MPE fits standard 19-inch racks and includes dual cooling fans for reliable operation in network cabinets. Intelligent power management protects the switch from overload, while the 8K MAC address table ensures efficient switching of devices across your network.
Specifications
| Interface | 16 × 10/100/1000Mbps RJ45 PoE+ ports; 2 × SFP fibre ports |
|---|---|
| PoE Standards | IEEE 802.3af, IEEE 802.3at (PoE/PoE+ compliant) |
| PoE Power Budget | 192W total |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 23.8 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame Support | 9 KB |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p |
| Backup Bandwidth | 7.2 Gbps |
| Network Media | 10BASE-T, 100BASE-TX (Cat5+), 1000BASE-T (Cat5e+), 1000BASE-X (MMF/SMF) to 100m |
| Physical Dimensions | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in.) |
| Mounting | 1U 19-inch rack-mountable |
| Power Supply | 100–240V AC, 50/60 Hz |
| Max Power Consumption | 18.73W (no PoE devices); 217.22W (with 192W PoE load) |
| Max Heat Dissipation | 63.89 BTU/h (no PoE); 741.15 BTU/h (with 192W PoE) |
| Cooling | 2 × fans |
| Physical Security | Security lock included |
| Warranty | 60 months (5 years) |
Key Features
Ideal For
FAQs
Does the TL-SG1218MPE support both PoE and PoE+?
Yes. All 16 ports are PoE+ compliant and support both IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards. PoE devices receive up to 15.4W, while PoE+ devices can receive up to 30W, up to the switch's 192W total power budget.
What is the 192W power budget and how is it allocated?
The 192W power budget is the total power the switch can deliver to all connected PoE devices simultaneously. For example, you can connect up to 6 PoE+ devices at 30W each, or a mix of lower-power devices totalling 192W. The switch includes intelligent power management to prevent overload.
Can I use the SFP ports to extend my network over longer distances?
Yes. The two SFP fibre ports support 1000BASE-X connections over multimode (MMF) and single-mode (SMF) fibre, enabling network extensions beyond the 100m limit of copper cabling.
Is this switch suitable for video surveillance systems?
Yes. The TL-SG1218MPE is designed for small to medium business surveillance deployments. Its 192W PoE power budget supports multiple IP cameras, port prioritisation ensures consistent video streaming, and IGMP Snooping optimises IPTV traffic.
How does QoS help my network?
QoS (Quality of Service) prioritises traffic for bandwidth-sensitive applications like video monitoring and VoIP. Port prioritisation ensures these critical services maintain consistent performance even under high network load.
What cooling and thermal management is included?
The switch includes 2 cooling fans and is designed for rack-mount installation, allowing proper airflow in data centre environments. Maximum heat dissipation is 63.89 BTU/h without PoE load and 741.15 BTU/h with full 192W PoE load.
Is this switch easy to manage?
Yes. The TL-SG1218MPE is an Easy Smart switch with web-based management interface. It supports VLAN, port mirroring, IGMP Snooping, QoS, and loop detection without requiring advanced networking expertise.
What warranty and support is included?
The TL-SG1218MPE includes a 5-year (60-month) manufacturer warranty covering hardware defects and failures.
