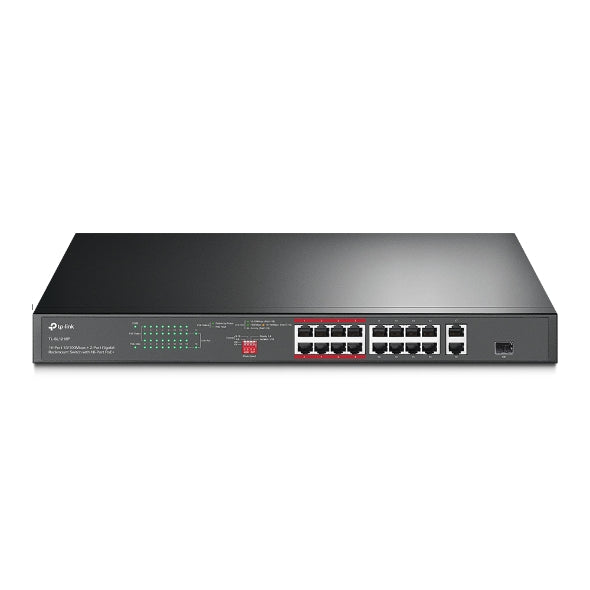

TP-Link TL-SL1218P 16-Port PoE+ Rackmount Switch
TP-Link TL-SL1218P 16-Port PoE+ Rackmount Switch
SKU:NWTL-SL1218P
The TP-Link TL-SL1218P is a 16-port PoE+ managed rackmount switch designed for surveillance, access control, and IP camera deployments. Featuring 150W total PoE budget, extended range transmission up to 250m, and priority mode for video traffic, it delivers reliable power and data distribution for growing networks.
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SL1218P |
| Availability | In Stock |
Overview
- The TP-Link TL-SL1218P is a managed rackmount switch purpose-built for organisations deploying networked cameras, access control systems, and other PoE-powered devices. With 16 PoE+ ports delivering up to 30W per port and 150W total budget, it provides sufficient power for typical IP camera installations whilst maintaining data transmission integrity.
Key to its appeal is the extended range mode, which supports PoE data and power transmission up to 250m—significantly beyond standard Ethernet limits. This eliminates the need for additional power injectors in distributed surveillance installations, reducing infrastructure costs and complexity.
The switch includes practical features for real-world deployments: priority mode ensures video traffic remains uninterrupted, isolation mode separates client traffic for security and performance, and the compact 1U rackmount form factor integrates easily into existing infrastructure. Its 5-year warranty and robust design make it suitable for both indoor and managed installations.
Specifications
| Ports | 16× PoE+ 10/100 Mbps RJ45 + 2× Gigabit RJ45 + 1× Combo Gigabit SFP |
|---|---|
| PoE Standard | IEEE 802.3at/802.3af compliant |
| PoE Power Budget | 150W total (30W maximum per port) |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame Support | 10 KB |
| Maximum Transmission Distance | 100m standard (250m in extend mode) |
| Network Media | UTP Cat 3/4/5 (10BASE-T), Cat 5/5e (100BASE-TX), Cat 5e/6+ (1000BASE-T), MMF/SMF (SFP) |
| Flow Control | IEEE 802.3x |
| Transmission Method | Store-and-Forward |
| Advanced Features | Extended range mode, priority mode, isolation mode, MAC auto-learning, auto-aging |
| Power Input | 100–240V AC, 50/60 Hz |
| Power Consumption (No PD) | 12.71W |
| Power Consumption (150W PD Connected) | 172.8W |
| Heat Dissipation (No PD) | 43.34 BTU/h |
| Heat Dissipation (150W PD Connected) | 589.25 BTU/h |
| Cooling | 2 built-in fans |
| Physical Security | Security lock included |
| Dimensions | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) |
| Form Factor | 1U rackmount |
| Warranty | 60 months (5 years) |
Key Features
Ideal For
FAQs
Can the TL-SL1218P power standard IP cameras?
Yes. The switch delivers up to 30W per PoE+ port, sufficient for most standard IP cameras, wireless access points, and VoIP phones. The 150W total budget supports multiple devices simultaneously. For high-power devices exceeding 30W, contact Hyetech for alternatives.
What is extend mode and when should I use it?
Extend mode allows PoE data and power transmission up to 250m instead of the standard 100m Ethernet limit. It is designed for distributed surveillance and access control installations where cameras or devices are located far from the switch, eliminating the need for additional power injectors.
How does priority mode improve video delivery?
Priority mode on ports 1–8 guarantees quality of service (QoS) for sensitive applications like video surveillance. It ensures video traffic is processed first, preventing congestion and frame loss during peak network usage.
What is isolation mode and why would I use it?
Isolation mode separates client traffic at the click of a button, preventing devices on different ports from communicating directly. This improves security by isolating groups of devices and can enhance performance in multi-tenant or segmented network environments.
Does this switch require configuration or special setup?
No. The TL-SL1218P is plug-and-play with no configuration required for basic operation. Advanced features like priority and isolation modes can be enabled easily through the management interface if needed.
What is the warranty period and what does it cover?
TP-Link provides a 60-month (5-year) manufacturer warranty covering defects in materials and workmanship. Contact Hyetech or TP-Link support for warranty claim details and conditions.
Can I use the SFP slot for long-distance connections?
Yes. The combo Gigabit SFP slot supports both MMF (multimode fibre) and SMF (single-mode fibre) transceivers, enabling long-distance Gigabit links for core network connections or remote site links.
Is this switch suitable for outdoor or harsh environments?
The TL-SL1218P is designed for indoor, managed environments with standard climate control. For outdoor or harsh-environment deployments, consult Hyetech about industrial-grade alternatives.
