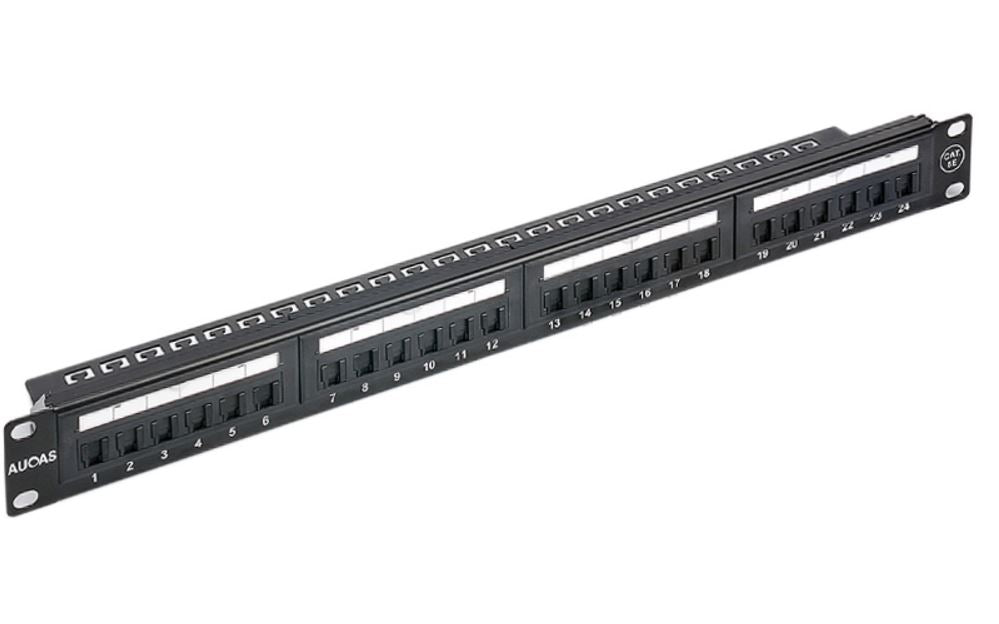

Astrotek 24-Port Cat6 UTP Patch Panel 1RU Rack Mount
Astrotek 24-Port Cat6 UTP Patch Panel 1RU Rack Mount
SKU:CBATP-PPU6-24
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Astrotek |
|---|---|
| Category | Cables |
| SKU | CBATP-PPU6-24 |
| Availability | In Stock |
Overview
- The Astrotek ATP-PPU6-24 is a professional-grade 24-port Cat6 patch panel engineered for modern data centre and enterprise network environments. Designed to exceed TIA Cat.6 performance standards, it provides reliable termination for up to 10 Gigabit network installations whilst maintaining backward compatibility with existing infrastructure.
Built for rack mount installations, the 1RU panel integrates seamlessly into 19-inch server cabinets and data network systems. The dual Krone/110 IDC termination system offers installation flexibility, while gold-plated contacts ensure optimal signal integrity and long-term reliability across high-traffic network environments.
Colour-coded wiring guides and numbered ports simplify installation and maintenance, reducing setup time and minimising configuration errors. The robust black steel construction combined with RoHS compliance makes it suitable for professional data centre deployments where performance and standards adherence are critical.
Specifications
| Ports | 24 x RJ45 |
|---|---|
| Cable Type | Cat6 UTP |
| Termination Type | Dual Krone/110 IDC |
| Wiring Standards | TIA-568A/B compatible |
| Maximum Data Rate | 10 Gigabits per second |
| Form Factor | 1RU |
| Rack Width | 19 inches |
| Contacts | Gold-plated |
| Colour | Black |
| Material | Steel |
| Features | Colour-coded wiring diagram, numbered ports, white label blanks |
| Compliance | RoHS, TIA Cat.6 standards |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Is the Astrotek ATP-PPU6-24 compatible with existing Cat5e networks?
Yes, the patch panel is backward compatible with Cat5e cabling. However, to fully utilise the 10 Gigabit capability, Cat6 cabling should be used throughout your network infrastructure.
What does TIA-568A/B compatibility mean?
It means the patch panel supports both the 568A and 568B wiring standards, the two industry-standard colour coding schemes for network cables. This flexibility allows integration with most network installations.
What is the difference between Krone and 110 IDC termination?
Both are industry-standard punch-down termination systems used to secure individual wires into the patch panel. This dual system provides flexibility for different installer preferences and existing infrastructure compatibility.
How many patch panels can be stacked in a standard server rack?
The ATP-PPU6-24 occupies 1RU of space. A standard 42RU rack can accommodate up to 42 of these panels, though your exact capacity depends on other equipment in the cabinet.
Does the patch panel require any special installation tools?
You will need a standard punch-down tool (crimp tool) to terminate the network cables into the IDC terminals. The colour-coded diagram on the back guides proper installation.
What is the warranty coverage?
The Astrotek ATP-PPU6-24 includes a 12-month manufacturer's warranty covering defects in materials and workmanship.
Can this patch panel support 10 Gigabit Ethernet?
Yes, the Cat6 UTP design supports data rates up to 10 Gigabits per second, making it suitable for modern high-speed network deployments.
