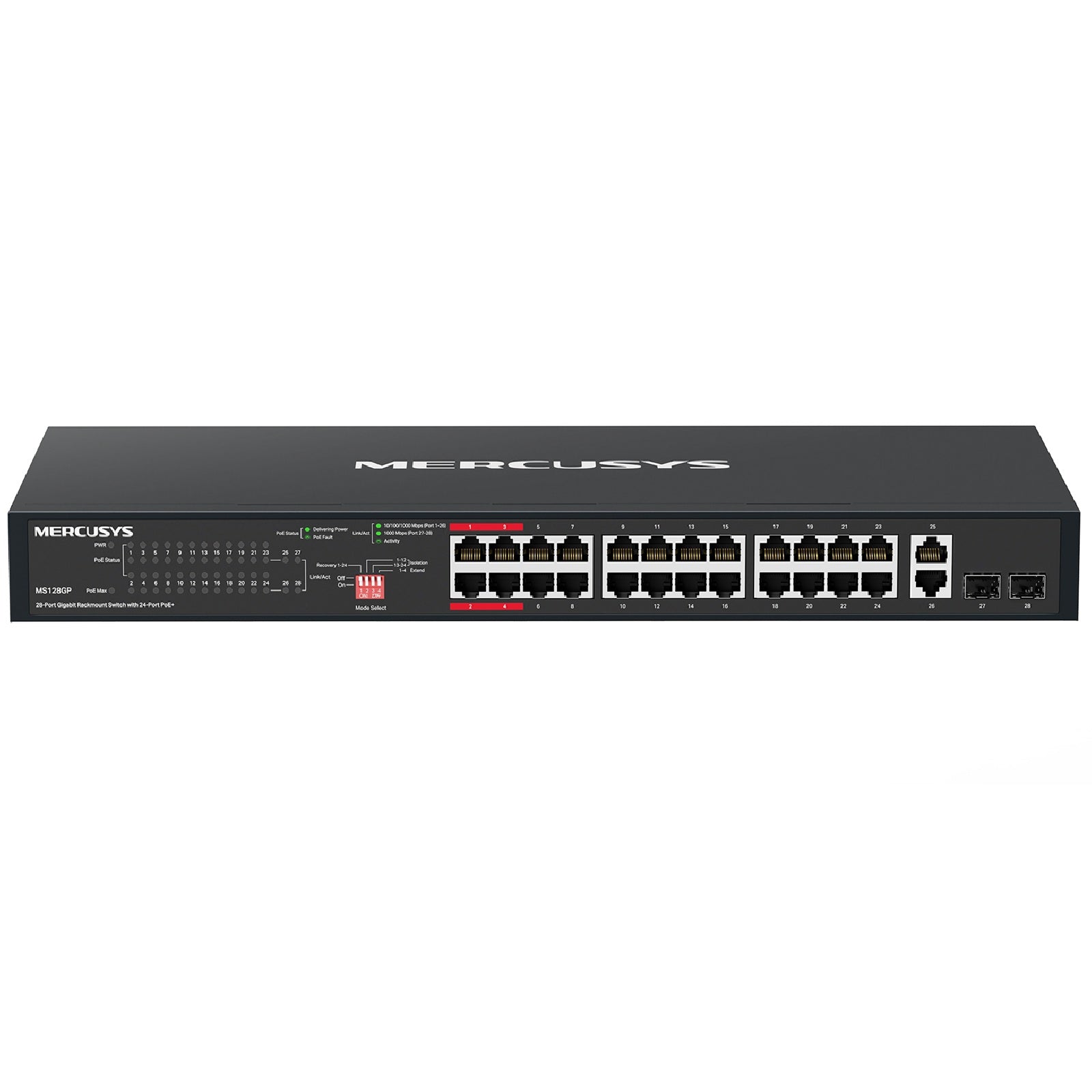

Mercusys MS128GP 28-Port Gigabit Rackmount Switch with PoE+
Mercusys MS128GP 28-Port Gigabit Rackmount Switch with PoE+
SKU:NWMS-MS128GP
The Mercusys MS128GP is a 28-port Gigabit rackmount switch designed for businesses requiring reliable network connectivity and device power delivery. Featuring 24 PoE+ ports with 30W per port, extended reach up to 250m, and intelligent traffic isolation, it delivers dependable performance for IP cameras, wireless access points, and VoIP phones.
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWMS-MS128GP |
| Availability | In Stock |
Overview
- The Mercusys MS128GP is a professional-grade 28-port Gigabit rackmount switch purpose-built for businesses deploying powered network devices across their infrastructure. With 24 dedicated PoE+ ports capable of delivering up to 30W per port and a combined PoE budget of 295W, it provides sufficient power for simultaneously running multiple IP cameras, wireless access points, and VoIP phones.
The switch's standout capability is its extended PoE transmission distance up to 250m via Extend Mode, enabling you to power devices far beyond typical Ethernet limitations. This is particularly valuable for campus networks, multi-floor buildings, or outdoor deployments where running dedicated power lines would be impractical.
Built for reliability, the MS128GP includes intelligent features like Isolation Mode to segment traffic for security and stability, Priority Mode to guarantee quality for time-sensitive applications, and PoE Auto Recovery to automatically restart devices that become unresponsive. Setup is straightforward with plug-and-play operation requiring no complex configuration.
Backed by a 5-year warranty, the MS128GP provides the dependability and feature set Australian businesses expect from enterprise networking hardware.
Specifications
| ports | 24× Gigabit PoE+ ports, 2× Gigabit uplink ports, 2× Gigabit SFP slots |
|---|---|
| poe_specifications | PoE+ per port: 30W maximum; Total PoE budget: 295W; IEEE 802.3af/at compliant |
| poe_extended_range | Up to 250m with Extend Mode |
| form_factor | Rackmount |
| interface_speed | Gigabit (1000 Mbps) |
| management_features | Isolation Mode, Priority Mode, PoE Auto Recovery, Plug-and-play operation |
| warranty | 60 months (5 years) |
Key Features
Ideal For
FAQs
Can the MS128GP power devices up to 250m away?
Yes, with Extend Mode enabled, the switch can deliver PoE power to compliant devices up to 250m away via standard Ethernet cabling, eliminating the need for separate power infrastructure for distant networked devices.
How much total power can the switch deliver across all PoE ports?
The MS128GP has a total PoE budget of 295W, allowing you to power multiple devices simultaneously. Each PoE+ port can deliver up to 30W, supporting high-power devices like PTZ cameras and access points.
Is configuration or management software required to operate the switch?
No. The MS128GP is plug-and-play and requires no configuration or central management software. It is ready to use immediately after connection.
What is Isolation Mode and when would I use it?
Isolation Mode divides traffic for specific ports, preventing communication between isolated groups. This is useful for security or stability, such as isolating a guest network or separating different departments.
What does PoE Auto Recovery do?
PoE Auto Recovery automatically reboots PoE-powered devices that drop connection or become unresponsive, reducing downtime and minimising manual intervention for devices like IP cameras or access points.
What types of devices can the MS128GP power?
The switch powers any IEEE 802.3af/at compliant PoE device, including IP cameras, wireless access points, VoIP phones, and other networked equipment designed to draw power over Ethernet.
Is the warranty valid in Australia?
Yes. Hyetech Australia provides a full 5-year warranty with support available across Australia.
