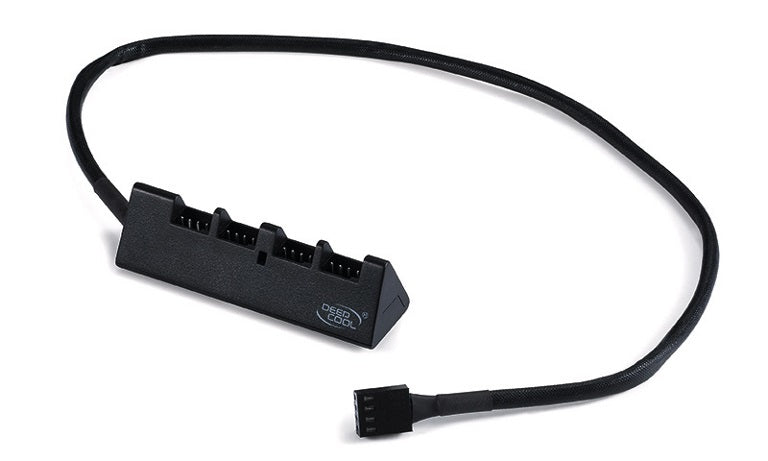

DeepCool FH-04 4-Port Fan Hub
DeepCool FH-04 4-Port Fan Hub
SKU:CAD-FH-04
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Cases & Accessories |
| SKU | CAD-FH-04 |
| Availability | Out of Stock |
Overview
- The DeepCool FH-04 is a compact 4-port fan hub that allows you to connect and manage up to four fans from a single motherboard header. This eliminates the need for multiple motherboard connections, making it ideal for systems with limited headers or complex cooling configurations.
With support for both 3-pin and 4-pin fans, the FH-04 offers broad compatibility across most PC cooling solutions. The PWM function enables intelligent fan speed control, helping optimise cooling performance and noise levels based on system demands.
Installation is straightforward thanks to the double-sided adhesive mounting method—no tools or additional brackets required. The 550mm cable provides sufficient reach to position the hub conveniently within your chassis, and integrated cable management keeps wiring organised.
Specifications
| Brand | DeepCool |
|---|---|
| Model | FH-04 |
| Product Type | 4-Port Fan Hub |
| Port Configuration | 1x 4-pin input, 4x 4-pin output |
| Fan Compatibility | 3-pin and 4-pin fans (12V) |
| PWM Support | Yes |
| Hub Cable Length | 550mm |
| Dimensions | 68 × 13 × 17.5mm |
| Weight | 22g |
| Mounting Method | Double-sided adhesive |
| Warranty Period | 12 months |
Key Features
Ideal For
FAQs
What types of fans does the DeepCool FH-04 support?
The FH-04 is compatible with both 3-pin and 4-pin fans operating at 12V, giving you flexibility in fan selection and upgrades.
Does the FH-04 support PWM fan control?
Yes, the FH-04 supports PWM function, allowing your motherboard to dynamically adjust fan speeds based on system temperature.
How many fans can I connect to this hub?
The FH-04 features 4 extension ports, allowing you to connect up to 4 fans to a single motherboard header.
Is installation difficult?
No, the FH-04 uses double-sided adhesive mounting, so you can install it without tools—simply clean the surface and stick it in place.
What is the cable length of the FH-04?
The hub strip cable is 550mm long, providing adequate reach for flexible positioning within most PC cases.
Can I use 3-pin and 4-pin fans together on the same hub?
Yes, the FH-04 is fully compatible with both 3-pin and 4-pin fans, allowing you to mix fan types as needed.
What warranty does the FH-04 come with?
The DeepCool FH-04 includes a 12-month warranty covering manufacturing defects.
