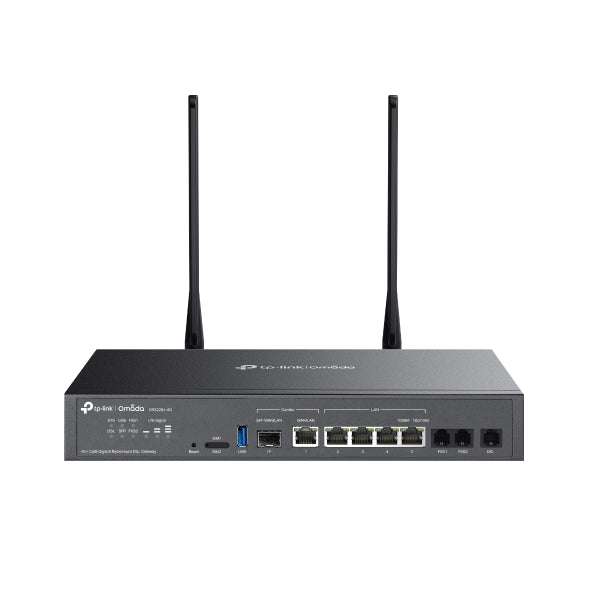

TP-Link DR3220v-4G Omada 4G+ Cat6 DSL Gateway
TP-Link DR3220v-4G Omada 4G+ Cat6 DSL Gateway
SKU:NWTL-DR3220V-4G
The TP-Link DR3220v-4G is a managed DSL gateway with integrated 4G+ Cat6 failover designed for small-to-medium businesses. Featuring load balancing across multiple WAN connections, VPN support, and centralised cloud management, it delivers reliable connectivity for distributed networks.
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-DR3220V-4G |
| Availability | In Stock |
Overview
- The TP-Link DR3220v-4G is a dual-mode gateway combining VDSL2/ADSL connectivity with 4G+ LTE failover, designed for businesses that cannot afford internet downtime. It intelligently load-balances traffic across DSL, 4G, and Gigabit Ethernet connections, ensuring optimal performance and automatic failover when primary links fail.
Built on the Omada managed networking platform, the DR3220v-4G provides centralised administration, advanced VPN options, and DPI-based security. With support for IPSec, OpenVPN, WireGuard, and SSL VPN, it suits organisations requiring secure branch-to-branch or remote access connectivity.
The device supports both rackmount and desktop installation, making it flexible for data centre, server room, or office deployments. Its dual Nano SIM slots enable redundant 4G failover, ensuring business continuity even during primary link outages.
Specifications
| Connectivity | {"DSL Port"=>"1× DSL Port (VDSL2/ADSL2+/ADSL2/ADSL compatible)", "Voice Ports"=>"2× FXS Ports", "Gigabit Ports"=>"4× Gigabit RJ45 LAN Ports", "WAN/LAN Combo"=>"1× Gigabit SFP/RJ45 Combo Port", "USB"=>"1× USB 3.0 Port"} |
|---|---|
| 4G/LTE | {"Technology"=>"4G+ Cat6 LTE", "Maximum Speed"=>"Up to 300 Mbps", "SIM Slots"=>"2× Nano SIM"} |
| DSL | {"Super VDSL (VDSL2 35b)"=>"Up to 350 Mbps", "Standard Support"=>"VDSL2/ADSL2+/ADSL2/ADSL"} |
| Management | {"Cloud Management"=>"Centralised Omada management", "VPN Protocols"=>"IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN"} |
| Security | {"DPI Support"=>"Yes"} |
| Features | {"Load Balancing"=>"Across DSL, 4G, and Ethernet WAN", "Installation"=>"Rackmount and desktop mounting", "WiFi"=>"None (wired connectivity only)"} |
| Warranty | 5 years |
Key Features
Ideal For
FAQs
Does the TP-Link DR3220v-4G include WiFi?
No, this model does not include a WiFi module. It is a wired DSL/4G gateway designed for rackmount or desktop installation in network infrastructure environments.
What happens if the primary DSL connection fails?
The gateway automatically fails over to 4G+ LTE if DSL is unavailable. With dual Nano SIM slots, you can configure redundant 4G connections for additional failover protection.
Can I manage multiple DR3220v-4G gateways remotely?
Yes, the Omada centralised cloud management platform allows you to monitor and configure multiple gateways from a single dashboard, ideal for multi-site deployments.
What VPN options are supported?
The gateway supports IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, and SSL VPN, providing flexible secure connectivity options for remote offices and branch sites.
Is DPI security included?
Yes, the DR3220v-4G includes DPI (Deep Packet Inspection) support for traffic analysis, threat detection, and application-level security controls.
Can it be installed in a rack?
Yes, the DR3220v-4G supports both rackmount and desktop installation, making it suitable for data centres, server rooms, or office environments.
What is the maximum DSL speed?
Super VDSL2 (VDSL2 35b) supports speeds up to 350 Mbps, with backward compatibility for older ADSL standards on legacy lines.
