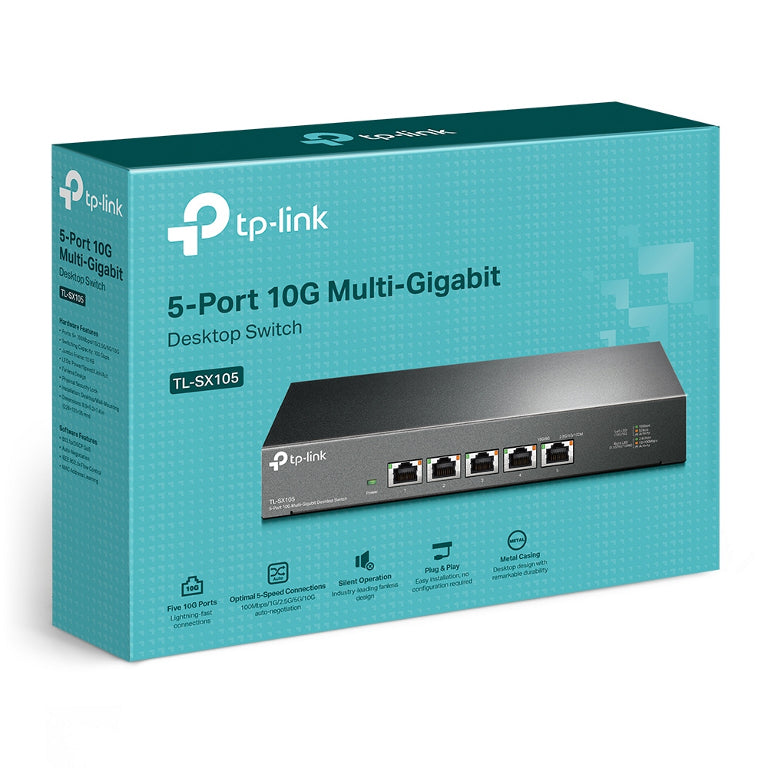

TP-Link TL-SX105 5-Port 10G Desktop Switch
TP-Link TL-SX105 5-Port 10G Desktop Switch
SKU:NWTL-SX105
The TP-Link TL-SX105 is a 5-port 10G desktop switch designed for high-speed networking. Featuring auto-negotiation across 100Mbps to 10Gbps speeds, fanless silent operation, and 100 Gbps switching capacity, it delivers enterprise-grade performance for small offices, workstations, and home networks.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SX105 |
| Availability | In Stock |
Overview
- The TP-Link TL-SX105 is a compact, high-performance 10G switch built for users who demand fast, reliable multi-gigabit networking without the noise of traditional fans. With five 10 Gbps ports and intelligent auto-negotiation, it automatically optimises connections for devices ranging from legacy 100Mbps equipment to cutting-edge 10G servers and NAS systems.
Designed for professionals, small businesses, and enthusiasts, the TL-SX105 delivers 100 Gbps switching capacity and a 74.4 Mpps packet forwarding rate, ensuring lag-free performance for demanding workloads. The fanless design eliminates cooling noise, making it ideal for quiet office environments and home setups where discretion matters.
Built with a durable metal chassis and offering both desktop and wall-mount options, the switch is ready to deploy straight from the box. Advanced software features including 802.1p/DSCP QoS and 802.3X flow control ensure traffic is handled intelligently, while the compact 226×131×35 mm footprint fits seamlessly into any workspace.
Specifications
| brand | TP-Link |
|---|---|
| model | TL-SX105 |
| product_type | 5-Port 10G Desktop Switch |
| ports | 5 × 10Gbps auto-negotiating ports (100Mbps/1G/2.5G/5G/10G) |
| switching_capacity | 100 Gbps |
| packet_forwarding_rate | 74.4 Mpps |
| mac_address_table | 32 K |
| packet_buffer_memory | 2 Mb |
| jumbo_frame | 10 KB |
| interface_features | Auto-MDI/MDIX, Auto-Negotiation |
| cooling | Fanless |
| power_supply | External 12V 2.0A adapter |
| max_power_consumption | 21.4 W |
| dimensions_mm | 226 × 131 × 35 mm |
| dimensions_in | 8.9 × 5.2 × 1.4 inches |
| weight | Not specified |
| mounting | Desktop or wall-mount |
| led_indicators | 1 system power indicator, 5 link/activity indicators (per port) |
| standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| qos_features | 802.1p/DSCP QoS, 802.3X Flow Control |
| transfer_method | Store and Forward |
| certifications | CE, FCC, RoHS |
| warranty | 60 months |
| package_contents | 5-Port 10G Switch, Power Cord, Installation Guide |
Key Features
Ideal For
FAQs
What speeds does the TL-SX105 support?
The TL-SX105 supports auto-negotiation across five speeds: 100Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps. Each port automatically detects and configures to the optimal speed for connected devices.
Can I connect older devices that don't support 10G?
Yes. The auto-negotiation feature automatically adjusts to match legacy equipment speeds. You can safely connect 100Mbps, 1G, 2.5G, or 5G devices alongside 10G equipment on the same switch.
Is the TL-SX105 fanless? Will it overheat?
Yes, the TL-SX105 is completely fanless with a professional metal casing and passive heat dissipation design. It operates silently and safely without active cooling under normal office and home use conditions.
What is the total switching capacity?
The TL-SX105 delivers 100 Gbps of total switching capacity, with a packet forwarding rate of 74.4 Mpps, ensuring simultaneous high-speed communication across all five ports.
Does it require configuration or setup?
No. The TL-SX105 is plug-and-play. Simply connect the power adapter and network cables—no technician, software installation, or configuration is needed.
Can I mount it on a wall?
Yes. The TL-SX105 supports both desktop and wall-mount installation, giving you flexibility to fit your workspace layout.
What warranty does it include?
The TL-SX105 includes a 60-month (5-year) manufacturer's warranty, providing long-term protection and support.
Is it suitable for professional environments?
Yes. The TL-SX105 is designed for small offices, workstations, and professional workflows. Its QoS features, durable metal build, and fanless operation make it ideal for demanding business environments.
