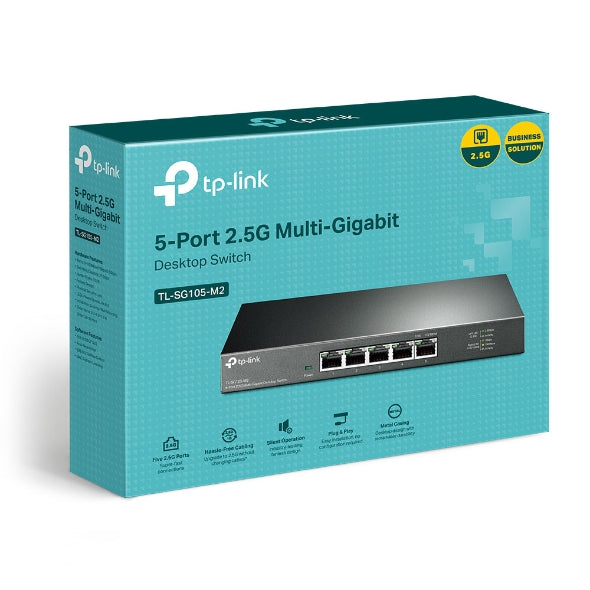

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch
TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch
SKU:NWTL-SG105-M2
The TP-Link TL-SG105-M2 is a 5-port 2.5G desktop switch designed for high-speed networking in small offices and home environments. Featuring 25 Gbps switching capacity, fanless operation, and wall-mount capability, it delivers reliable multi-gigabit connectivity for NAS, servers, and WiFi 6 access points.
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG105-M2 |
| Availability | In Stock |
Overview
- The TP-Link TL-SG105-M2 is a compact 5-port 2.5G switch that brings multi-gigabit networking to small offices and home environments without the complexity or cost of a full network overhaul. With five 2.5 Gbps ports and 25 Gbps switching capacity, it easily handles data-intensive tasks like NAS backups, 4K video streaming, and high-speed file transfers between workstations.
The fanless design ensures silent operation—critical for offices and entertainment spaces where noise matters. Setup is immediate: simply plug in the power adapter and connect your devices. No configuration, no management overhead. The metal casing and dual mounting options (desktop or wall) make it adaptable to any workspace layout.
This switch is ideal for businesses and professionals who need affordable multi-gigabit connectivity without replacing existing Cat5e or Cat6 cabling. It bridges the gap between standard 1G networks and enterprise-grade infrastructure, making it a practical choice for SMEs, creative professionals, and home power users.
Specifications
| Ports | 5 × 2.5 Gbps auto-negotiating ports with auto-MDI/MDIX |
|---|---|
| Switching Capacity | 25 Gbps |
| Packet Forwarding Rate | 18.6 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 1.5 MB |
| Jumbo Frame Support | 10 KB |
| Fan | Fanless |
| Power Supply | External 12 VDC / 1 A adapter |
| Max Power Consumption | 12.11 W |
| Max Heat Dissipation | 41.32 BTU/h |
| Dimensions | 209 × 126 × 26 mm (8.2 × 4.9 × 1.0 in) |
| LED Indicators | 1 system power indicator + 5 link/activity indicators (one per port) |
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Advanced Features | 802.3X flow control, 802.1p/DSCP QoS, store and forward switching |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -40–70 °C |
| Operating Humidity | 10–90% RH non-condensing |
| Certifications | CE, FCC, RoHS |
| Warranty | 5 years |
| Package Contents | Switch unit, power adapter, installation guide, rubber feet |
Key Features
Ideal For
FAQs
Do I need to replace my existing cables to use the TL-SG105-M2?
No. The switch supports Cat5e and Cat6 cabling and provides 2.5 Gbps performance without requiring Cat6a upgrades, reducing installation costs and hassle.
Is this switch managed or unmanaged?
The TL-SG105-M2 is an unmanaged switch. It operates with plug-and-play simplicity, requiring no configuration or management interface.
Can I mount this switch on a wall?
Yes. The switch features both desktop and wall-mounting options, making it suitable for various office and home environments.
Will the fanless design affect performance or reliability?
No. The fanless design provides silent operation while maintaining full performance. The low power consumption (12.11 W) and efficient metal casing ensure adequate cooling without mechanical noise.
What devices can I connect to this switch?
The switch is compatible with 2.5G NAS devices, servers, gaming computers, WiFi 6 access points, and any device with a 2.5 Gbps, 1 Gbps, or 100 Mbps Ethernet port. All ports support auto-negotiation.
How much bandwidth does the TL-SG105-M2 provide?
The switch delivers up to 25 Gbps of total switching capacity across all five ports, allowing simultaneous multi-gigabit connections.
What warranty does the TL-SG105-M2 come with?
The switch includes a 5-year manufacturer's warranty covering hardware defects and failures.
