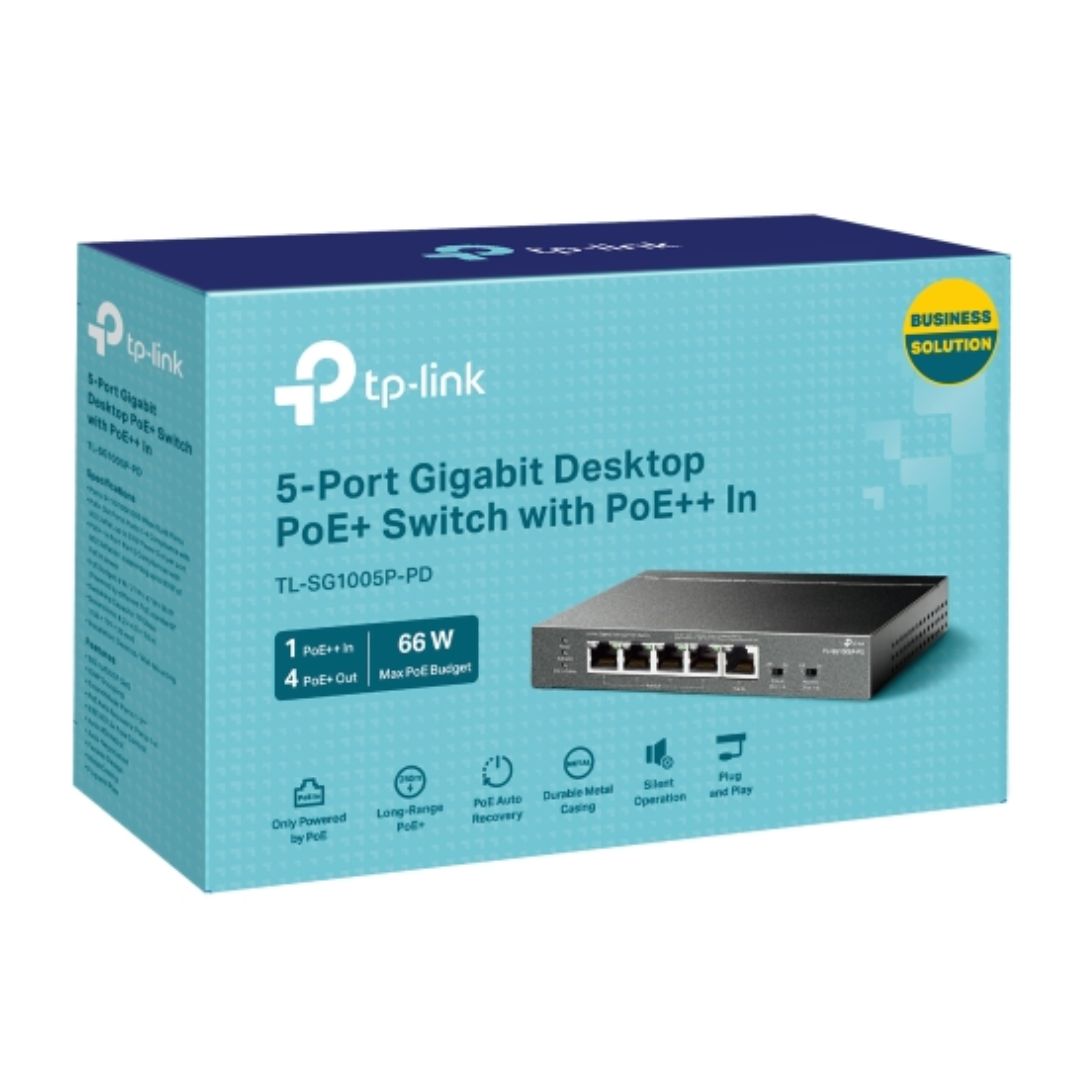

TP-Link TL-SG1005P-PD 5-Port Gigabit PoE+ Switch
TP-Link TL-SG1005P-PD 5-Port Gigabit PoE+ Switch
SKU:NWTL-SG1005P-PD
The TP-Link TL-SG1005P-PD is a 5-port gigabit PoE+ switch designed for surveillance and IoT deployments. Featuring PoE++ input with up to 66W output budget, extended range up to 250m, and fanless operation, it delivers reliable power distribution and network connectivity for business environments.
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG1005P-PD |
| Availability | In Stock |
Overview
- The TP-Link TL-SG1005P-PD is a compact yet powerful 5-port gigabit PoE+ switch purpose-built for businesses deploying surveillance systems, IoT devices, and remote network equipment. Its standout feature is the extended PoE range capability, reaching up to 250 metres with Extend Mode—essential for large-area surveillance and distributed deployments where running separate power supplies is impractical.
With support for PoE++ input and four PoE+ outputs, the switch delivers up to 66W of total power budget, accommodating multiple high-power devices simultaneously. The automatic PoE recovery function reboots unresponsive devices automatically, minimising downtime and reducing manual intervention. Built with a metal chassis and available in desktop or wall-mount configurations, it's engineered for reliability in varied business environments.
Designed for zero-touch deployment, the switch operates out of the box with no configuration needed. Its fanless design ensures completely silent operation, making it suitable for office spaces, retail environments, and other noise-sensitive locations. Backed by a comprehensive 5-year warranty, it provides long-term peace of mind for business-critical installations.
Specifications
| ports | 5× 10/100/1000 Mbps RJ45 Ethernet |
|---|---|
| poe_input | 1× PoE++ (802.3bt Type 4) |
| poe_output | 4× PoE+ (802.3bt Type 3, 802.3at, 802.3af compatible) |
| poe_power_budget | Up to 66W (Type 4), 47W (Type 3), 21W (802.3at), 9W (802.3af) |
| poe_transmission_range | Up to 250m with Extend Mode |
| casing | Metal with desktop and wall-mounting options |
| cooling | Fanless design |
| power_supply | PoE-powered only (no AC or DC supply required) |
| features | PoE auto recovery, plug-and-play setup, automatic device rebooting |
| warranty | 5 years |
Key Features
Ideal For
FAQs
What is the difference between PoE++, PoE+, and standard PoE?
PoE++ (802.3bt Type 4) supports up to 90W, PoE+ (802.3at) up to 30W, and standard PoE (802.3af) up to 15W. The TL-SG1005P-PD accepts PoE++ input and outputs PoE+ and lower standards, making it compatible with a wide range of powered devices including modern surveillance cameras, access points, and IoT equipment.
What does 'Extend Mode' mean and when should I use it?
Extend Mode allows PoE transmission to reach up to 250 metres instead of the standard 100m. Use this when deploying powered devices (cameras, sensors, access points) in remote locations beyond standard PoE range, such as warehouse perimeters, outdoor parking areas, or large campus installations.
Does the switch require a separate power supply?
No. The TL-SG1005P-PD is powered entirely through its PoE++ input port. It does not require an AC or DC power connection, simplifying installation in locations where power outlets are unavailable or difficult to access.
What is PoE auto recovery and why is it useful?
PoE auto recovery automatically reboots powered devices (PDs) that become unresponsive or lose connection. This minimises downtime for critical devices like surveillance cameras and access points by restoring connectivity without manual intervention.
Can I wall-mount this switch?
Yes. The TL-SG1005P-PD includes both desktop and wall-mounting options, allowing flexible placement in server rooms, network cabinets, or outdoor enclosures depending on your installation requirements.
Is the switch suitable for outdoor installations?
The switch features a durable metal casing designed for various environments. However, for direct outdoor exposure, confirm with your system integrator whether additional weatherproofing or enclosure is needed, as the specifications do not explicitly detail outdoor rating (IP rating not provided).
What's included in the 5-year warranty?
The 5-year manufacturer warranty covers defects in materials and workmanship. Refer to the full warranty terms for coverage details, exclusions, and claim procedures. Contact Hyetech Australia for warranty registration and support.
