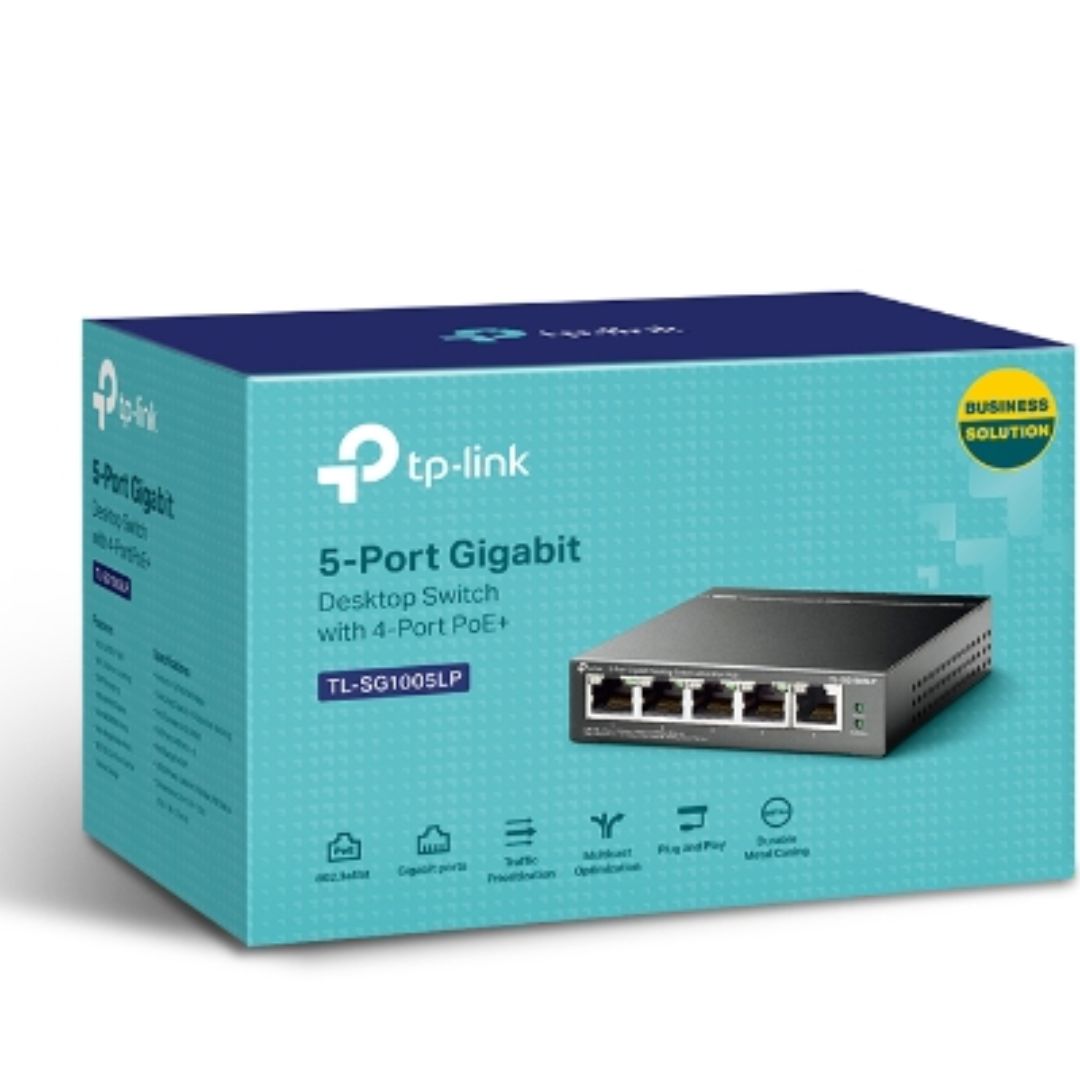

TP-Link TL-SG1005LP 5-Port Gigabit Switch with PoE+
TP-Link TL-SG1005LP 5-Port Gigabit Switch with PoE+
SKU:NWTL-SG1005LP
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG1005LP |
| Availability | In Stock |
Overview
- The TP-Link TL-SG1005LP delivers professional-grade switching in a compact desktop format. With five gigabit ports and integrated PoE+ on four of them, it enables you to expand your network and power compatible devices using a single Ethernet cable, eliminating the need for separate power infrastructure.
Designed for simplicity, the TL-SG1005LP requires no configuration or installation. Its fanless design operates silently, making it suitable for offices, meeting rooms, and installation sites. The 10 Gbps switching capacity ensures fast, collision-free data transfer, whilst 802.1p/DSCP QoS prioritises time-sensitive traffic such as VoIP and video streaming.
IEEE 802.3af/at compliance means it works with a broad range of powered devices, from IP cameras and wireless access points to VoIP phones and IoT sensors. The 40W total PoE budget flexibly supports multiple devices simultaneously, and the compact form factor fits neatly on desks or in network cabinets.
Specifications
| Ports | 5× 10/100/1000 Mbps RJ45 Ethernet |
|---|---|
| PoE Ports | Ports 1–4 (IEEE 802.3af/at compliant) |
| PoE Power Budget | 40W total; up to 30W per port |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame Support | 16 KB |
| QoS | 802.1p/DSCP |
| Flow Control | IEEE 802.3x |
| Auto-Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Network Media | UTP Cat. 3/4/5 (10BASE-T), Cat. 5/5e (100BASE-TX), Cat. 5/5e/6+ (1000BASE-T); maximum 100m per segment |
| Power Supply | External 53.5 VDC / 0.81 A adapter |
| Max Power Consumption | 4.12W (no PD), 47.5W (with 40W PD) |
| Max Heat Dissipation | 14.05 BTU/h (no PD), 161.98 BTU/h (with 40W PD) |
| Dimensions | 99.8 × 98 × 25 mm (W × D × H) |
| Cooling | Fanless |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -40–70 °C |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| Certifications | FCC, CE, RoHS |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
Can I power multiple devices at once with this switch?
Yes. The TL-SG1005LP provides 40W total PoE power across its four PoE ports, allowing you to power multiple IEEE 802.3af/at compliant devices simultaneously. Each port can deliver up to 30W individually.
Is this switch suitable for IP cameras?
Yes. The PoE+ support and IEEE 802.3af/at compliance make it ideal for powering and connecting IP cameras, particularly in small installations or as part of a larger network expansion.
Do I need to configure the switch before using it?
No. The TL-SG1005LP is plug-and-play. Simply connect the power adapter and Ethernet cables; no configuration or special software is required.
What is the maximum cable length for connections?
The maximum recommended cable length is 100 metres per segment for all speed standards (10 Mbps, 100 Mbps, and 1000 Mbps) using standard Ethernet cable.
Is this switch fanless?
Yes. The switch operates with no internal fan, ensuring silent operation and minimal maintenance. This makes it suitable for quiet office environments.
What devices are compatible with the PoE ports?
Any device that complies with IEEE 802.3af or IEEE 802.3at standards, including IP cameras, wireless access points, VoIP phones, and PoE-powered sensors.
Can I use standard Ethernet cables with this switch?
Yes. The switch supports standard UTP and STP Ethernet cables across all speed standards. It includes auto-negotiation and auto MDI/MDIX for compatibility with straight-through and crossover cables.
