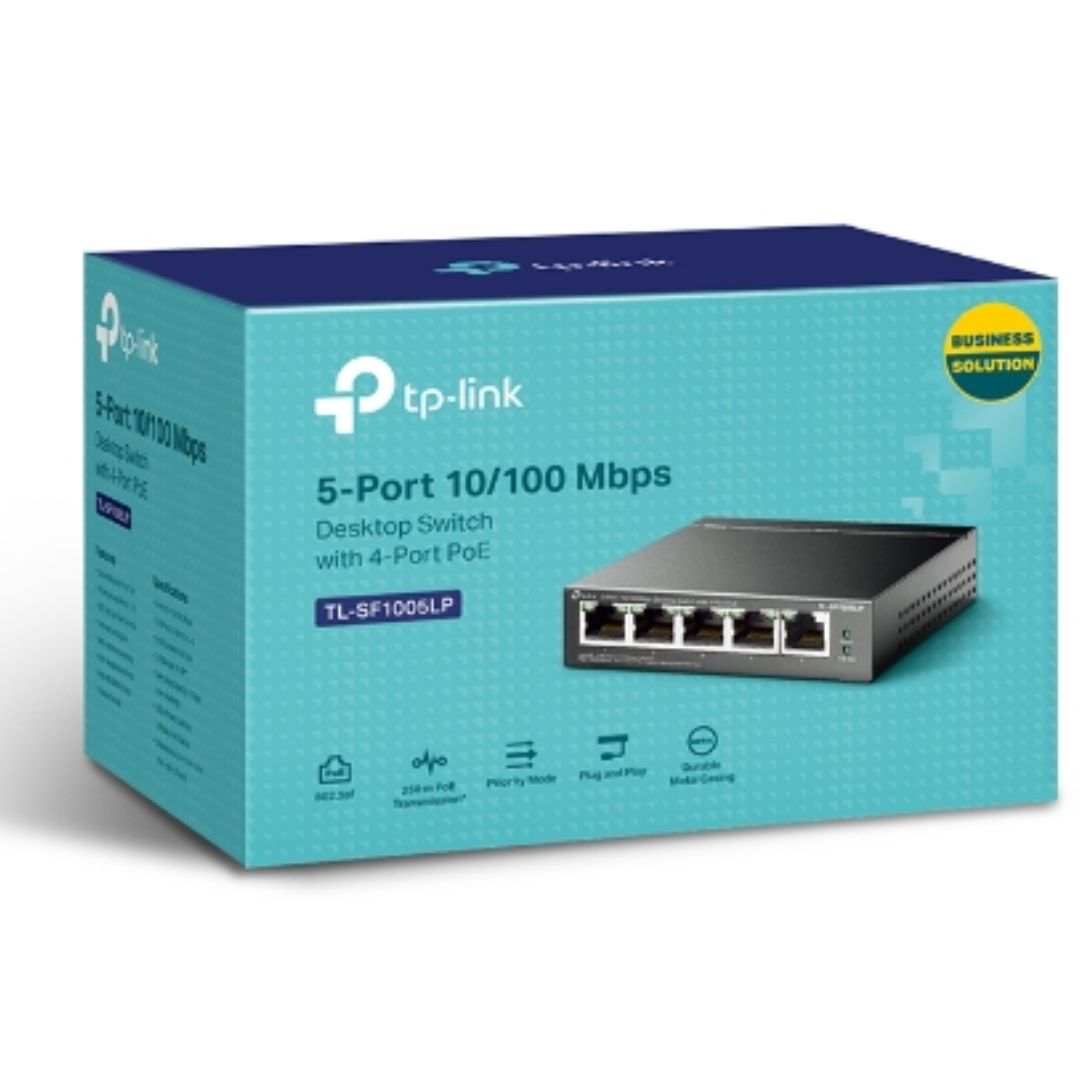

TP-Link TL-SF1005LP 5-Port Network Switch with PoE
TP-Link TL-SF1005LP 5-Port Network Switch with PoE
SKU:NWTL-SF1005LP
The TP-Link TL-SF1005LP is a 5-port desktop network switch with integrated Power over Ethernet. Featuring 4 PoE ports delivering up to 41W, plug-and-play operation, and 1Gbps switching capacity, it simplifies deployment of IP cameras, VoIP phones, and wireless access points without additional cabling.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SF1005LP |
| Availability | In Stock |
Overview
- The TP-Link TL-SF1005LP is a compact 5-port network switch designed to simplify the deployment of PoE-powered devices in small business and office environments. With 4 dedicated PoE ports delivering up to 41W of power, it eliminates the need for separate power supplies when installing IP cameras, wireless access points, and VoIP phones—reducing installation costs and cable clutter.
The switch operates entirely plug-and-play with no configuration required, making it ideal for businesses without dedicated IT staff. Its 1Gbps switching capacity and Store-and-Forward transmission method ensure reliable data handling, while auto-negotiation and automatic MDI/MDIX detection adapt to any connected device. The extended transmission range of up to 250m allows devices to be positioned further from the switch in larger deployments.
Built for reliability, the TL-SF1005LP is fanless, compact (100×98×25mm), and operates efficiently with minimal power consumption (1.9W with no devices connected). Priority mode on ports 1–2 ensures that time-sensitive applications receive guaranteed bandwidth. With a 5-year warranty, FCC and CE certification, and support for IEEE 802.3af standards, it's a cost-effective choice for growing networks.
Specifications
| Ports | 5× 10/100 Mbps RJ45 ports |
|---|---|
| PoE Ports | Ports 1–4 (4× total) |
| PoE Standard | IEEE 802.3af compliant |
| PoE Power Supply | 41 W total |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame Support | 2 KB |
| Transmission Method | Store-and-Forward |
| Cable Compatibility | UTP Cat3/4/5, EIA/TIA-568 100Ω STP |
| Maximum Cable Length | 100 m (standard); 250 m (Extend Mode) |
| Auto-Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Flow Control | IEEE 802.3x (full-duplex), Backpressure (half-duplex) |
| MAC Auto-Learning | Yes |
| Priority Mode | Yes (Ports 1–2) |
| Extend Mode | Yes (Ports 1–4) |
| Power Supply | External adapter (53.5V DC / 0.81A) |
| Power Consumption (No PD) | 1.9 W |
| Power Consumption (With 41W PD) | 47 W |
| Heat Dissipation (No PD) | 6.48 BTU/h |
| Heat Dissipation (With 41W PD) | 160.27 BTU/h |
| Cooling | Fanless |
| Physical Security | Lock support |
| Dimensions | 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in) |
| Operating Temperature | 0–40°C |
| Storage Temperature | -40–70°C |
| Operating Humidity | 10–90% RH (non-condensing) |
| Storage Humidity | 5–90% RH |
| Certifications | FCC, CE, RoHS |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
Can the TP-Link TL-SF1005LP power devices beyond 100 metres?
Yes. In Extend Mode, the switch can transmit both data and power up to 250 metres, enabling deployment of PoE devices further from the switch. Standard mode supports up to 100 metres.
How much power can the switch supply to each PoE port?
The switch provides up to 41W total across all 4 PoE ports (ports 1–4). Power is allocated dynamically depending on the connected devices' requirements (IEEE 802.3af compliant, up to 15.4W per port).
Is configuration required to use the TL-SF1005LP?
No. The switch is plug-and-play with no configuration needed. It auto-negotiates speed, automatically detects cable types (MDI/MDIX), and begins operating immediately upon power-up.
What devices are compatible with the PoE ports?
The switch works with any IEEE 802.3af compliant powered device, including IP cameras, wireless access points, VoIP phones, and other PoE-enabled network equipment rated for 15.4W or less.
What is Priority Mode and when would I use it?
Priority Mode elevates ports 1–2 to guarantee bandwidth for time-sensitive applications such as VoIP phones or critical network services, ensuring call quality and performance aren't affected by other traffic.
Can the switch handle longer cable runs than standard Ethernet?
Yes. Standard 10/100 Mbps connections support up to 100 metres with appropriate UTP or STP cabling. Extend Mode on ports 1–4 can reach up to 250 metres for both data and power.
Is the TL-SF1005LP suitable for outdoor installations?
The switch is rated for 0–40°C operating temperature and is not sealed for outdoor use. For outdoor applications, it should be installed in a weatherproof enclosure or cabinet.
What warranty does the TL-SF1005LP include?
The switch includes a 60-month (5-year) manufacturer warranty covering defects in materials and workmanship.
