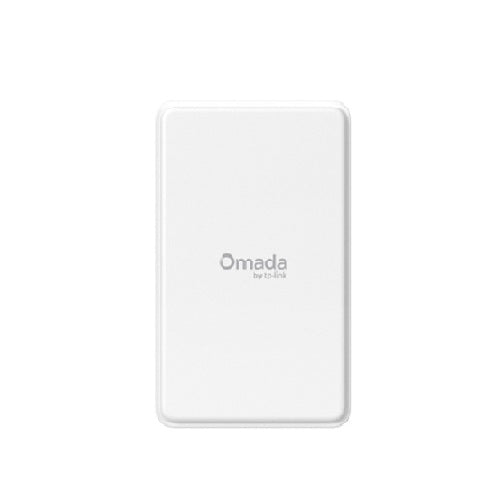

TP-Link ER701-5G Outdoor 5G Gateway with Dual SIM
TP-Link ER701-5G Outdoor 5G Gateway with Dual SIM
SKU:NWTL-ER701-5G-OUTDOOR
The TP-Link ER701-5G is an outdoor 5G gateway designed for enterprise branch locations and remote sites. Featuring dual nano SIM support, PoE power input, 2.5G Ethernet, and Omada cloud management, it delivers reliable connectivity for businesses requiring redundancy and flexible deployment.
Couldn't load pickup availability
- See our return policy
- 3 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - SMB |
| SKU | NWTL-ER701-5G-OUTDOOR |
| Availability | Out of Stock |
Overview
- The TP-Link ER701-5G is a purpose-built outdoor 5G gateway that provides enterprise-class connectivity for branch offices, remote sites, and locations where traditional fixed broadband is unavailable or unreliable. Supporting dual nano SIM cards with automatic failover, it ensures continuous connectivity even if one carrier network fails.
Powered by PoE (Power over Ethernet), the ER701-5G eliminates the need for dedicated power infrastructure, simplifying outdoor deployment. The 2.5G Ethernet port supports high-speed backhaul to your core network or failover link, whilst the integrated firewall, static routing, OSPF, VLAN support, and NAT capabilities deliver enterprise-grade network control.
Integration with TP-Link's Omada cloud management platform enables centralised monitoring, configuration, and troubleshooting across all your branch sites from a single dashboard. The weatherproof enclosure, multiple mounting options, and included waterproof kit ensure reliable performance in challenging outdoor environments.
Specifications
| Device Type | Outdoor 5G Gateway / Router |
|---|---|
| 5G NR Bands | n1, n3, n5, n7, n8, n20, n26, n28, n38, n40, n41, n75, n76, n77, n78 |
| 5G NR Frequencies | 700, 800, 850, 900, 1500, 1800, 2100, 2300, 2500, 2600, 3500, 3700 MHz |
| 5G SA Download Speed | 7.01 Gbps |
| 5G SA Upload Speed | 1.25 Gbps |
| 5G NSA Download Speed | 4.5 Gbps |
| 5G NSA Upload Speed | 730 Mbps |
| 4G LTE FDD Bands | B1, B3, B5, B7, B8, B20, B26, B28, B32 |
| 4G LTE TDD Bands | B38, B40, B41, B42, B43 |
| 4G LTE Download Speed | 1.6 Gbps |
| 4G LTE Upload Speed | 211 Mbps |
| 3G WCDMA Bands | B1, B5, B8 |
| SIM Configuration | Dual nano SIM slots with failover support |
| Ethernet Ports | 1 × 2.5G RJ45 |
| Ethernet Speed Support | 10 / 100 / 1000 / 2500 Mbps |
| PoE Input | 802.3at (42–57 V, 0.6 A) and Passive 48 V |
| Wireless Standard | 802.11 b/g/n (2.4 GHz only) |
| Wireless Speed | 150 Mbps max |
| Wireless Security | WPA / WPA2-Personal |
| Wireless SSIDs | 1 SSID |
| Routing Protocols | Static routing, OSPF (Standalone) |
| VLAN Support | 802.1Q Bridge VLAN with Multi-Net interfaces |
| Firewall Features | Stateful ACL, Multi-Net NAT, Virtual server, Port triggering, NAT-DMZ |
| ALG Support | FTP, SIP, IPSec, PPTP, H.323 |
| Additional Features | UPnP, TX power control, Auto channel selection |
| Memory | 2 GB LPDDR4x |
| Storage | 4 GB eMMC |
| Max Power Consumption | 15.3 W |
| Dimensions | 183 × 110 × 36 mm |
| Mounting Options | Wall, pole, window mount |
| Environmental Protection | Waterproof kit included |
| Warranty | 3 years |
Key Features
Ideal For
FAQs
What is the difference between 5G SA and 5G NSA?
5G Standalone (SA) is a fully independent 5G network with higher download speeds (7.01 Gbps) and lower latency. 5G Non-Standalone (NSA) relies on existing 4G infrastructure and delivers 4.5 Gbps download speeds. The ER701-5G supports both modes, automatically selecting the best available based on network coverage in your location.
Can the ER701-5G work with PoE power?
Yes. The ER701-5G supports both 802.3at PoE (42–57 V, 0.6 A) and passive 48 V power input, eliminating the need for dedicated outdoor power infrastructure. This simplifies installation and reduces cabling costs.
Does it support automatic failover between SIM cards?
Yes. The dual nano SIM slots include automatic failover support, ensuring continuous connectivity if one carrier network becomes unavailable. This is ideal for mission-critical branch office and remote site deployments.
What is Omada cloud management?
Omada is TP-Link's centralised network management platform that allows you to monitor, configure, and troubleshoot the ER701-5G and other Omada devices from a single cloud-based dashboard. It's ideal for organisations managing multiple branch locations.
What mounting options are available for outdoor installation?
The ER701-5G supports wall, pole, and window mounting. A waterproof kit is included to protect the device in harsh weather conditions.
What is the maximum transmission power consumption?
The maximum power consumption is 15.3 W, which is well within the PoE power budget, ensuring reliable operation even in power-constrained outdoor environments.
Is the ER701-5G suitable for Australia?
Yes. The ER701-5G supports 5G and 4G LTE bands used by Australian carriers. It is certified for use in Australia and includes a 3-year warranty from TP-Link.
