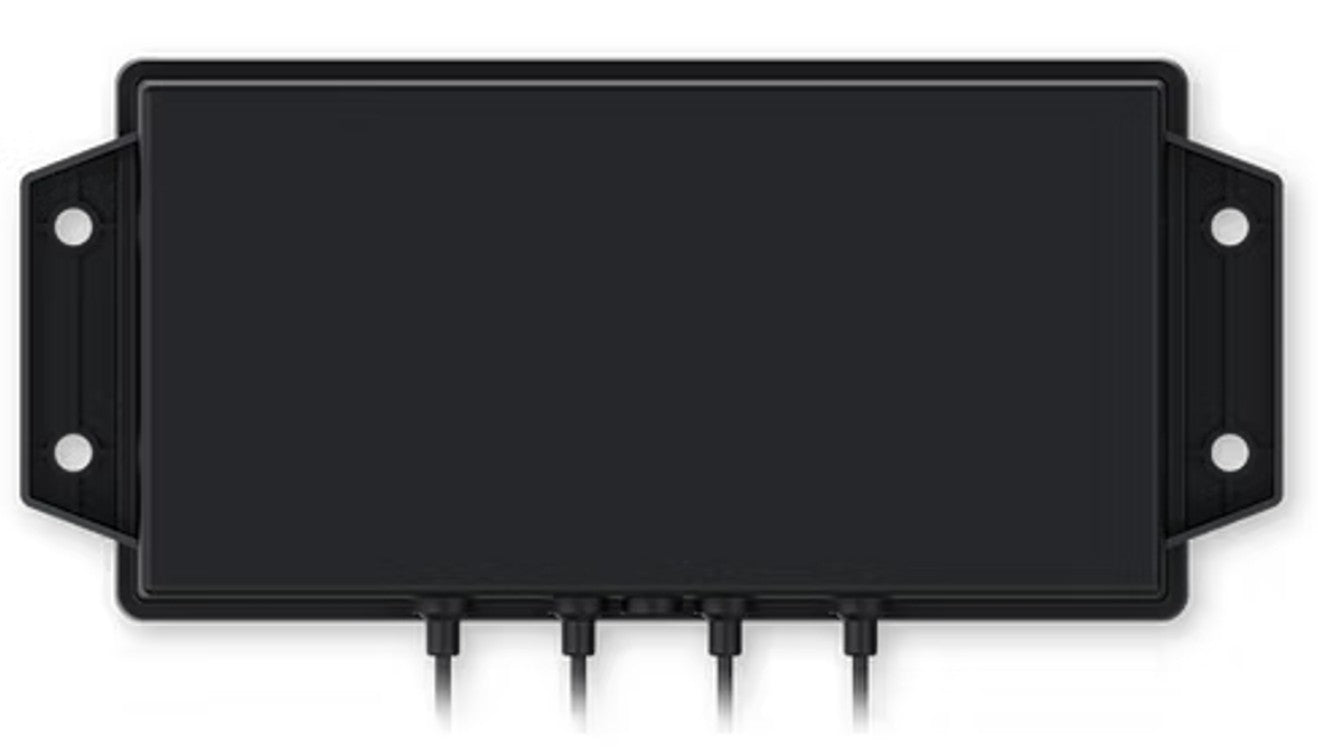

Teltonika PR1KC540 5G Combo Mobile MIMO Antenna
Teltonika PR1KC540 5G Combo Mobile MIMO Antenna
SKU:NHT-PR1KC540
The Teltonika PR1KC540 is a 5G combo mobile MIMO antenna designed for industrial IoT and mobile connectivity applications. Featuring IP67 ingress protection, omni-directional radiation, and four SMA connectors, it delivers reliable multi-band coverage for mission-critical deployments.
Couldn't load pickup availability
- See our return policy
- 24 Manufacturer Warranty
Product Information
| Brand | Teltonika |
|---|---|
| Category | IoT / LTE |
| SKU | NHT-PR1KC540 |
| Availability | In Stock |
Overview
- The Teltonika PR1KC540 is a professional-grade 5G combo mobile MIMO antenna purpose-built for industrial IoT and telecommunications applications. With support for 5G, LTE, and earlier mobile standards across multiple frequency bands, it provides comprehensive multi-band coverage in a single antenna solution.
Designed for reliability in harsh conditions, the antenna features IP67 ingress protection, UV-resistant materials, and an extended operating temperature range from -40°C to +80°C. The four independent SMA connectors enable MIMO functionality, delivering improved signal quality and data throughput for critical applications.
The antenna's omni-directional radiation pattern ensures consistent coverage without directional alignment, whilst the 3-metre LMR100 cable and flexible mounting options (M6 screw or adhesive) accommodate a wide range of deployment scenarios. This makes it ideal for fixed installations on industrial equipment, vehicles, and infrastructure where robust, all-weather connectivity is essential.
Specifications
| manufacturer | Teltonika |
|---|---|
| model | PR1KC540 |
| product_type | 5G Mobile MIMO Antenna |
| antenna_type | MIMO |
| frequency_bands | 600–960 MHz, 1427–2700 MHz, 3300–4200 MHz, 4400–5000 MHz |
| polarisation | Linear |
| radiation_pattern | Omni-directional |
| gain | ≤4 dBi |
| vswr | ≤2.5 |
| impedance | 50 Ω |
| connectors | 4 × SMA Male |
| cable_type | 4 × LMR100 |
| cable_length | 3000 mm |
| mounting_type | M6 Screw or Adhesive |
| enclosure_material | Polycarbonate / Polycarbonate + ABS |
| weight | 400 g |
| operating_temperature | -40°C to +80°C |
| operating_humidity | ≤90% |
| ingress_protection_rating | IP67 |
| uv_resistant | Yes |
| rohs_compliant | Yes |
| warranty_months | 24 |
Key Features
Ideal For
FAQs
What frequency bands does the Teltonika PR1KC540 antenna support?
The antenna supports multiple frequency bands: 600–960 MHz, 1427–2700 MHz, 3300–4200 MHz, and 4400–5000 MHz, covering 5G, LTE, and earlier mobile standards for comprehensive multi-band connectivity.
Is the PR1KC540 suitable for outdoor installation?
Yes. The antenna is IP67 rated, UV resistant, and rated for operating temperatures from -40°C to +80°C, making it suitable for demanding outdoor and industrial environments.
How many connectors does this antenna have?
The antenna has four SMA male connectors, enabling MIMO operation for improved signal quality and data throughput.
What mounting options are available?
The antenna supports two mounting methods: M6 screw mounting for permanent installations and adhesive mounting for applications where drilling is not feasible.
What is the cable length and type?
The antenna includes 3 metres of LMR100 low-loss coaxial cable per connector, minimising signal loss over the connection distance.
What warranty and compliance certifications apply?
The antenna includes a 24-month manufacturer warranty and is RoHS compliant, meeting international environmental standards.
What is the radiation pattern of this antenna?
The antenna features an omni-directional radiation pattern, providing consistent 360° coverage without requiring directional alignment.
