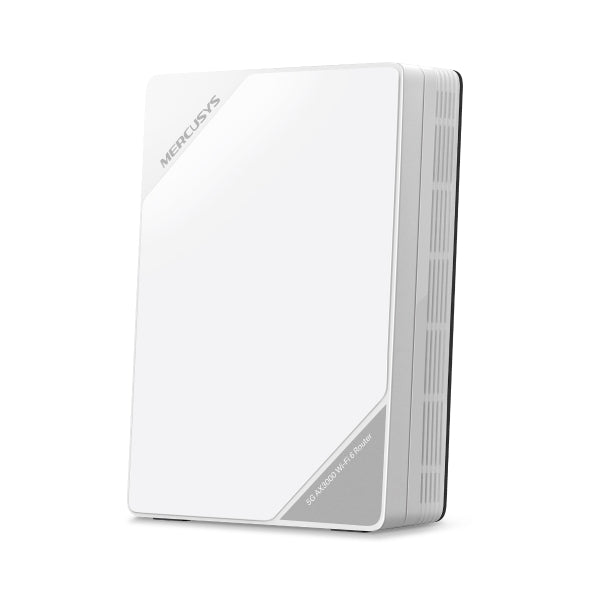

Mercusys MB520-5G 5G AX3000 Wireless Dual Band Router
Mercusys MB520-5G 5G AX3000 Wireless Dual Band Router
SKU:NWMS-MB520-5G
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWMS-MB520-5G |
| Availability | In Stock |
Overview
- The Mercusys MB520-5G is a hybrid 5G and Wi-Fi 6 router engineered to convert mobile 5G signals into fast, stable wireless connectivity. With AX3000 dual-band performance and support for up to 256 devices, it functions as both a primary internet gateway and network extension point.
Its 2.5 Gbps WAN/LAN port provides flexible wired connectivity, whilst the built-in phone port enables simultaneous voice and data services via VoLTE. The router integrates seamlessly with EasyMesh-compatible devices, eliminating dead zones across larger premises without requiring reconfiguration when moving between access points.
Designed for businesses and organisations seeking redundant connectivity, the MB520-5G combines 5G independence with traditional broadband flexibility. The MERCUSYS app enables remote management, allowing IT teams to monitor and adjust settings from any location. Pre-tested SIM card compatibility ensures reliable operation without complex configuration.
Specifications
| Brand | Mercusys |
|---|---|
| Model | MB520-5G |
| Manufacturer | TP-LINK |
| Product Type | 5G Wireless Router |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi Speed (5 GHz) | 2402 Mbps |
| Wi-Fi Speed (2.4 GHz) | 574 Mbps |
| Total Wi-Fi Speed | AX3000 |
| 5G Download Speed | Up to 4.67 Gbps |
| Maximum Connected Devices | 256 |
| WAN/LAN Port Speed | 2.5 Gbps |
| Antenna Configuration | Internal and external antennas |
| Mesh Technology | EasyMesh compatible |
| Phone Port | Yes (VoLTE support) |
| Network Management | MERCUSYS mobile app (iOS/Android) |
| SIM Card Compatibility | Pre-tested and field-validated |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
Can the MB520-5G work without a 5G connection?
Yes. The 2.5 Gbps WAN/LAN port accepts standard Ethernet, allowing the router to function as a conventional Wi-Fi 6 access point if 5G is unavailable.
How many devices can connect simultaneously?
The MB520-5G supports up to 256 Wi-Fi device connections, suitable for busy offices and multi-user households.
Is this router compatible with mesh networking?
Yes. The MB520-5G is EasyMesh compatible and works with EasyMesh routers and range extenders to create seamless whole-home coverage without dropped connections.
Can I use a landline phone with this router?
Yes. The built-in phone port supports VoLTE (Voice over LTE), enabling simultaneous landline calls and internet access on the same 5G connection.
What setup is required for the SIM card?
Minimal configuration. Simply insert a compatible SIM card and the router will establish connection. SIM compatibility has been pre-tested and validated through field deployment.
Can I manage the router remotely?
Yes. The MERCUSYS mobile app (available for iOS and Android) allows you to set up, monitor, and manage Wi-Fi settings from anywhere.
What is the warranty period?
The MB520-5G includes a 24-month manufacturer warranty, covering hardware defects and malfunctions.
