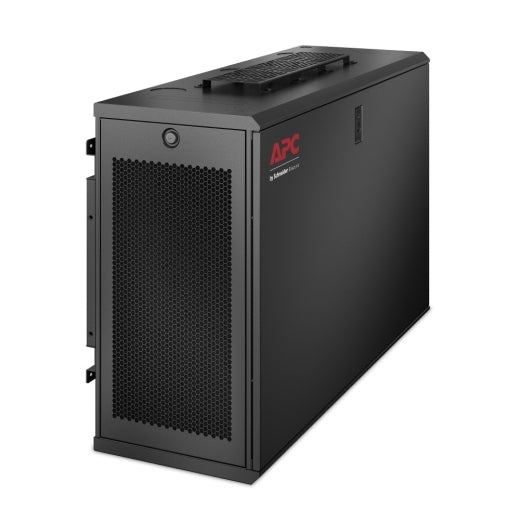

APC NetShelter AR106VI 6U Wallmount Rack Enclosure
APC NetShelter AR106VI 6U Wallmount Rack Enclosure
SKU:UPA-AR106VI
The APC NetShelter AR106VI is a 6U low-profile wallmount rack enclosure designed for server and network equipment installation. Featuring 230V input, 19-inch standard rack width, and robust 113.4 kg load capacity, it delivers secure equipment housing for IT infrastructure in compact spaces.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPA-AR106VI |
| Availability | In Stock |
Overview
- The APC NetShelter AR106VI is a purpose-built 6U wallmount rack enclosure designed to centralise and protect server and network equipment in compact environments. Its low-profile design makes it ideal for small to medium businesses seeking professional equipment organisation without requiring dedicated server room space.
Built to industry standard 19-inch rack specifications, the enclosure accommodates a wide range of compatible APC and third-party equipment. The 113.4 kg load capacity (both dynamic and static) and 76.2 cm mounting depth support server-grade equipment while maintaining safety and stability. Active airflow of 103.83 l/s supports thermal management for continuous operation.
The 230V input with standard IEC 60320 C13 connection integrates seamlessly with Australian power infrastructure. UL 2416 certification provides assurance of safety and compliance for business-critical environments. The 60-month manufacturer warranty reflects APC's commitment to reliability and long-term support.
Specifications
| Product Type | Rack Enclosure |
|---|---|
| Rack Units | 6U |
| Mounting Style | Wallmount |
| Rack Width | 19 inches |
| Maximum Mounting Depth | 76.2 cm |
| Minimum Mounting Depth | 76.2 cm |
| Main Input Voltage | 230V |
| Input Connection Type | IEC 60320 C13 |
| Network Frequency | 50 Hz |
| Maximum Load Capacity (Dynamic) | 113.4 kg |
| Maximum Load Capacity (Static) | 113.4 kg |
| Airflow | 103.83 l/s |
| Safety Certification | UL 2416 |
| Warranty | 60 months |
| Mounting Mode | Wallmount (not rack-mountable) |
Key Features
Ideal For
FAQs
Is the APC NetShelter AR106VI compatible with standard 19-inch rack equipment?
Yes. The AR106VI is designed to the industry standard 19-inch rack width and is compatible with a wide range of APC and third-party equipment including PSUs, network devices, and server components.
What is the maximum weight capacity of the AR106VI?
The enclosure supports a maximum load of 113.4 kg for both dynamic and static loads, providing sufficient capacity for multiple server-grade devices.
Can the AR106VI be installed in a standard server rack?
No. The AR106VI is a wallmount enclosure and is not compatible with standard vertical rack mounting. It is designed for direct wall installation.
What cooling does the AR106VI provide?
The enclosure features active airflow of 103.83 l/s to support thermal management and cooling of installed equipment during continuous operation.
What power input does the AR106VI require?
The enclosure requires 230V single-phase power input with an IEC 60320 C13 connection, standard for Australian business installations.
What is the warranty period?
The APC NetShelter AR106VI includes a 60-month (5-year) manufacturer warranty covering defects in materials and workmanship.
Is the AR106VI suitable for small office installations?
Yes. The 6U low-profile wallmount design is ideal for small to medium businesses, branch offices, and space-constrained environments requiring professional equipment organisation.
