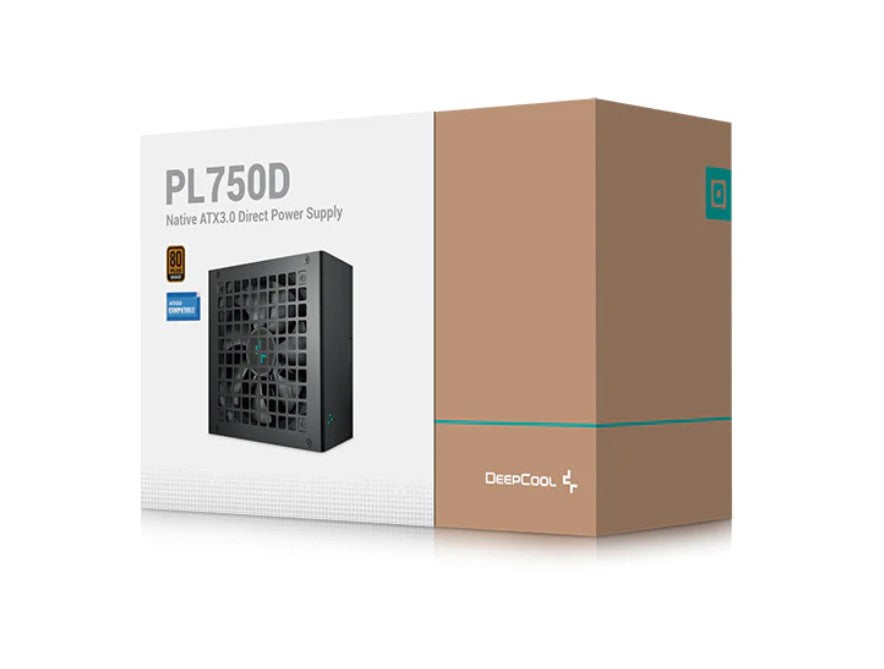

DeepCool PL750D 750W 80+ Bronze ATX Power Supply
DeepCool PL750D 750W 80+ Bronze ATX Power Supply
SKU:PSD-PL750D
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Power Supplies |
| SKU | PSD-PL750D |
| Availability | In Stock |
Overview
- The DeepCool PL750D brings modern power supply technology to the 750W segment. As an 80+ Bronze certified unit, it maintains 85% efficiency under typical 50% loading, reducing power waste and heat generation. The addition of ATX3.0 compliance and 12VHPWR cable support ensures compatibility with the latest GPU architectures and motherboard standards.
Equipped with a 120mm hydro-bearing fan, the PL750D operates quietly whilst maintaining effective thermal management. Its active PFC and DC to DC topology deliver stable voltage regulation across all output rails, protecting expensive system components. The unit includes comprehensive protection against overvoltage, overcurrent, over-temperature, and short-circuit conditions.
With a 100,000 MTBF rating and 60-month warranty, the PL750D offers long-term reliability for mission-critical systems. The non-modular design simplifies installation and reduces connector failures, making it a practical choice for system integrators and IT professionals seeking dependable power delivery.
Specifications
| Power Output | 750W |
|---|---|
| Form Factor | ATX12V V3.0 |
| Efficiency Certification | 80+ Bronze |
| Efficiency at 50% Load | ≥85% |
| Dimensions | 150 × 140 × 86 mm (W × L × H) |
| Fan Size | 120 mm |
| Fan Bearing Type | Hydro Bearing (HYB) |
| Topology | Active PFC + DC to DC |
| Capacitor Type | Chinese Electrolytic Capacitors |
| Power Good Signal | 100–150 ms |
| Hold-Up Time | ≥16 ms |
| Operating Temperature | 0–40 °C |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| MTBF | 100,000 hours |
| Warranty | 60 months |
| Compliance Standards | CE, FCC, CCC, RCM, EAC, BIS, CAN ICES-003(B), NMB-003(B), TÜV-RH |
| Cable Type | Non-modular with 12VHPWR cable |
| ATX Compliance | ATX3.0, ATX3.1 |
Key Features
Ideal For
FAQs
Is the DeepCool PL750D compatible with Intel ATX3.0 motherboards?
Yes, the PL750D is ATX3.0 and ATX3.1 compliant and includes a 12VHPWR cable, ensuring full compatibility with the latest Intel motherboards and next-generation GPU architectures.
What does 80+ Bronze certification mean?
80+ Bronze means the PSU maintains at least 80% efficiency across specified load ranges. The PL750D achieves ≥85% efficiency at 50% load, reducing power consumption and heat output.
Is this a modular or non-modular power supply?
The PL750D is non-modular, meaning all cables are permanently attached. This design reduces connector failure points and simplifies installation.
What is MTBF and why does it matter?
MTBF (Mean Time Between Failures) is 100,000 hours for the PL750D, indicating the average operating time before failure. This high rating demonstrates long-term reliability for mission-critical systems.
What protections does the PL750D include?
The PL750D features comprehensive protection: Over Power (OPP), Over Voltage (OVP), Short Circuit (SCP), Over Temperature (OTP), Over Current (OCP), Under Voltage (UVP), Soft-start (SIP), and No-Load (NLO) protection.
What is the warranty period?
The DeepCool PL750D comes with a 60-month (5-year) manufacturer warranty, providing peace of mind for long-term use.
Is the 120mm fan quiet?
The fan uses hydro-bearing technology, which provides smooth rotation and reduced noise compared to traditional sleeve bearings, whilst maintaining effective cooling performance.
