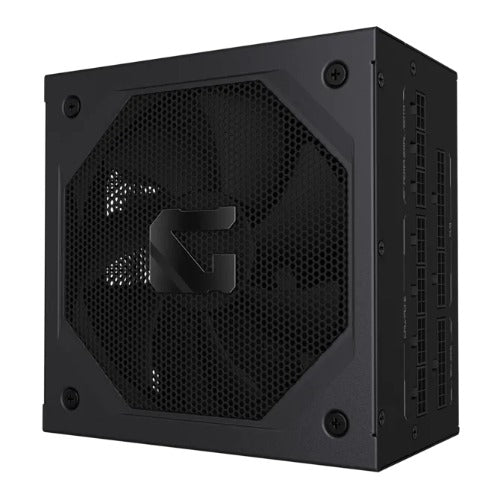

Gigabyte Gaming 750GM PG5 750W 80+ Gold Power Supply
Gigabyte Gaming 750GM PG5 750W 80+ Gold Power Supply
SKU:CFGP-GME750GMPG5
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | CFGP-GME750GMPG5 |
| Availability | In Stock |
Overview
- The Gigabyte Gaming 750GM PG5 delivers 750W of stable, efficient power for modern high-performance systems. With 80+ Gold certification and 90% efficiency at typical loads, it reduces energy costs and heat output compared to lower-rated alternatives. The unit supports the latest ATX3.1 standard and includes a dedicated 16-pin PCIe 5.0 connector, ensuring compatibility with current and next-generation graphics cards and components.
Designed with gaming and professional workloads in mind, this PSU features comprehensive protection circuits (OVP, OPP, SCP, UVP, OCP, OTP) that safeguard connected hardware from power anomalies. The 135mm FDB fan operates quietly across a wide load range (13.8–35.8 dBA), making it suitable for noise-sensitive environments such as studios or offices.
Fully modular cabling with embossed, all-black connectors simplifies system builds and improves airflow management. With over 100,000 hours MTBF and a 3-year warranty, the Gaming 750GM PG5 provides the reliability and longevity expected from a premium power supply.
Specifications
| Output Capacity | 750W |
|---|---|
| Efficiency Rating | 80+ Gold |
| Efficiency at Typical Load | 90% |
| Form Factor | Intel ATX 12V v3.1 |
| Input Voltage | 100–240 VAC |
| Input Current | 10–5A |
| Input Frequency | 50–60 Hz |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Fan Type | 135mm FDB |
| Noise Level | 13.8–35.8 dBA |
| Dimensions | 150 × 150 × 86 mm |
| Hold-Up Time | >17 ms (80% load) |
| Power Good Signal | 100–150 ms |
| MTBF | >100,000 hours |
| Protection Features | OVP, OPP, SCP, UVP, OCP, OTP, NLO, SIP |
| ATX Connector | 20+4 pin × 1 (610 mm) |
| EPS/CPU Connector | 4+4 pin × 2 (600 mm) |
| PCIe 16-pin Connector | 1 × (700 mm) |
| PCIe 6+2 pin Connector | 4 × (600 mm + 150 mm) |
| SATA Connector | 8 × (600 mm + 150 mm + 150 mm + 150 mm) |
| 4-pin Peripheral Connector | 4 × (500 mm + 150 mm + 150 mm + 150 mm) |
| Cable Type | Fully modular, embossed, all black |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is the Gigabyte Gaming 750GM PG5 compatible with PCIe 5.0 graphics cards?
Yes. The PSU features a dedicated 16-pin PCIe 5.0 connector and is fully ATX3.1 compliant, making it compatible with current and next-generation PCIe 5.0 graphics cards and components.
What does 80+ Gold efficiency mean?
80+ Gold certification means the power supply converts at least 90% of input power to usable output at typical loads, reducing energy waste, lowering electricity bills, and generating less heat compared to lower-rated units.
Is this PSU suitable for overclocking?
Yes. The 750W capacity, comprehensive protection circuits, and stable power delivery make it suitable for overclocked systems. However, ensure your total system power draw does not exceed 750W under load.
How quiet is the Gigabyte Gaming 750GM PG5?
The 135mm FDB fan operates between 13.8 and 35.8 dBA depending on load. At idle or light loads, it remains nearly silent; at full load, noise levels remain well below typical office environments.
What protection features are included?
The PSU includes OVP (overvoltage protection), OPP (overpower protection), SCP (short-circuit protection), UVP (undervoltage protection), OCP (overcurrent protection), OTP (overtemperature protection), NLO (no-load operation), and SIP (soft start in-rush protection).
What is the warranty period?
The Gigabyte Gaming 750GM PG5 includes a 3-year manufacturer warranty covering defects in materials and workmanship.
Can I use this PSU for a multi-GPU setup?
With 750W total capacity and four PCIe 6+2 pin connectors plus one 16-pin connector, the PSU can support multi-GPU configurations depending on your specific GPU power requirements. Calculate total system draw to ensure it remains under 750W.
