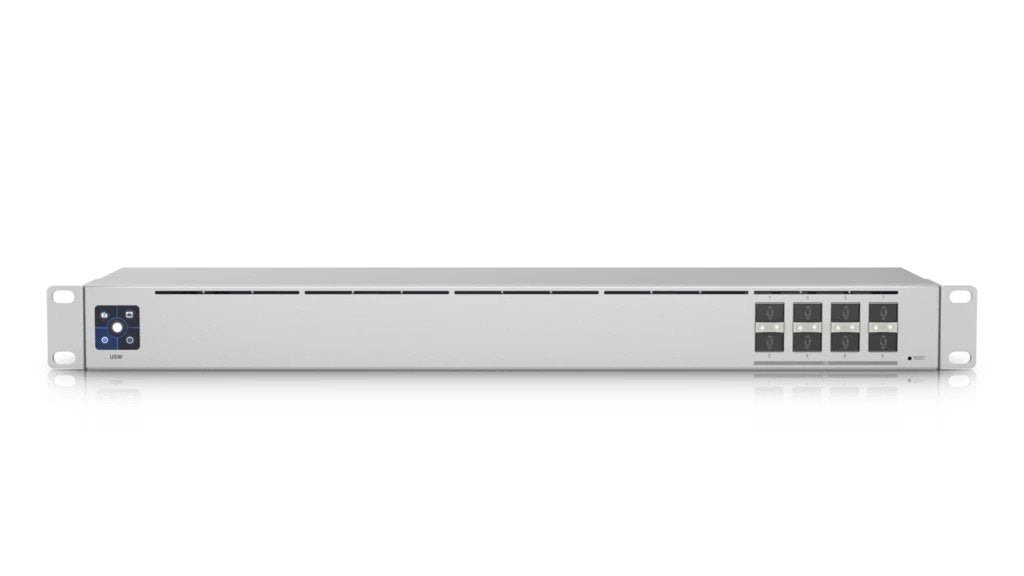

Ubiquiti USW-Aggregation 8-Port 10G SFP+ Switch
Ubiquiti USW-Aggregation 8-Port 10G SFP+ Switch
SKU:NHU-USW-AGGREGATION
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UniFi |
| SKU | NHU-USW-AGGREGATION |
| Availability | In Stock |
Overview
- The Ubiquiti USW-Aggregation is a purpose-built aggregation switch designed to provide high-capacity backbone connectivity for UniFi network deployments. With eight 10G SFP+ ports, it delivers 160 Gbps switching capacity to handle demanding inter-switch traffic and link aggregation scenarios.
Built for enterprise reliability, the USW-Aggregation features fanless operation for silent, maintenance-free cooling in rack environments. Its Layer 2 switching capabilities and efficient 36W power supply make it energy-efficient whilst maintaining non-blocking throughput of 80 Gbps.
Ideal for organisations expanding their network infrastructure, the USW-Aggregation integrates seamlessly into existing UniFi solutions and supports various network topologies. The compact 1U rackmount design fits standard network racks without requiring dedicated power infrastructure.
Specifications
| Ports | 8 × 10G SFP+ |
|---|---|
| Switching Capacity | 160 Gbps |
| Non-Blocking Throughput | 80 Gbps |
| Forwarding Rate | 119.04 Mpps |
| Management Interface | Ethernet (In-Band) |
| Layer Support | Layer 2 |
| Switching Mode | Managed |
| Link Aggregation | Supported |
| Cooling | Fanless |
| Form Factor | 1U Rackmount |
| Power Consumption (Max) | 30W |
| Power Supply | 36W AC/DC (Internal) |
| Power Input | Universal AC 100-240VAC, 50/60 Hz |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the purpose of an aggregation switch?
An aggregation switch consolidates traffic from multiple access switches and provides high-capacity backbone connectivity. The USW-Aggregation specifically handles inter-switch links with 10G SFP+ ports, supporting link aggregation for increased bandwidth and redundancy.
Can I use copper Ethernet cables with this switch?
The USW-Aggregation supports 10G SFP+ ports. Copper connectivity is available via optional UF-RJ45-10G modules (sold separately), which can be installed in all eight ports when using the 36W power supply.
Is this switch suitable for small business networks?
The USW-Aggregation is designed for aggregation and backbone use cases rather than access-layer switching. It's best suited for organisations with multiple switches or high-bandwidth requirements. Smaller networks may benefit from other UniFi switch models.
Does the USW-Aggregation require external cooling?
No. The switch features fanless design and operates silently, making it suitable for data centres and server rooms without requiring additional cooling infrastructure.
What is the maximum throughput this switch can handle?
The USW-Aggregation delivers 160 Gbps total switching capacity with 80 Gbps non-blocking throughput and a forwarding rate of 119.04 Mpps, suitable for demanding aggregation and backbone scenarios.
Is this compatible with non-Ubiquiti equipment?
As a managed Layer 2 switch, the USW-Aggregation can work with standard network equipment using SFP+ optics. However, advanced management features are optimised within Ubiquiti UniFi environments.
What is the warranty period?
The USW-Aggregation includes a 12-month manufacturer's warranty covering hardware defects and failures.
