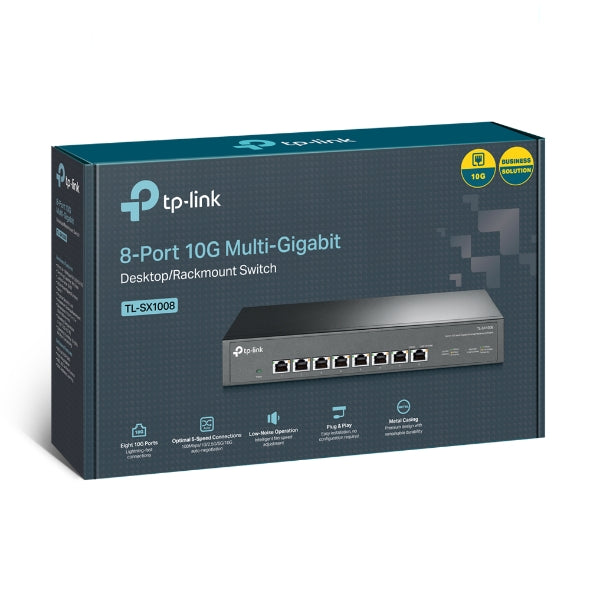

TP-Link TL-SX1008 8-Port 10G Network Switch
TP-Link TL-SX1008 8-Port 10G Network Switch
SKU:NWTL-SX1008
The TP-Link TL-SX1008 is an 8-port 10G network switch designed for high-speed connectivity in business and home offices. Featuring 160 Gbps switching capacity, intelligent fan control, and support for 10G/Multi-Gig devices, it delivers lightning-fast performance for servers, NAS, and demanding workstations.
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SX1008 |
| Availability | In Stock |
Overview
- The TP-Link TL-SX1008 is a professional-grade 8-port 10G network switch built for environments demanding ultra-fast data transfer. With 160 Gbps total switching capacity, it connects servers, NAS devices, and high-performance workstations without bottlenecks. Each port supports multi-gigabit speeds (100 Mbps to 10 Gbps) with automatic negotiation, making it compatible with legacy and modern equipment alike.
Intelligent fan control automatically adjusts cooling based on load, minimising noise in office and studio environments. The robust metal casing and compact form factor support both desktop placement and standard 19-inch rack mounting, providing flexibility for various deployments. Advanced features include 802.1p/DSCP QoS for traffic prioritisation and flow control, ensuring reliable performance across mixed workloads.
With a 5-year warranty and CE/FCC/RoHS certification, the TL-SX1008 is a reliable backbone for small-to-medium networks handling bandwidth-intensive applications.
Specifications
| Ports | 8× 10 Gigabit Ethernet ports |
|---|---|
| Port Speed Support | Auto-negotiating 100 Mbps / 1 Gbps / 2.5 Gbps / 5 Gbps / 10 Gbps |
| Auto-MDI/MDIX | Yes |
| Switching Capacity | 160 Gbps |
| Packet Forwarding Rate | 119.0 Mpps |
| MAC Address Table | 32,000 entries |
| Packet Buffer Memory | 2 MB |
| Jumbo Frame Support | 10 KB |
| Flow Control | 802.3X |
| QoS | 802.1p/DSCP support |
| Transfer Method | Store and Forward |
| Power Supply | External, 100–240 VAC, 50/60 Hz, 0.8 A |
| Maximum Power Consumption | 31.2 W |
| Cooling | 1× intelligent fan with speed adjustment |
| LED Indicators | System Power (1), Link/Activity per port (8) |
| Dimensions (W × D × H) | 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 inches) |
| Mounting | Desktop or standard rackmount |
| Operating Temperature | 0–50 °C (32–122 °F) |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Operating Humidity | 10–90% RH (non-condensing) |
| Storage Humidity | 5–90% RH (non-condensing) |
| Standards & Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Certifications | CE, FCC, RoHS |
| Warranty | 60 months (5 years) |
| Included Accessories | Power cord, installation guide, rackmount kit, rubber feet |
Key Features
Ideal For
FAQs
What is the maximum throughput of the TP-Link TL-SX1008?
The TL-SX1008 offers 160 Gbps of total switching capacity with a packet forwarding rate of 119 Mpps, allowing simultaneous 10G communication across all 8 ports without congestion.
Does this switch require configuration or drivers?
No, the TL-SX1008 is plug-and-play. It operates out of the box with no software installation, configuration, or drivers required. Simply connect devices and it begins forwarding traffic immediately.
Can I use this switch in a rack mount cabinet?
Yes, the TL-SX1008 supports both desktop and standard 19-inch rackmount configurations. A rackmount kit is included in the package.
Is this switch compatible with older 1G and 2.5G devices?
Yes. Each port supports auto-negotiation across 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps speeds, making it backward-compatible with legacy equipment.
How does the intelligent fan adjustment work?
The switch features one intelligent fan that automatically adjusts its speed based on temperature and load. This reduces noise during light usage while maintaining optimal cooling under heavy traffic.
What is the power consumption of the TL-SX1008?
Maximum power consumption is 31.2 W, making it energy-efficient for continuous operation in office and server environments.
Does the switch support Quality of Service (QoS)?
Yes, the TL-SX1008 supports 802.1p and DSCP QoS features, allowing traffic prioritisation for critical applications like video streaming or VoIP.
