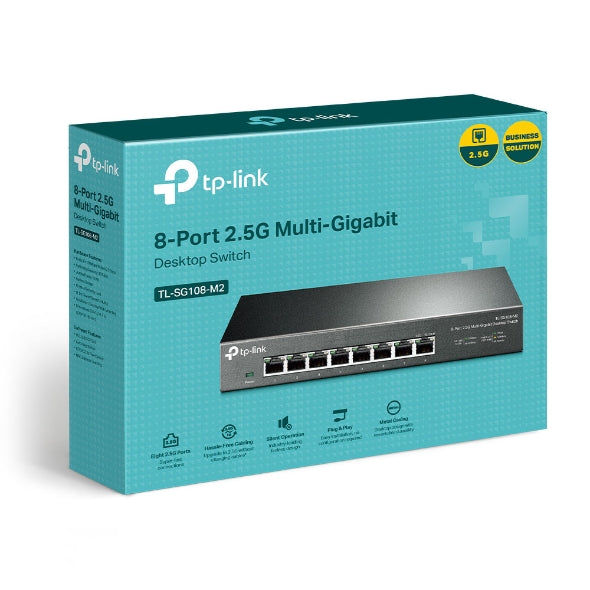

TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch
TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch
SKU:NWTL-SG108-M2
The TP-Link TL-SG108-M2 is an 8-port 2.5G desktop switch designed for modern network infrastructure. Featuring 40 Gbps switching capacity, fanless operation, and compatibility with 2.5G NAS, servers, and WiFi 6 AP, it delivers high-speed connectivity for small offices, home networks, and workstations.
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG108-M2 |
| Availability | In Stock |
Overview
- The TP-Link TL-SG108-M2 brings affordable 2.5 Gigabit networking to small offices and home networks. With eight 2.5G ports and 40 Gbps switching capacity, it connects modern network devices—NAS systems, servers, gaming PCs, and WiFi 6 access points—at speeds that match their capabilities.
Designed for ease of use, the TL-SG108-M2 works with existing Cat5e cabling, eliminating expensive rewiring costs. Its fanless architecture ensures silent operation suitable for any business or home environment. The durable metal chassis supports both desktop and wall-mounted installation, making it flexible for different spaces.
With plug-and-play deployment, QoS support, and 802.3X flow control, this switch is ready to work immediately. It's an ideal choice for professionals who need reliable multi-gigabit performance without complexity or ongoing maintenance.
Specifications
| Ports | 8× 2.5 Gbps auto-negotiating ports with auto-MDI/MDIX |
|---|---|
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.8 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 1.5 MB |
| Jumbo Frame Support | 10 KB |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Advanced Features | 802.3X Flow Control, 802.1p/DSCP QoS, Store and Forward |
| Cooling | Fanless |
| Power Supply | External 12 VDC / 1.5 A adapter |
| Power Consumption | 15.65 W maximum |
| Heat Dissipation | 53.40 BTU/h |
| LED Indicators | 1 system power + 8 link/activity indicators (1 per port) |
| Dimensions | 226 × 131 × 35 mm (8.9 × 5.2 × 1.4 inches) |
| Mounting | Desktop or wall-mounted |
| Casing | Metal |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Storage Temperature | -40–70 °C (-40–158 °F) |
| Operating Humidity | 10–90% RH (non-condensing) |
| Certifications | CE, FCC, RoHS |
| Warranty | 5 years |
| Package Contents | Switch, power adapter, installation guide, rubber feet |
Key Features
Ideal For
FAQs
Do I need to upgrade my cabling to use this 2.5G switch?
No. The TL-SG108-M2 is backwards compatible and works with existing Cat5e cabling, so you can upgrade to 2.5G speeds without expensive rewiring.
Is this switch suitable for a small office or home network?
Yes. The fanless, silent design and plug-and-play setup make it ideal for small offices, home networks, and workstations requiring reliable 2.5G connectivity.
What devices can I connect to this switch?
The TL-SG108-M2 supports 2.5G NAS systems, servers, gaming PCs, WiFi 6 access points, and any 2.5G-capable device. It's also backward compatible with older 1 Gbps and 100 Mbps devices.
How much power does this switch consume?
Maximum power consumption is 15.65 W, making it energy-efficient for continuous operation in office or home environments.
Can I mount this switch on a wall?
Yes. The metal casing supports both desktop placement and wall mounting, giving you flexibility to suit your installation space.
Is configuration required for this switch?
No. The TL-SG108-M2 is plug-and-play. Connect power and cables—it works immediately with no setup or technician needed.
What warranty does this switch include?
The TL-SG108-M2 includes a 5-year manufacturer's warranty covering defects in materials and workmanship.
