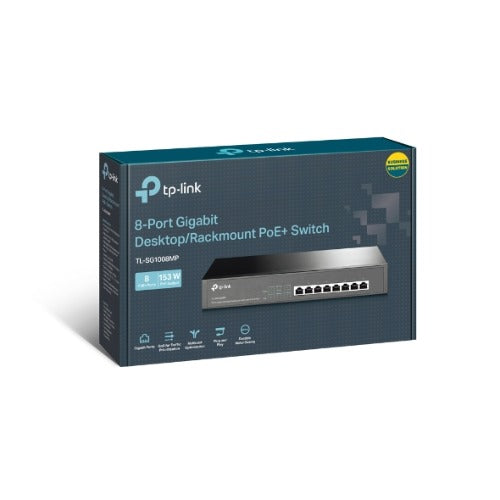

TP-Link TL-SG1008MP 8-Port Gigabit PoE+ Switch
TP-Link TL-SG1008MP 8-Port Gigabit PoE+ Switch
SKU:NWTL-SG1008MP
The TP-Link TL-SG1008MP is an 8-port Gigabit PoE+ switch designed for expanding small to medium business networks. With 126W total power budget, energy-efficient operation, and plug-and-play setup, it delivers reliable connectivity for IP cameras, wireless access points, and VoIP devices.
Couldn't load pickup availability
- See our return policy
- 60 months (5 years) Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWTL-SG1008MP |
| Availability | In Stock |
Overview
- The TP-Link TL-SG1008MP is a versatile 8-port Gigabit PoE+ switch that simplifies network expansion by delivering both data and power through a single cable. All eight ports support Power over Ethernet+, eliminating the need for separate power infrastructure and reducing installation complexity and costs.
With a 126W power budget distributed across ports supporting up to 30W each, the switch accommodates demanding devices such as high-power PoE cameras, outdoor access points, and industrial endpoints. The 16Gbps backbound bandwidth ensures smooth data transfer even with multiple powered devices connected simultaneously.
Designed for Australian businesses, the TL-SG1008MP offers flexible deployment options with both desktop and rack-mount configurations. Its energy-efficient technology reduces operational costs, whilst the plug-and-play design requires no configuration, making it ideal for IT teams managing multiple locations or non-technical staff handling simple network expansions.
Specifications
| Ports | 8 × 10/100/1000Mbps RJ45 (Gigabit Ethernet) |
|---|---|
| PoE+ Support | All 8 ports, IEEE 802.3af/at compliant |
| Maximum Power Budget | 126W total, 30W per port maximum |
| Backbound Bandwidth | 16Gbps |
| MAC Address Table | 4K |
| Buffer Size | 1.5Mbits |
| Network Media | Cat3/Cat5/Cat5e/Cat6 UTP or STP, maximum 100m |
| Auto Negotiation | Yes, with AUTO MDI/MDIX |
| Transfer Method | Store-and-Forward |
| Power Supply | 100–240VAC, 50/60Hz |
| Power Consumption (no PD) | 9.89W at 220V/50Hz |
| Power Consumption (with PD) | 140.67W at 110V/60Hz with 126W PD connected |
| Heat Dissipation (no PD) | 33.74 BTU/h |
| Heat Dissipation (with PD) | 492.56 BTU/h |
| Dimensions | 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 inches) |
| Mounting | Desktop or rack-mount |
| Cooling | 1 integrated fan |
| Advanced Features | Priority function, MAC auto-learning and auto-aging, IEEE 802.3x flow control |
| Certifications | FCC, CE, RoHS |
| Warranty | 60 months (5 years) |
| Package Contents | Switch unit, power cord, installation guide, rackmount kit, rubber feet |
Key Features
Ideal For
FAQs
Can I power all 8 ports simultaneously at maximum wattage?
The TL-SG1008MP has a total power budget of 126W. If you connect eight devices each drawing 30W (the maximum per port), you would require 240W total. Therefore, you can power all ports simultaneously only if the combined power draw of your devices does not exceed 126W. For example, you could power eight 15W devices or a mix that totals 126W or less.
Is this switch suitable for IP camera installations?
Yes, the TL-SG1008MP is well-suited for IP camera systems. All 8 ports support PoE+, allowing you to connect and power up to 8 cameras with a single cable per camera. Verify that your camera specifications comply with IEEE 802.3af/at standards and that the total power draw does not exceed 126W.
What is the difference between PoE and PoE+?
PoE (Power over Ethernet, IEEE 802.3af) supplies up to 15.4W per port, whilst PoE+ (IEEE 802.3at) supplies up to 30W per port. The TL-SG1008MP supports both standards, allowing it to work with both older PoE devices and newer, higher-power PoE+ devices.
Can this switch be mounted in a server rack?
Yes, the TL-SG1008MP includes a rackmount kit in the package and is designed to fit standard server racks. It can also be used as a desktop switch with the included rubber feet if rack mounting is not required.
Does this switch require configuration or setup?
No, the TL-SG1008MP is a plug-and-play unmanaged switch. Simply connect power and your network cables—no configuration software or interface access is needed.
What cable types are compatible with this switch?
The switch supports standard Ethernet cables: Cat3, Cat5, Cat5e, or Cat6 UTP or STP cabling up to 100 metres. For Gigabit speeds, Cat5e or higher is recommended.
How much power does the switch consume when no devices are connected?
When no powered devices are connected, the TL-SG1008MP consumes approximately 9.89W at 220V/50Hz, making it energy-efficient for continuous operation.
