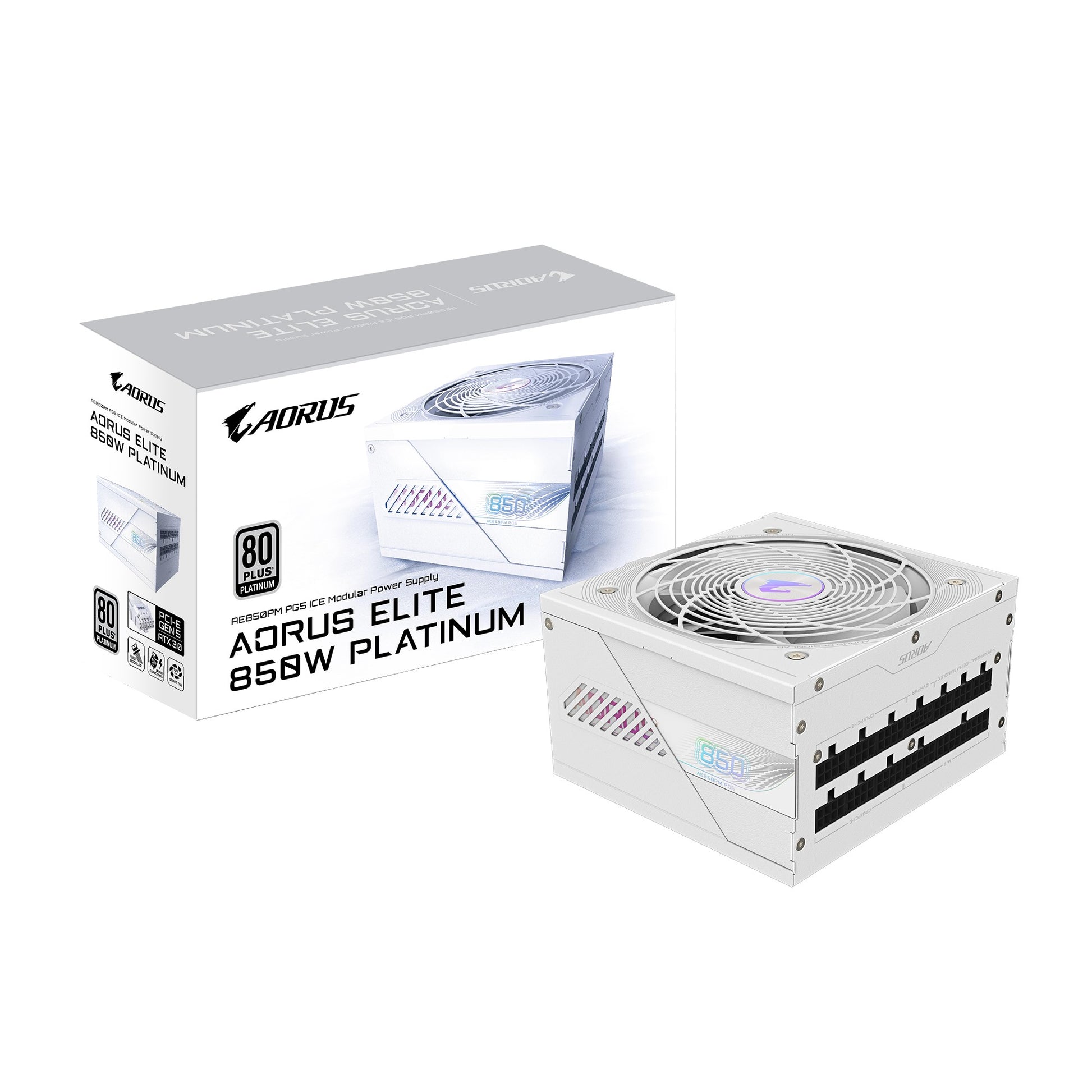

Gigabyte GP-AE850PM PG5 ICE 850W Platinum PSU
Gigabyte GP-AE850PM PG5 ICE 850W Platinum PSU
SKU:PSG-GP-AE850PMPG5ICE
Couldn't load pickup availability
- See our return policy
- 120 months (10 years) Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-GP-AE850PMPG5ICE |
| Availability | In Stock |
Overview
- The Gigabyte GP-AE850PM PG5 ICE is a premium 850W ATX power supply engineered for systems that require reliable, efficient power delivery. With 80 PLUS Platinum certification, it achieves 92% efficiency at typical loads, significantly reducing operational costs and heat generation compared to standard power supplies.
Designed with active PFC (>0.9 typical) and a comprehensive protection suite including overvoltage, overcurrent, overpower, short circuit, undervoltage, and overtemperature protection, this PSU safeguards your entire system. The 120mm FDB (Fluid Dynamic Bearing) fan operates quietly while maintaining optimal thermal performance.
With a 10-year warranty and MTBF exceeding 100,000 hours, the GP-AE850PM PG5 ICE is built for longevity. All-white flat cables facilitate clean builds, whilst the full range input voltage (100-240V AC) ensures compatibility with Australian power infrastructure.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | GP-AE850PM PG5 ICE |
| Power Output | 850W |
| Form Factor | ATX 12V v3.0 |
| Efficiency Rating | 80 PLUS Platinum |
| Efficiency at Typical Load | 92% |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Dimensions | 150 x 140 x 86mm |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Hold-up Time | >16ms |
| Power Good Signal | 100-150ms |
| Protection Features | OVP, OPP, SCP, UVP, OCP, OTP |
| MTBF | >100,000 hours |
| Cable Type | Flat, all-white |
| Warranty | 120 months (10 years) |
| Connectors | {"ATX/Motherboard"=>"20+4 Pin x1 (650mm)", "CPU/EPS"=>"4+4 Pin x2 (700mm)", "PCIe 16 Pin"=>"x1 (700mm)", "PCIe 6+2 Pin"=>"x6 (650mm + 150mm x2, 750mm x2)", "SATA"=>"x8 (600mm + 150mm + 150mm + 150mm x2)", "4-Pin Peripheral"=>"x4 (500mm + 150mm + 150mm + 150mm x1)"} |
Key Features
Ideal For
FAQs
Is the Gigabyte GP-AE850PM PG5 ICE suitable for gaming systems?
Yes, the 850W capacity with Platinum efficiency makes it ideal for high-performance gaming rigs. The comprehensive protection features safeguard expensive components, whilst the quiet 120mm FDB fan won't interfere with gameplay.
What does 80 PLUS Platinum certification mean?
80 PLUS Platinum means the PSU maintains at least 90% efficiency at typical loads. This reduces wasted energy as heat, lowering power bills and environmental impact whilst keeping your system cooler.
Will this PSU work with Australian power outlets?
Yes, the GP-AE850PM PG5 ICE accepts full-range input voltage (100-240V AC) at 60-50 Hz, making it compatible with all Australian power infrastructure.
What is the warranty period?
Gigabyte offers a comprehensive 10-year (120-month) warranty, reflecting the quality and reliability of this premium PSU.
Can I use all the cables if my system doesn't need them?
Yes, the all-white flat cables are modular enough for most builds. You can leave unused cables unconnected, helping maintain clean cable management and airflow.
What protection does the OVP/OPP/SCP/UVP/OCP/OTP provide?
These protections guard against overvoltage, overpower, short circuit, undervoltage, overcurrent, and overtemperature conditions respectively, ensuring your system remains safe under all operating conditions.
Is this PSU quiet?
Yes, the 120mm Fluid Dynamic Bearing (FDB) fan is designed for low-noise operation, making it suitable for noise-sensitive environments like offices or studios.
