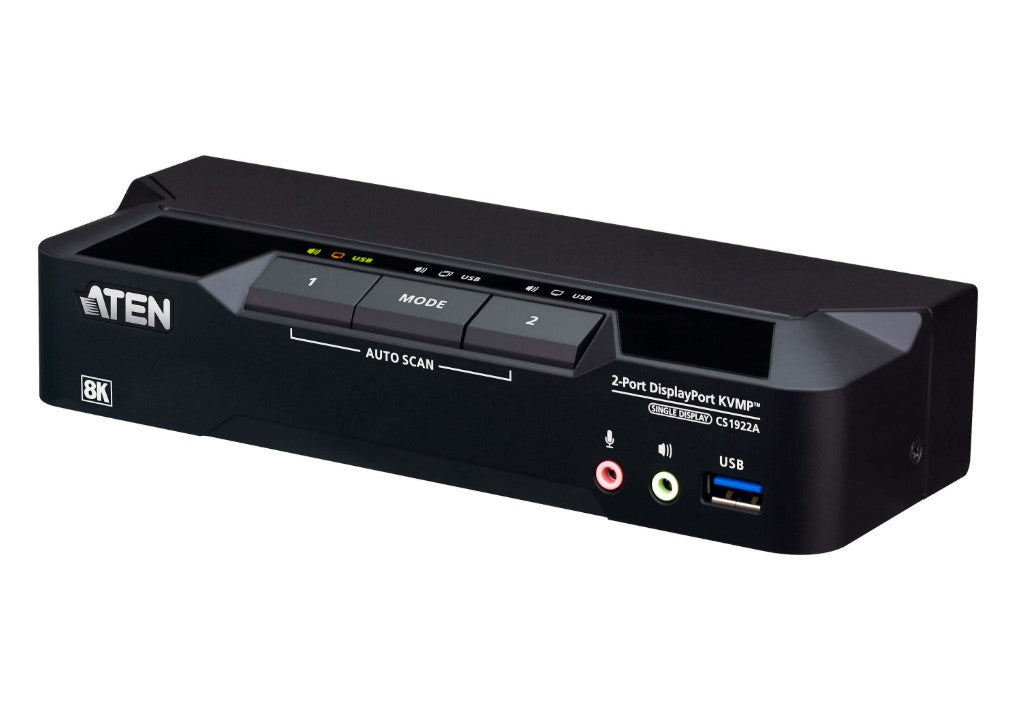

Aten CS1922A 2-Port USB 3.0 8K DisplayPort KVM Switch
Aten CS1922A 2-Port USB 3.0 8K DisplayPort KVM Switch
SKU:KVA-CS1922A-AT-U
The Aten CS1922A is a 2-port USB 3.0 8K DisplayPort KVM switch designed for professionals managing multiple computers. Featuring 8K@60 Hz resolution, integrated USB 3.1 hub, and daisy-chaining support, it streamlines multi-computer control and high-resolution workflows for demanding applications.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-CS1922A-AT-U |
| Availability | In Stock |
Overview
- The Aten CS1922A is ATEN's first KVM switch series to deliver enterprise-grade 8K support, enabling professionals to control multiple computers from a single keyboard, mouse, and display console. With native 8K@60 Hz and 4K@240 Hz resolution capabilities, the CS1922A is purpose-built for demanding high-resolution workflows, including video production, design, financial analysis, and professional content creation.
The switch provides flexible switching through multiple control methods—front panel pushbuttons, remote port selector, hotkeys, mouse switching, and RS-232 commands—allowing users to transition seamlessly between connected systems. The integrated USB 3.1 Gen 1 hub delivers 5 Gbps data transfer speeds for efficient peripheral sharing, while DisplayPort Dual-Mode (DP++) support ensures broad compatibility with HDMI and DVI displays via adapters.
Daisy-chaining capability extends functionality to multi-display setups, enabling complex workflows on a single input device set. All necessary cables, a remote selector, and a power adapter are included, ensuring quick installation and a clean, organised workspace. The 24-month warranty provides long-term reliability for mission-critical professional environments.
Specifications
| model | CS1922A |
|---|---|
| ports | 2 |
| video_interface | DisplayPort 1.4 |
| displayport_dual_mode | DP++ (HDMI/DVI compatible via adapters) |
| maximum_resolution_8k | 7680 × 4320 @ 60 Hz |
| maximum_resolution_4k | 5120 × 2880 @ 60 Hz |
| 4k_refresh_rate | 240 Hz |
| usb_interface | USB 3.0 (Type-B upstream, Type-A downstream) |
| usb_hub_speed | USB 3.1 Gen 1, 5 Gbps |
| usb_downstream_ports | 2 × USB 3.0 Type-A |
| audio_interface | Analogue audio via 3.5 mm mini-jack |
| switching_methods | Front panel pushbuttons, remote port selector, hotkeys, mouse switching, RS-232 commands |
| daisy_chaining | Supported |
| power_consumption | Not specified |
| power_supply | Included adapter |
| warranty | 24 months |
| included_accessories | 2 × DisplayPort cables (1.5 m), 2 × USB 3.0-A to USB 3.0-B cables (1.8 m), 2 × microphone cables (1.8 m), 2 × speaker cables (1.8 m), remote port selector, power adapter, user instructions |
Key Features
Ideal For
FAQs
What is the maximum resolution supported by the Aten CS1922A?
The CS1922A supports 8K resolution at 7680 × 4320 @ 60 Hz, and 4K at 5120 × 2880 @ 60 Hz. It also supports 4K at up to 240 Hz refresh rate for fast-moving content.
Can I use HDMI or DVI displays with this KVM switch?
Yes. The CS1922A features DisplayPort Dual-Mode (DP++) support, which allows connection to HDMI and DVI displays via compatible passive adapters.
What switching methods are available?
The switch supports multiple switching methods: front panel pushbuttons, a remote port selector, keyboard hotkeys, mouse switching, and RS-232 commands for flexible workflow control.
Does the CS1922A support daisy-chaining?
Yes, daisy-chaining is supported, allowing you to create multi-display setups using a single keyboard and mouse for complex professional workflows.
What is included in the package?
The package includes the CS1922A switch, 2 × DisplayPort cables (1.5 m), 2 × USB 3.0 Type-A to Type-B cables (1.8 m), 2 × microphone cables (1.8 m), 2 × speaker cables (1.8 m), a remote port selector, power adapter, and user instructions.
What is the USB hub speed on this KVM switch?
The integrated USB 3.1 Gen 1 hub provides 5 Gbps data transfer speeds, enabling fast sharing of peripherals such as external storage and input devices between connected computers.
Is a warranty provided with the Aten CS1922A?
Yes, the CS1922A comes with a 24-month manufacturer warranty for added peace of mind.
How many computers can I connect to the CS1922A?
The CS1922A is a 2-port KVM switch, allowing you to control up to 2 computers from a single console. Daisy-chaining can extend this for more complex multi-display setups.
