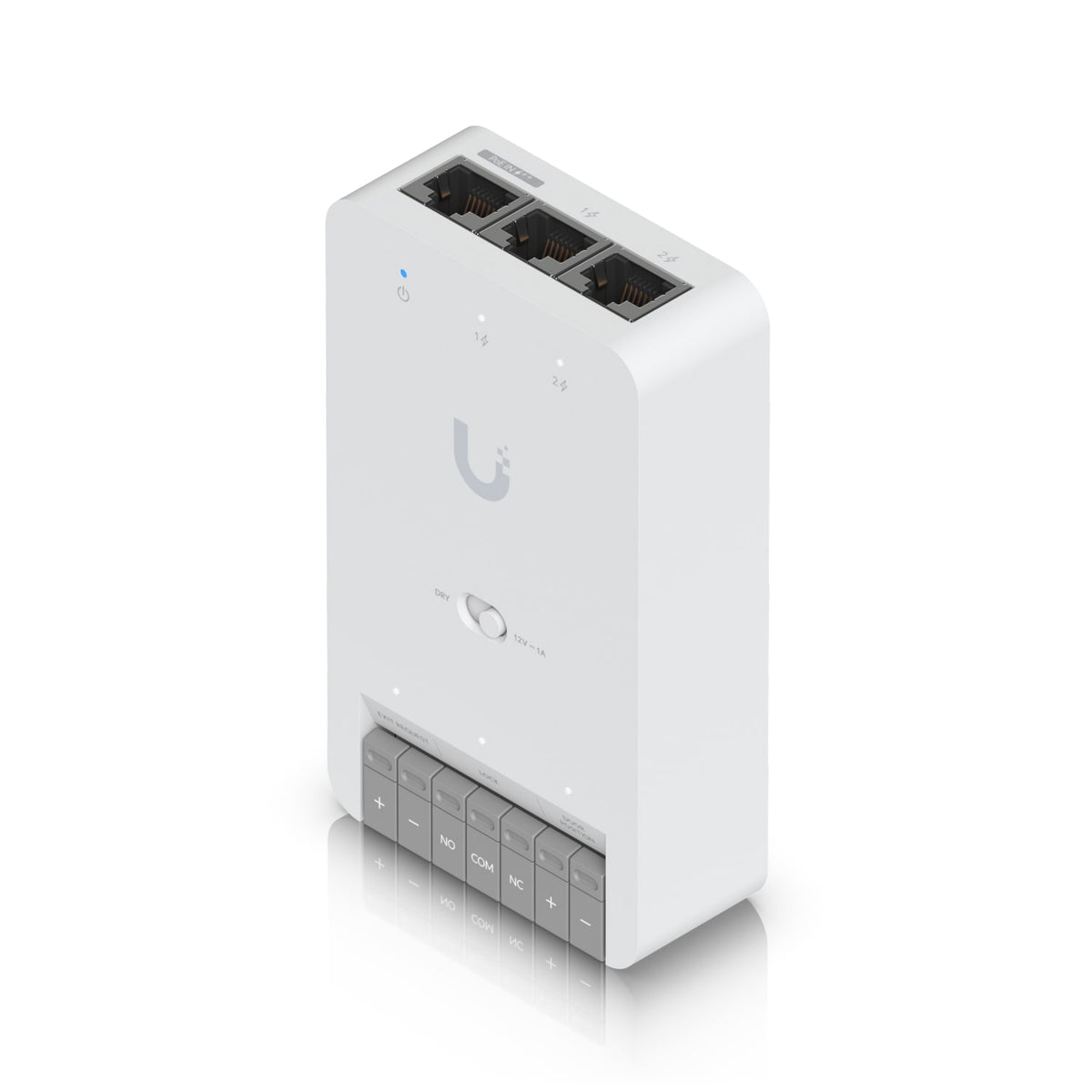

Ubiquiti Door Hub Mini Access Control Hub
Ubiquiti Door Hub Mini Access Control Hub
SKU:NHU-UA-HUB-DOOR-MINI
The Ubiquiti Door Hub Mini is a compact access control hub designed for single-door installations. Featuring a switchable 12V lock terminal, two additional sensor inputs, and PoE++ powered connectivity, it integrates seamlessly with UniFi Access Readers and Protect Cameras for unified security.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UniFi |
| SKU | NHU-UA-HUB-DOOR-MINI |
| Availability | In Stock |
Overview
- The Ubiquiti Door Hub Mini is a compact access control solution purpose-built for single-door deployments. It serves as the central hub for managing door locks and integrating access readers or cameras within the UniFi ecosystem.
The hub features a single lock terminal that supports both 12V and dry switch modes, providing flexibility for different lock types. Two additional inputs allow for sensor and button integration, enabling expanded control and monitoring capabilities beyond basic lock operation.
Powered entirely via PoE++, the Door Hub Mini eliminates the need for separate power supplies and reduces installation complexity. It connects seamlessly with UniFi Access Readers and Protect Cameras, allowing businesses to build a unified access control and surveillance system from a single vendor platform.
Ideal for small to medium businesses, retail locations, and offices that require straightforward access control without the complexity of multi-door systems, the Door Hub Mini delivers reliable, integrated security within a compact form factor.
Specifications
| Manufacturer | Ubiquiti |
|---|---|
| Model | UA-Hub-Door-Mini |
| Product Type | Access Control Hub |
| Lock Terminals | 1 (12V and Dry switchable) |
| Additional Inputs | 2 (sensor and button) |
| Connectivity | PoE++ |
| Compatible Devices | Up to 2 UniFi Access Readers or Protect Cameras |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What doors can the Door Hub Mini control?
The Door Hub Mini is designed for single-door installations. It features one lock terminal that can control a single door lock in either 12V or dry switch mode, depending on your lock type.
How is the Door Hub Mini powered?
The Door Hub Mini is powered entirely via PoE++ (Power over Ethernet Plus), which also provides network connectivity. This eliminates the need for a separate power supply and simplifies installation.
Can I connect multiple access readers to the Door Hub Mini?
Yes, the Door Hub Mini supports connection to up to two UniFi Access Readers or Protect Cameras, allowing for flexible reader placement or combined access and camera monitoring.
What are the additional inputs used for?
The two additional inputs support sensor and button integration. These can be used for door sensors, exit buttons, alarm inputs, or other triggered events within your access control system.
Does the Door Hub Mini work with non-Ubiquiti equipment?
The Door Hub Mini is designed to integrate with UniFi Access Readers and Protect Cameras. Compatibility with third-party systems is not specified in the product documentation.
What is the warranty period?
The Ubiquiti Door Hub Mini includes a 12-month manufacturer warranty covering defects in materials and workmanship.
