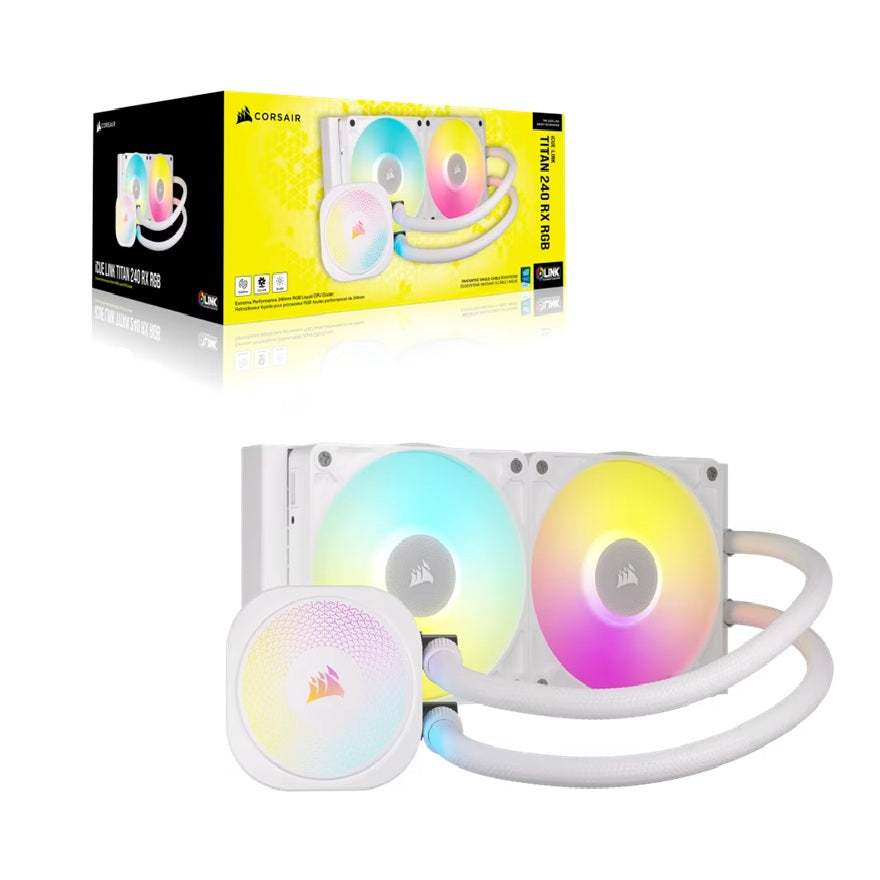

Corsair iCUE LINK TITAN 240 RX RGB AIO Liquid CPU Cooler
Corsair iCUE LINK TITAN 240 RX RGB AIO Liquid CPU Cooler
SKU:CFCW-TITAN240RXRGB-WH
The Corsair iCUE LINK TITAN 240 RX RGB is a 240mm all-in-one liquid CPU cooler designed for high-performance systems. Featuring a FlowDrive cooling engine, dual RX120 RGB fans, and CapSwap modular design, it delivers efficient cooling with dynamic RGB lighting for Intel and AMD processors.
Couldn't load pickup availability
- See our return policy
- 6 years (cooling) Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Fan & Cooling Products |
| SKU | CFCW-TITAN240RXRGB-WH |
| Availability | In Stock |
Overview
- The Corsair iCUE LINK TITAN 240 RX RGB is a premium all-in-one liquid cooler engineered for systems that demand maximum thermal performance without compromising on acoustics. The precision-engineered FlowDrive pump features a three-phase motor designed in-house by Corsair, delivering higher flow rates and lower noise levels than conventional AIOs. The dual RX120 RGB fans provide exceptional airflow and static pressure across variable speed profiles, ensuring your CPU stays cool under sustained load.
Installation is straightforward, with included mounting brackets and backplates supporting both current-generation Intel and AMD socket types. The innovative CapSwap modular design allows you to swap the pump cap in seconds without tools, giving you flexibility to personalise your cooler's aesthetics. With 28 integrated RGB LEDs managed through streamlined iCUE LINK connectivity, you can synchronise lighting across your entire system ecosystem.
Whether you're building a high-end gaming rig, a content creation workstation, or an overclocked performance system, the TITAN 240 RX combines proven engineering, quiet operation, and visual appeal. The 6-year warranty provides assurance of long-term reliability.
Specifications
| Brand | Corsair |
|---|---|
| Model | iCUE LINK TITAN 240 RX RGB |
| Product Type | All-in-One Liquid CPU Cooler |
| Radiator Size | 240mm |
| Radiator Material | Aluminium |
| Number of Fans | 2 |
| Fan Model | RX120 RGB |
| Fan Dimensions | 120mm x 25mm |
| Fan Speed | 300–2100 RPM (±10%) |
| Fan Airflow | 10.4–73.5 CFM |
| Fan Static Pressure | 0.12–4.33mm H₂O |
| Cold Plate Material | Copper |
| Tubing Material | Black sleeved low-permeation rubber |
| Tubing Length | 400mm |
| Pump Motor | Three-phase motor |
| Fan Control | Digital |
| PWM | No |
| RGB LEDs | 20 on pump + 8 per fan (28 total) |
| RGB Connectivity | iCUE LINK |
| Socket Support | Intel LGA 1851, Intel LGA 1700, AMD AM5, AMD AM4 |
| Intel Processors Supported | Core i9, i7, i5, i3, Pentium, Celeron |
| AMD Processors Supported | Ryzen |
| Modular Design | CapSwap (tool-free pump cap swap) |
| CapSwap Modules | Sold separately |
| Warranty | 6 years (cooling) |
| Dimensions | 456mm (L) x 334mm (W) x 444mm (H) |
| Colour | White |
| Package Includes | AIO cooler, dual RX120 fans, mounting brackets, backplates (Intel and AMD), tubing, pump assembly |
Key Features
Ideal For
FAQs
What processors does the Corsair TITAN 240 RX support?
The TITAN 240 RX supports Intel LGA 1851, LGA 1700, and AMD AM5 and AM4 sockets, covering current-generation Intel Core i9/i7/i5/i3, Pentium, and Celeron processors, as well as AMD Ryzen chips.
Is this cooler easy to install?
Yes. The cooler includes pre-mounted fans and all necessary mounting brackets and backplates for Intel and AMD sockets. Installation typically takes 15–30 minutes with basic tools. Full instructions are provided.
Can I customise the pump cap design?
Yes. The CapSwap modular design allows you to swap the pump cap without tools in seconds. Alternative CapSwap modules are sold separately, giving you the option to change the look or functionality of your cooler.
How does iCUE LINK connectivity work?
iCUE LINK is Corsair's proprietary daisy-chain connection system that simplifies wiring and allows you to synchronise RGB lighting and fan control across compatible Corsair products through the iCUE software.
What is the noise level of this cooler?
The TITAN 240 RX is designed for ultra-quiet operation. The FlowDrive pump features a three-phase motor with lower noise than previous generations, and the RX fans maintain high airflow while keeping noise low across all speed settings.
Is a PWM fan header required?
No. The TITAN 240 RX does not require PWM control. Fan speed is managed via digital control methods integrated into the cooler's design.
What warranty is included?
The Corsair iCUE LINK TITAN 240 RX includes a 6-year cooling warranty, providing comprehensive coverage against manufacturing defects.
What is the maximum airflow and static pressure?
The RX120 fans deliver a maximum airflow of 73.5 CFM and static pressure of 4.33mm H₂O at full speed (2100 RPM), ensuring effective cooling across a wide range of thermal loads.
