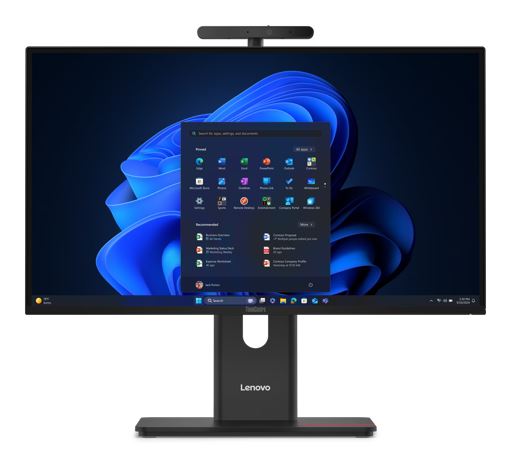

Lenovo ThinkCentre M90A G6 23.8" AIO Desktop
Lenovo ThinkCentre M90A G6 23.8" AIO Desktop
SKU:SYLEN-M90A-U516512G6
Couldn't load pickup availability
- See our return policy
- 3-year onsite service Manufacturer Warranty
Product Information
| Brand | Lenovo |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYLEN-M90A-U516512G6 |
| Availability | In Stock |
Overview
- The Lenovo ThinkCentre M90A G6 is a premium All-In-One desktop computer that combines a 23.8" FHD IPS touchscreen display with powerful processing capabilities in a compact form factor. Built around the Intel Core Ultra 5 processor with integrated AI Boost NPU, this system is optimised for modern business computing and emerging AI-assisted workflows.
Designed for organisations requiring security and reliability, the M90A G6 features a discrete TPM 2.0 security chip, robust encryption support, and ThinkShutter camera privacy protection. The 16GB DDR5 RAM and 512GB NVMe SSD deliver responsive performance for multitasking, whilst the expandable memory architecture supports up to 64GB RAM for future growth.
The display excels in professional environments with 99% sRGB colour accuracy, 250 nits brightness, and eyesafe certification. Multi-touch capability and array microphones enhance collaboration and productivity. Comprehensive connectivity includes Wi-Fi 7, Thunderbolt 4, and USB 3.2 ports, whilst ENERGY STAR 9.0 and EPEAT Gold certifications reflect a commitment to environmental responsibility.
With MIL-STD-810H military-grade durability testing and a 3-year onsite warranty, this all-in-one system is engineered for demanding business environments where uptime and security are paramount.
Specifications
| Processor | Intel Core Ultra 5 235 (14 cores: 6P + 8E / 14 threads, up to 5.0 GHz, 24MB cache) |
|---|---|
| AI Capability | AI PC; Integrated Intel AI Boost NPU (13 TOPS) |
| Graphics | Integrated Intel Graphics |
| Chipset | Intel Q870 |
| Memory | 2x 8GB DDR5-5600 SO-DIMM (dual-channel) |
| Maximum Memory | Up to 64GB DDR5-5600 |
| Storage | 512GB M.2 2280 NVMe SSD PCIe 4.0x4 (Opal 2.0) |
| Storage Expandability | Up to three M.2 SSD drives (up to 2TB each); three M.2 expansion slots (note: discrete NPU and 3rd SSD are mutually exclusive) |
| Card Reader | 3-in-1 card reader |
| Audio | Realtek ALC233NL codec; dual speakers (3W x 2); dual-array microphone |
| Camera | 5.0MP with infrared hybrid capability |
| Display | 23.8" FHD (1920x1080) IPS anti-glare; 250 nits; 120Hz; 99% sRGB; hardware low blue light; flicker-free; eyesafe certified |
| Touchscreen | 10-point multi-touch |
| Keyboard | USB Traditional Keyboard (black, English layout) |
| Mouse | USB Calliope Mouse |
| Connectivity - WLAN | Realtek Wi-Fi 7 (RTL8922AE) 802.11be 2x2 |
| Connectivity - Bluetooth | Bluetooth 5.4 |
| Connectivity - Wired | Integrated 100/1000M Ethernet (RJ-45) |
| Ports - Rear | 2x USB-A (USB 10Gbps / 3.2 Gen 2); 2x USB-A (USB 5Gbps / 3.2 Gen 1, one with Smart Power On); 1x HDMI (1.4 in / 2.1 out combo); 1x DisplayPort 1.4a (HBR2); 1x Ethernet |
| Ports - Right Side | 1x USB-A (USB 10Gbps / 3.2 Gen 2); 1x USB-C Thunderbolt 4 / USB4 (40Gbps, USB PD 3.0 up to 65W, DisplayPort 2.1, Always On); 1x USB-C (USB 10Gbps / 3.2 Gen 2, data + 5V@3A charging); 1x 3.5mm headphone/microphone combo jack; 1x card reader (configured) |
| Security Chip | Discrete TPM 2.0 (TCG and FIPS 140-2 certified) |
| Physical Security | Kensington Security Slot (3 x 7 mm); ThinkShutter camera cover |
| Power Supply | 180W with 90% efficiency |
| Dimensions | 539.6 x 222.21 x 393.01–543.01 mm (W x D x H) |
| Weight | 8.96 kg (maximum configuration) |
| Stand | Full function monitor stand with VESA mount compatibility |
| Form Factor | All-In-One (23.8 inches) |
| Warranty | 3-year onsite service |
| Environmental Certifications | ENERGY STAR 9.0; EPEAT Gold Registered; ErP Lot 3; GREENGUARD; RoHS compliant; TCO Certified 10.0; TCO edge |
| Additional Certifications | IP55 compliant (front face for touch models); IEC 60601-1 / IEC 60601-1-2 healthcare compliance; Eyesafe Certified 2.0; SGS Super Quiet Grade 1; TÜV Rheinland Flicker Free; TÜV Rheinland Low Blue Light (hardware); Anti-dust; MIL-STD-810H military test passed (altitude, temperature extremes, humidity, sand/dust, vibration, shock, fungus, solar radiation, fluid contamination, salt fog) |
| Operating System | Windows 11 Pro |
Key Features
Ideal For
FAQs
What processor does the ThinkCentre M90A G6 use?
The M90A G6 features an Intel Core Ultra 5 235 processor with 14 cores (6 performance + 8 efficiency), 14 threads, and up to 5.0 GHz turbo boost. It includes an integrated Intel AI Boost NPU capable of 13 TOPS for AI-accelerated workloads.
Can the memory and storage be upgraded?
Yes. The system comes with 16GB DDR5 RAM in two 8GB SO-DIMM modules and can be expanded up to 64GB. Storage is expandable via three M.2 slots supporting up to 2TB SSD each (note: discrete NPU and third SSD are mutually exclusive options).
Is the touchscreen suitable for professional work?
Yes. The 23.8" FHD IPS touchscreen offers 99% sRGB colour accuracy, 250 nits brightness, eyesafe certification, and 10-point multi-touch capability, making it suitable for design, creative, and productivity work.
What security features does this all-in-one include?
Security features include a discrete TPM 2.0 chip (TCG and FIPS 140-2 certified), Kensington Security Slot, ThinkShutter camera cover, and support for encrypted storage with Opal 2.0 self-encrypting drives.
What warranty is included?
The M90A G6 comes with a 3-year onsite warranty, which provides on-site service and support for repairs and technical issues.
Is this system suitable for healthcare environments?
Yes. The system is part of IEC 60601-1 and IEC 60601-1-2 healthcare compliance certifications, making it suitable for healthcare and regulated industry applications requiring certified compliance.
What connectivity options are available?
Connectivity includes Wi-Fi 7 (802.11be), Bluetooth 5.4, Gigabit Ethernet, Thunderbolt 4 USB-C (40Gbps with USB PD up to 65W), USB 3.2 Gen 1 and Gen 2 ports, DisplayPort 1.4a, and HDMI.
Does this all-in-one meet environmental standards?
Yes. The M90A G6 holds ENERGY STAR 9.0, EPEAT Gold, GREENGUARD, TCO Certified 10.0, ErP Lot 3, and RoHS certifications, reflecting strong environmental responsibility.
