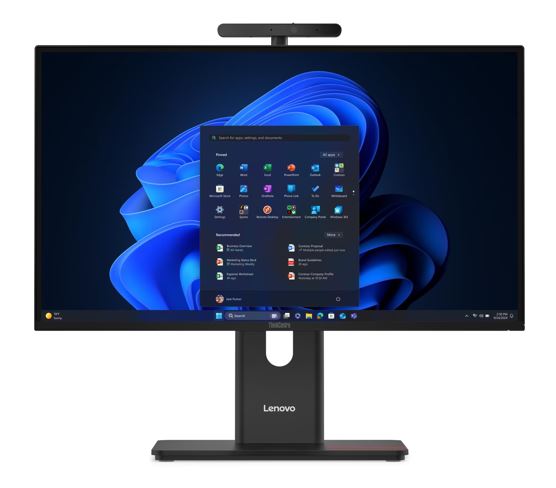

Lenovo ThinkCentre M90A G6 23.8" All-in-One Desktop
Lenovo ThinkCentre M90A G6 23.8" All-in-One Desktop
SKU:SYLEN-M90A-U716512G6
The Lenovo ThinkCentre M90A G6 is an all-in-one desktop designed for professional workplaces and creative teams. Featuring a 23.8" FHD touchscreen, Intel Core Ultra 7 processor with integrated AI capabilities, and 16GB DDR5 RAM, it delivers responsive performance and space-saving design for modern offices.
Couldn't load pickup availability
- See our return policy
- 3-year onsite Manufacturer Warranty
Product Information
| Brand | Lenovo |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYLEN-M90A-U716512G6 |
| Availability | In Stock |
Overview
- The Lenovo ThinkCentre M90A G6 is a modern all-in-one desktop that combines Intel's latest Core Ultra 7 processor with AI acceleration, delivering powerful performance in a compact, space-saving form factor. Its 23.8-inch FHD IPS touchscreen offers excellent colour accuracy and eyesafe technology, making it ideal for professional work environments where display quality matters.
With 16GB DDR5 RAM and 512GB NVMe SSD storage, the M90A G6 handles multitasking and demanding applications effortlessly. The integrated Intel AI Boost NPU enables next-generation AI-powered software and features, positioning this system as an AI-ready platform for future-focused organisations. Expandable storage supports up to three M.2 drives, and memory upgrades reach 64GB for power users.
Security and durability are built in. The system includes a discrete TPM 2.0 chip, Kensington security slot, camera privacy shutter, and passes MIL-STD-810H military-grade testing across temperature, humidity, vibration, and contamination scenarios. Wi-Fi 7, Bluetooth 5.4, Thunderbolt 4, and comprehensive USB 3.2 connectivity ensure seamless integration with modern peripherals and networks.
Backed by a 3-year onsite warranty and certified to multiple environmental and safety standards (ENERGY STAR, EPEAT Gold, TCO Certified, GREENGUARD, Healthcare IEC 60601-1 compliance), the ThinkCentre M90A G6 delivers enterprise-grade reliability and sustainability for professional and regulated workplace environments.
Specifications
| Processor | Intel Core Ultra 7 265, 20-core (8P + 12E) / 20-thread, up to 5.3GHz, 30MB cache |
|---|---|
| AI Accelerator | Integrated Intel AI Boost, up to 13 TOPS |
| Graphics | Integrated Intel Graphics |
| Chipset | Intel Q870 |
| Memory | 16GB DDR5-5600 (2x 8GB SO-DIMM) |
| Memory Expansion | Up to 64GB DDR5-5600, two DDR5 SO-DIMM slots, dual-channel capable |
| Storage | 512GB M.2 2280 PCIe 4.0x4 NVMe with Opal 2.0 security |
| Storage Expansion | Up to three M.2 drives, each up to 2TB SSD |
| Card Reader | 3-in-1 card reader |
| Audio | Realtek ALC233NL-VB2-CG HD audio codec with dual 3W speakers |
| Microphone | 2x array microphone |
| Camera | 5.0MP hybrid with infrared and ThinkShutter privacy cover |
| Display | 23.8" FHD (1920x1080) IPS anti-glare, 250 nits, 120Hz, 99% sRGB, low blue light, flicker-free, eyesafe certified |
| Touchscreen | 10-point multi-touch capacitive |
| Connectivity - WLAN | Realtek Wi-Fi 7 RTL8922AE, 802.11be 2x2 |
| Connectivity - Bluetooth | Bluetooth 5.4 |
| Connectivity - Ethernet | Integrated Gigabit Ethernet (100/1000M) |
| Rear Ports | 2x USB-A 10Gbps (USB 3.2 Gen 2), 2x USB-A 5Gbps (USB 3.2 Gen 1 with Smart Power On), 1x HDMI combo (HDMI in 1.4 / HDMI out 2.1), 1x DisplayPort 1.4a (HBR2), 1x RJ-45 Ethernet |
| Right Ports | 1x USB-A 10Gbps (USB 3.2 Gen 2), 1x Thunderbolt 4 / USB4 40Gbps with USB PD 3.0 65W output and DisplayPort 2.1, 1x USB-C 10Gbps (USB 3.2 Gen 2) with 5V@3A charging, 1x 3.5mm audio jack, 1x card reader slot |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Security | Kensington Security Slot (3x7mm), camera privacy shutter |
| Power Supply | 180W, 90% efficiency |
| Form Factor | All-in-One, 23.8 inches |
| Dimensions | 539.6 x 222.21 x 393.01-543.01 mm (21.24 x 8.75 x 15.47-21.38 inches) |
| Weight | 8.96 kg (19.75 lbs maximum configuration) |
| Colour | Black |
| Stand | Full-function monitor stand with VESA mount compatibility |
| Operating System | Windows 11 Pro |
| Included Accessories | USB keyboard, USB mouse, Wi-Fi and Bluetooth antenna |
| Warranty | 3-year onsite |
| Environmental Certifications | ENERGY STAR 9.0, EPEAT Gold Registered, ErP Lot 3, GREENGUARD, RoHS compliant, TCO Certified 10.0, TCO edge, EyeSafe Certified 2.0 |
| Quality Certifications | IP55-compliant (front face touch), Healthcare compliance Part of IEC 60601-1 / IEC 60601-1-2, SGS Super Quiet Grade 1, TÜV Rheinland Flicker Free, TÜV Rheinland Low Blue Light (hardware solution), Anti-dust |
| Durability Testing | MIL-STD-810H military test passed (Low Pressure, High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Fluid Contamination, Salt Fog) |
Key Features
Ideal For
FAQs
What is the maximum memory capacity of the ThinkCentre M90A G6?
The M90A G6 supports up to 64GB of DDR5-5600 RAM via two SO-DIMM slots with dual-channel capability. It ships with 16GB (2x 8GB) and can be upgraded by replacing or adding modules.
Can I expand storage on this all-in-one desktop?
Yes. The system includes one 512GB M.2 SSD and supports up to three M.2 drives total (each up to 2TB). Note that if you add a discrete NPU, the third SSD slot is unavailable due to physical constraints.
Does the M90A G6 have integrated AI capabilities?
Yes. The Intel Core Ultra 7 265 processor includes an integrated Intel AI Boost NPU delivering up to 13 TOPS, enabling AI-powered applications and future-ready computing without requiring discrete accelerators.
What display quality can I expect from the touchscreen?
The 23.8" FHD IPS touchscreen delivers 99% sRGB colour accuracy, 250 nits brightness, 120Hz refresh rate, and is certified eyesafe with hardware-based low blue light and flicker-free technology, making it excellent for colour-critical work.
What warranty and support does the M90A G6 include?
The system comes with a 3-year onsite warranty, meaning Lenovo technicians will service or repair it at your location if issues arise, minimising downtime for business operations.
Is this system suitable for regulated industries like healthcare?
Yes. The M90A G6 is part of IEC 60601-1 / IEC 60601-1-2 healthcare compliance standards and includes security features like TPM 2.0, Kensington locks, and camera privacy shutter, making it appropriate for healthcare and regulated environments.
What connectivity options are available?
The M90A G6 features Wi-Fi 7, Bluetooth 5.4, Gigabit Ethernet, Thunderbolt 4 with USB PD 65W charging, multiple USB 3.2 Gen 1 and Gen 2 ports, DisplayPort 1.4a, HDMI combo, and a 3.5mm audio jack for comprehensive peripheral and network integration.
How durable is the M90A G6 in harsh conditions?
The system has passed MIL-STD-810H military-grade testing covering extreme temperatures, humidity, vibration, shock, sand/dust, and contamination scenarios, ensuring reliability in demanding professional and industrial environments.
