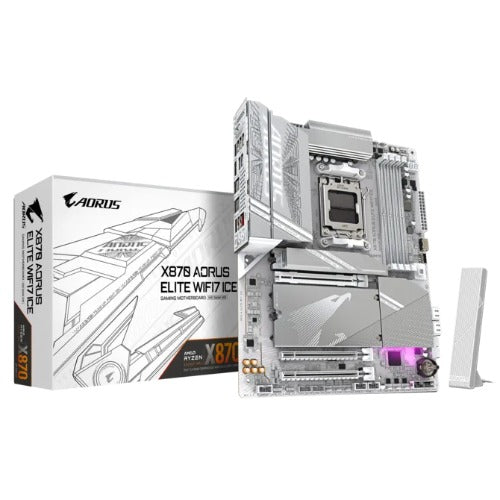

Gigabyte X870 AORUS ELITE WF7 ICE AMD AM5 ATX Motherboard
Gigabyte X870 AORUS ELITE WF7 ICE AMD AM5 ATX Motherboard
SKU:MBG-X870AELITEWF7ICE
The Gigabyte X870 AORUS ELITE WF7 ICE is an AMD AM5 ATX motherboard designed for Ryzen 9000, 8000, and 7000 series processors. Featuring 4x DDR5 slots, 3x PCIe x16, and comprehensive connectivity, it delivers reliable performance for gaming, content creation, and business workstations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-X870AELITEWF7ICE |
| Availability | Out of Stock |
Overview
- The Gigabyte X870 AORUS ELITE WF7 ICE is a premium AMD AM5 motherboard engineered for modern high-performance systems. Built on the X870 chipset, it provides seamless compatibility with AMD's latest Ryzen processors whilst delivering the connectivity and expansion options demanded by professionals and enthusiasts.
With support for up to 256 GB of DDR5 memory, the board scales effortlessly from gaming builds to workstation-class machines. The combination of three PCIe x16 slots, four M.2 connectors, and 2.5 GbE networking ensures you have the bandwidth and I/O flexibility for demanding applications.
Includes integrated management tools such as GIGABYTE Control Center (GCC), Q-Flash Plus for BIOS updates without a CPU, and Smart Backup for system protection. The ATX form factor fits standard tower cases, making it an excellent choice for businesses upgrading existing systems or building new infrastructure.
Specifications
| CPU Socket | AMD Socket AM5 |
|---|---|
| CPU Support | AMD Ryzen 9000, 8000, 7000 series processors |
| Chipset | AMD X870 |
| Form Factor | ATX |
| Dimensions | 305 mm x 244 mm |
| Memory Slots | 4x DDR5 DIMM |
| Maximum Memory | 256 GB (64 GB single DIMM capacity) |
| PCIe x16 Slots | 3x |
| M.2 Slots | 4x |
| SATA 6 Connectors | 4x |
| USB 3.2 Ports | 4x |
| USB 2.0 Headers | 4x |
| USB-C Ports | 2x |
| Networking | Realtek 2.5GbE LAN (2.5 Gbps, 1 Gbps, 100 Mbps) |
| Audio Codec | Realtek ALC1220 |
| Operating System Support | Windows 11 64-bit |
| Bundled Software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Additional Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Which AMD Ryzen processors are compatible with this motherboard?
The Gigabyte X870 AORUS ELITE WF7 ICE supports AMD Ryzen 9000, 8000, and 7000 series processors with AM5 socket compatibility.
How much DDR5 memory can this motherboard support?
The motherboard features 4 DDR5 DIMM slots supporting up to 256 GB of system memory, with maximum 64 GB per individual module.
What storage expansion options are available?
The board includes 4x M.2 NVMe slots for high-speed storage and 4x SATA 6 connectors for traditional drives, providing ample expansion flexibility.
Does this motherboard include Wi-Fi connectivity?
The X870 AORUS ELITE WF7 ICE features a 2.5GbE Realtek LAN chip for wired networking. Wi-Fi is not included; Wi-Fi capability is available in other models in the AORUS range.
Can I update the BIOS without a CPU installed?
Yes. The motherboard includes Q-Flash Plus technology, allowing BIOS updates without requiring a processor to be installed.
What is the warranty coverage?
The Gigabyte X870 AORUS ELITE WF7 ICE includes a 36-month manufacturer's warranty.
Is this motherboard suitable for business workstations?
Yes. The X870 AORUS ELITE WF7 ICE is suitable for business workstations and professional applications, offering robust DDR5 support, extensive I/O, and reliable performance for demanding workloads.
