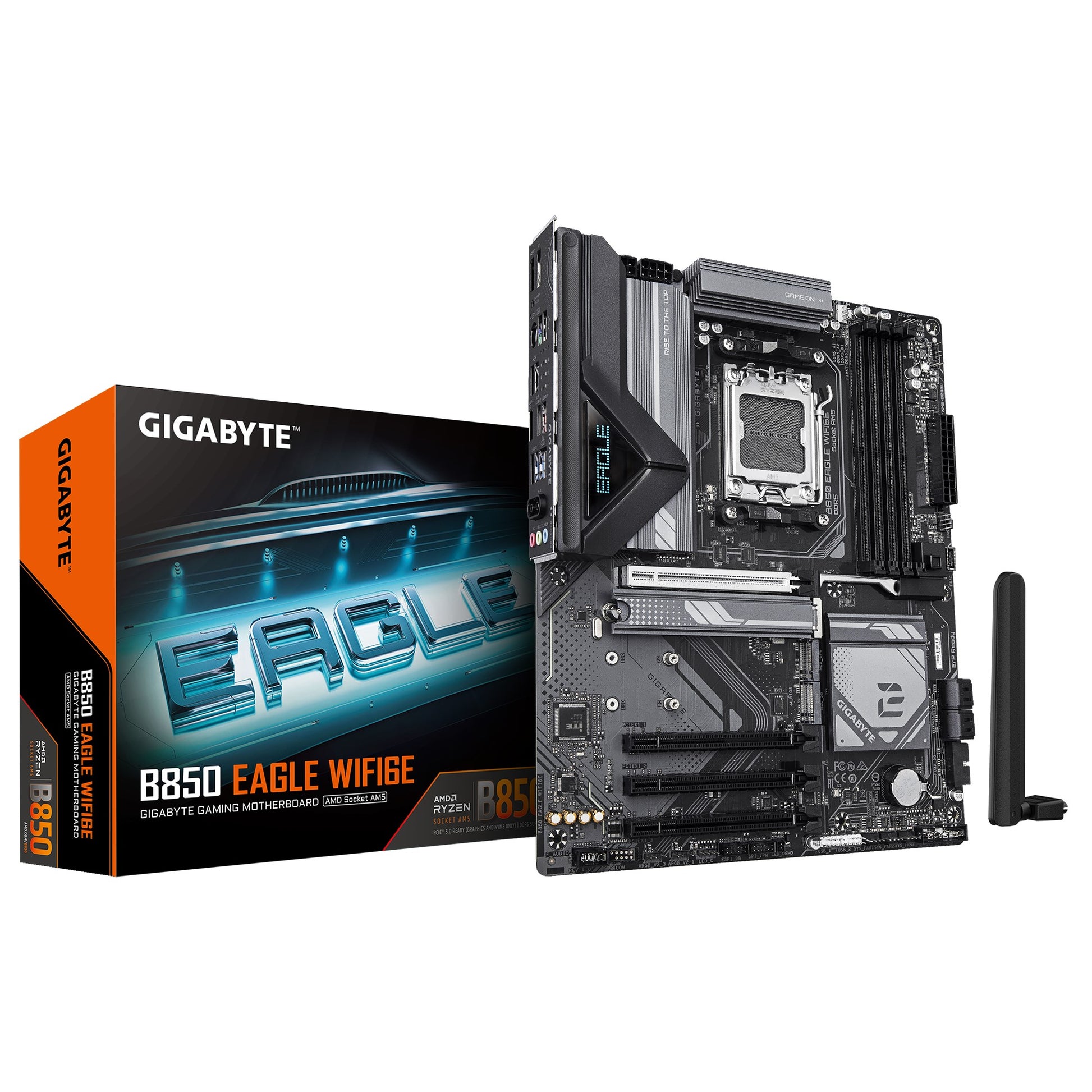

Gigabyte B850 EAGLE WIFI6E AMD AM5 Motherboard
Gigabyte B850 EAGLE WIFI6E AMD AM5 Motherboard
SKU:MBG-B850EAGLEWIFI6E
The Gigabyte B850 EAGLE WIFI6E is an AMD AM5 motherboard designed for mid-range Ryzen builds. Featuring Wi-Fi 6E connectivity, DDR5 memory support up to 256 GB, and extensive expansion options including PCIe slots and M.2 NVMe support, it delivers reliable performance for business workstations and gaming systems.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B850EAGLEWIFI6E |
| Availability | In Stock |
Overview
- The Gigabyte B850 EAGLE WIFI6E is a feature-rich AMD AM5 motherboard built on the B850 chipset, supporting the latest Ryzen 9000, 8000, and 7000 Series processors. This motherboard combines modern connectivity with extensive expansion capabilities, making it suitable for both business and enthusiast builds.
With Wi-Fi 6E connectivity, Gigabit Ethernet, and robust power delivery, the B850 EAGLE WIFI6E handles demanding workloads effectively. The motherboard supports up to 256 GB of DDR5 memory, enabling smooth multitasking and professional applications. Three M.2 NVMe slots with PCIe 5.0 support (depending on CPU generation) provide fast storage for system drives and data, while RAID functionality protects critical data.
Expansion options include four PCI Express x16 slots for graphics cards and expansion cards, plus multiple USB 3.2 ports for peripherals. The 36-month warranty provides peace of mind for business and enterprise deployments.
Specifications
| Socket | AMD AM5 |
|---|---|
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen 9000, 8000, and 7000 Series Processors |
| Memory Type | DDR5 |
| Memory Slots | 4 x DDR5 DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| Memory Speeds | DDR5-8200 to DDR5-4400 MT/s (support varies by configuration) |
| Memory Features | AMD EXPO, XMP support |
| Video Output - DisplayPort | 1 x DisplayPort 1.4 (up to 3840x2160@144 Hz with HDR) |
| Video Output - HDMI | 1 x HDMI 2.1 (up to 4096x2160@60 Hz with HDCP 2.3 and HDR) |
| Network - Ethernet | 1 x Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| Wireless | Intel Wi-Fi 6E AX210 |
| PCI Express Slots | 1 x PCIe x16 (CPU-integrated, PCIe 5.0/4.0 support varies by CPU) + 3 x PCIe x16 (Chipset, PCIe 3.0 x1) |
| M.2 Slots | 3 x M.2 (Type 2280/22110) - 1 x CPU PCIe 5.0/4.0, 1 x CPU PCIe 4.0, 1 x Chipset PCIe 4.0 x2 |
| SATA Ports | 4 x SATA 6Gb/s |
| Storage RAID | RAID 0/1/5/10 for NVMe; RAID 0/1/10 for SATA |
| USB Ports - Type-C | 2 x USB 3.2 Gen 1 Type-C (1 rear, 1 internal header) |
| USB Ports - Type-A Gen 2 | 2 x USB 3.2 Gen 2 Type-A (rear panel) |
| USB Ports - Type-A Gen 1 | 4 x USB 3.2 Gen 1 Type-A (2 rear, 2 internal header) |
| USB Ports - USB 2.0 | 8 x USB 2.0/1.1 (4 rear panel, 4 internal headers) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Which AMD Ryzen processors does the B850 EAGLE WIFI6E support?
The motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors using the AM5 socket. For the complete CPU support list and compatibility with specific processor revisions, refer to Gigabyte's official website.
What is the maximum memory capacity supported?
The B850 EAGLE WIFI6E supports up to 256 GB of DDR5 memory across its 4 DIMM slots (64 GB maximum per DIMM). Memory speed and stability depend on CPU and configuration; check Gigabyte's memory support list for optimal compatibility.
Does this motherboard support PCIe 5.0?
The primary PCI Express x16 slot supports PCIe 5.0 when paired with AMD Ryzen 9000 or 7000 Series processors. Ryzen 8000 Series support PCIe 4.0. The three additional x16 slots run at PCIe 3.0 x1 speed.
How many M.2 NVMe slots does it have?
The motherboard has 3 x M.2 slots supporting both 2280 and 22110 form factors. One is CPU-integrated with PCIe 5.0/4.0 support (depending on CPU), one is CPU-integrated with PCIe 4.0, and one is Chipset-integrated with PCIe 4.0 x2.
Is Wi-Fi 6E included?
Yes, the B850 EAGLE WIFI6E features Intel Wi-Fi 6E (AX210) for wireless connectivity, along with Realtek Gigabit Ethernet for wired networking.
What storage RAID options are available?
The motherboard supports RAID 0, 1, and 10 for both NVMe and SATA drives. RAID 5 is available for NVMe drives when using AMD Ryzen 9000 Series processors.
How many USB ports are available?
The B850 EAGLE WIFI6E provides multiple USB options: 2 x USB 3.2 Gen 2 Type-A (rear), 1 x USB 3.2 Gen 1 Type-C (rear), 4 x USB 3.2 Gen 1 Type-A (2 rear, 2 internal headers), and 8 x USB 2.0/1.1 ports (4 rear, 4 internal headers).
What warranty is included?
The Gigabyte B850 EAGLE WIFI6E includes a 36-month manufacturer's warranty, providing comprehensive protection for business and professional deployments.
