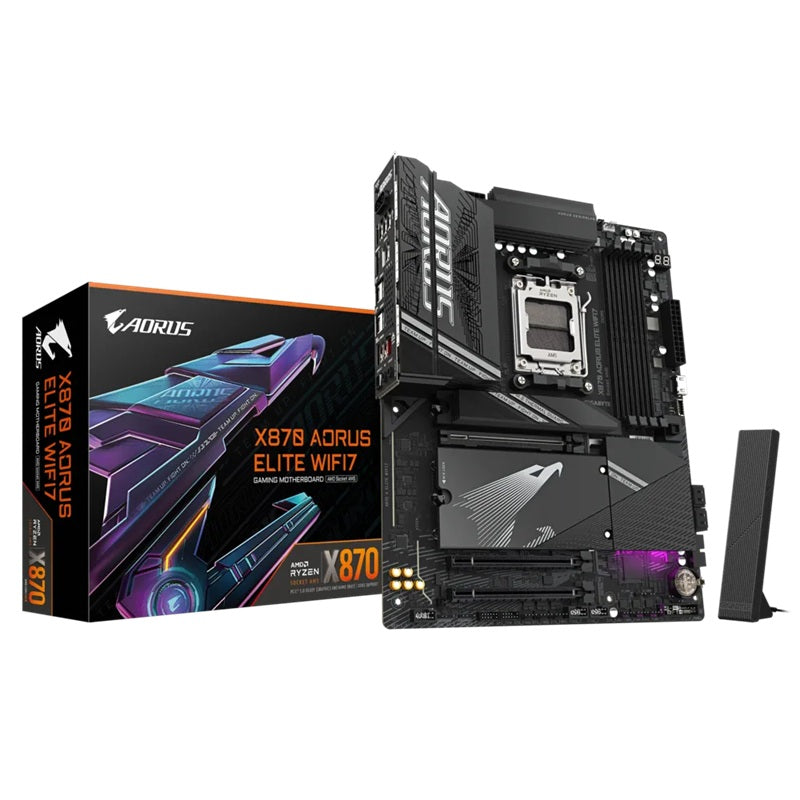

Gigabyte X870 AORUS ELITE WIFI7 AMD AM5 ATX Motherboard
Gigabyte X870 AORUS ELITE WIFI7 AMD AM5 ATX Motherboard
SKU:MBG-X870AELITEWF7
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-X870AELITEWF7 |
| Availability | Out of Stock |
Overview
- The Gigabyte X870 AORUS ELITE WIFI7 is a premium ATX motherboard built on AMD's X870 chipset, delivering full support for current and next-generation Ryzen processors. With 4 DDR5 slots capable of supporting up to 256GB, quad M.2 storage, and triple PCIe x16 slots, this board offers substantial expansion capacity for demanding professional and gaming applications.
Wi-Fi 7 connectivity ensures cutting-edge wireless performance, whilst the 2.5GbE Realtek LAN provides reliable wired networking with bandwidth management capabilities. The comprehensive I/O suite includes dual USB-C ports, multiple USB 3.2 headers, and legacy USB 2.0 support for broad device compatibility.
Built with AORUS engineering standards, this motherboard includes integrated tools like Q-Flash BIOS update functionality, Smart Backup, and GIGABYTE Control Center for system management. The ATX form factor provides excellent cooling and component spacing, making it ideal for well-ventilated cases requiring maximum performance and stability.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | X870 AORUS ELITE WIFI7 |
| Chipset | AMD X870 |
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen 9000, 8000, and 7000 Series Processors |
| Form Factor | ATX |
| Dimensions | 305mm x 244mm |
| Memory Slots | 4x DDR5 DIMM |
| Maximum Memory | 256GB |
| PCI Express Slots | 3x PCIe x16 |
| M.2 Slots | 4x M.2 |
| SATA Ports | 4x SATA 6Gbps |
| USB 3.2 Headers | 4x |
| USB 2.0 Headers | 4x |
| USB-C Ports | 2x |
| Audio Codec | Realtek ALC1220 |
| LAN Chip | Realtek 2.5GbE |
| LAN Speed | 2.5 Gbps / 1 Gbps / 100 Mbps |
| Wireless | Wi-Fi 7 |
| BIOS Features | Q-Flash, Q-Flash Plus, Smart Backup |
| Software Included | Norton Internet Security (OEM), LAN Bandwidth Management |
| Operating System Support | Windows 11 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What AMD Ryzen processors are compatible with the X870 AORUS ELITE WIFI7?
This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors via the AM5 socket. Check the motherboard's QVL (Qualified Vendor List) for specific CPU compatibility.
What is the maximum memory capacity supported?
The X870 AORUS ELITE WIFI7 features 4 DDR5 DIMM slots supporting up to 256GB of system memory (64GB per single DIMM).
Does this motherboard support PCIe 5.0?
The specifications provided confirm 3x PCIe x16 slots. Refer to the detailed motherboard manual or Gigabyte's official product page for exact PCIe generation specifications.
What storage connectivity options are available?
The motherboard includes 4x M.2 slots for NVMe SSDs and 4x SATA 6Gbps ports for traditional drives, providing flexible storage configuration options.
Is Wi-Fi 7 included?
Yes, the X870 AORUS ELITE WIFI7 includes integrated Wi-Fi 7 connectivity for ultra-fast wireless networking.
What warranty period is included?
Gigabyte provides a 36-month manufacturer warranty with this motherboard.
Can I update the BIOS easily?
Yes, the motherboard supports Q-Flash and Q-Flash Plus, enabling convenient BIOS updates without requiring a CPU installed.
