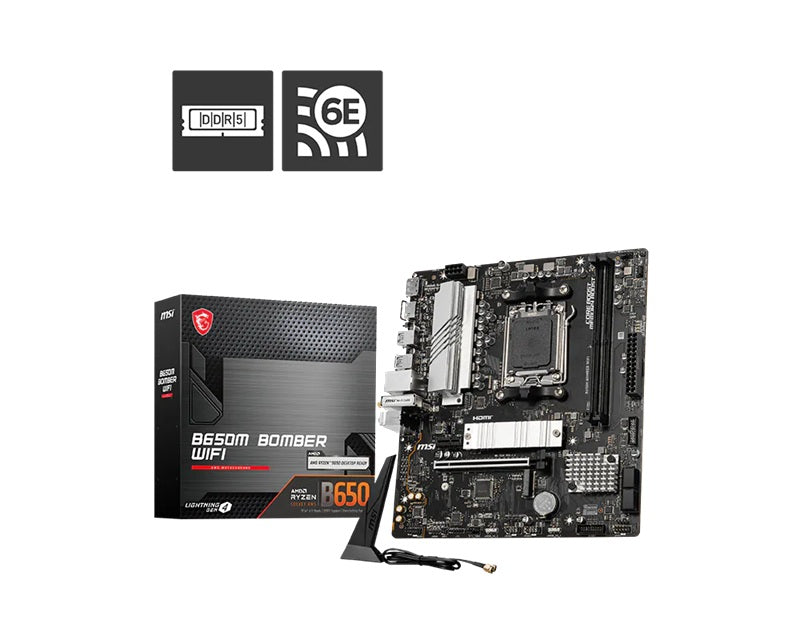

MSI B650M BOMBER WIFI AMD AM5 mATX Motherboard
MSI B650M BOMBER WIFI AMD AM5 mATX Motherboard
SKU:MBM-B650M-BOMBERWIFI
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-B650M-BOMBERWIFI |
| Availability | In Stock |
Overview
- The MSI B650M BOMBER WIFI is a feature-rich mATX motherboard built on the AMD B650 chipset, delivering solid performance for gaming, content creation, and professional workloads. Its compact form factor makes it ideal for builds where space is a consideration, without compromising connectivity or expansion options.
With support for DDR5 memory up to 128GB, dual PCIe 4.0 M.2 slots for high-speed NVMe drives, and 4 SATA connections, this board handles modern storage-intensive applications with ease. The integrated WiFi eliminates the need for additional networking cards, simplifying builds and reducing clutter.
The motherboard supports AMD Ryzen 9000, 8000, and 7000 series processors, offering flexibility across current and near-future processor generations. AMD EXPO support enables users to leverage optimised DDR5 profiles for enhanced memory performance and system stability.
Specifications
| Brand | MSI |
|---|---|
| Model | B650M BOMBER WIFI |
| Chipset | AMD B650 |
| Socket | AM5 |
| Form Factor | mATX (226mm x 243.84mm) |
| CPU Support | AMD Ryzen 9000, 8000, 7000 series processors |
| Memory Slots | 2x DDR5 DIMM |
| Maximum Memory | 128GB |
| Memory Support | DDR5 5000–7800+ MHz (JEDEC and OC profiles) |
| Memory Features | Dual-channel, non-ECC, AMD EXPO support |
| Expansion Slots | 1x PCI-E x16 (CPU), 1x PCI-E x1 (Chipset, PCIe 3.0) |
| M.2 Slots | 2x M.2 (both support PCIe 4.0 x4, 2280 form factor) |
| SATA Ports | 4x SATA 6G |
| USB Rear | 2x USB 2.0, 3x USB 5Gbps Type A, 1x USB 5Gbps Type C |
| USB Front Headers | 4x USB 2.0, 4x USB 5Gbps Type A |
| Graphics Output | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz) |
| Networking | Integrated WiFi |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What AMD Ryzen processors does the B650M BOMBER WIFI support?
This motherboard supports AMD Ryzen 9000, 8000, and 7000 series processors in the AM5 socket. Compatibility with specific processor models may vary depending on BIOS version.
How much DDR5 memory can this motherboard support?
The B650M BOMBER WIFI supports up to 128GB of DDR5 memory across two DIMM slots, with speeds ranging from 5000 MT/s (JEDEC) to 7800+ MHz (overclocked).
Does it have WiFi built-in?
Yes, the B650M BOMBER WIFI includes integrated WiFi connectivity, eliminating the need for a separate wireless adapter.
How many NVMe drives can I install?
The motherboard has 2x M.2 slots, both supporting PCIe 4.0 x4 for fast NVMe SSDs. Both slots accommodate 2280-size drives.
What is the difference between the two M.2 slots?
Both M.2_1 and M.2_2 support PCIe 4.0 x4 directly from the CPU. However, M.2_2 becomes unavailable when using Ryzen 8500 or 8300 series processors.
Can I use DDR4 memory with this motherboard?
No, this motherboard is DDR5-only. It does not support DDR4 memory.
Is this motherboard suitable for overclocking?
Yes, it supports AMD EXPO overclocking profiles for optimised DDR5 performance, as well as manual CPU overclocking via BIOS settings.
What is the warranty period?
The MSI B650M BOMBER WIFI comes with a 36-month manufacturer warranty.
