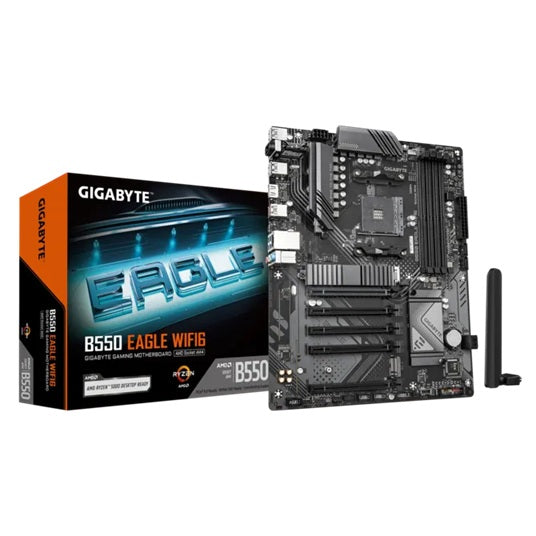

Gigabyte B550 EAGLE WIFI6 AMD ATX Motherboard
Gigabyte B550 EAGLE WIFI6 AMD ATX Motherboard
SKU:MBG-B550EAGLEWIFI6
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B550EAGLEWIFI6 |
| Availability | In Stock |
Overview
- The Gigabyte B550 EAGLE WIFI6 is a feature-rich ATX motherboard built around the AMD B550 chipset, delivering excellent compatibility with Ryzen 3000–5000 series processors. It combines modern connectivity standards with reliable performance, making it a solid choice for workstations, gaming builds, and business systems.
Key strengths include PCIe 4.0 support for next-generation storage speeds, dual M.2 slots for flexible drive configurations, and integrated Wi-Fi 6 and Bluetooth 5.3 that eliminate the need for separate expansion cards. The board supports up to 128GB of DDR4 memory with XMP profiles, offering plenty of headroom for multitasking and professional applications.
With 4× SATA 6Gb/s ports and RAID support, you can build redundant storage arrays for improved reliability. The HDMI 2.1 output handles 4K video output from integrated graphics, suitable for office environments or secondary displays. Backed by a 3-year warranty, this motherboard is a dependable foundation for systems requiring both performance and connectivity.
Specifications
| chipset | AMD B550 |
|---|---|
| socket | AM4 |
| cpu_support | Ryzen 3000, 3000G, 4000G, 5000, 5000G series |
| form_factor | ATX (30.5 × 24.4 cm) |
| memory_slots | 4× DDR4 DIMM |
| memory_capacity | Up to 128GB |
| memory_speed | 2133–3200 MT/s |
| memory_features | Dual-channel, XMP, ECC and Non-ECC support |
| pcie_slots | 1× PCIe x16 (4.0 for Ryzen 3000/5000, 3.0 for G-Series), 4× PCIe x1 (3.0) |
| nvme_slots | 2× M.2 (PCIe 4.0/3.0, CPU-dependent) |
| sata_ports | 4× SATA 6Gb/s |
| raid_support | RAID 0, 1, 10 (NVMe and SATA) |
| networking | Realtek Gigabit LAN, Wi-Fi 6, Bluetooth 5.3 |
| audio | Realtek HD Audio, up to 7.1-channel |
| usb_ports | USB-C (rear and header), USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0 |
| video_output | 1× HDMI 2.1 (up to 4K@60Hz) |
| integrated_graphics | AMD Radeon Graphics (CPU-dependent, max 16GB shared memory) |
| internal_headers | 24-pin ATX, 8-pin CPU power, CPU fan and pump header, 3× system fan headers, RGB and ARGB headers, TPM header, Clear CMOS jumper |
| bios | AMI UEFI, 128 Mbit flash, Q-Flash and Q-Flash Plus |
| os_support | Windows 10 / 11 (64-bit) |
| warranty | 36 months |
Key Features
Ideal For
FAQs
What Ryzen processors does the Gigabyte B550 EAGLE WIFI6 support?
The motherboard supports AMD Ryzen 3000, 3000G, 4000G, 5000, and 5000G series processors with AM4 socket. Compatibility depends on the specific CPU model and BIOS version.
Does this motherboard support PCIe 4.0?
Yes. The primary PCIe x16 slot supports PCIe 4.0 when paired with Ryzen 3000 or 5000 series processors. G-Series processors and secondary slots use PCIe 3.0.
What is the maximum memory capacity?
The B550 EAGLE WIFI6 supports up to 128GB of DDR4 memory across four DIMM slots. It supports both ECC and Non-ECC unbuffered modules with XMP profiles.
Can I use both M.2 slots simultaneously?
Yes, both M.2 slots can be used simultaneously. One slot supports PCIe 4.0 (on Ryzen 3000/5000), while the other runs at PCIe 3.0. Both support NVMe drives.
Does the motherboard have built-in Wi-Fi?
Yes. The board includes Wi-Fi 6 and Bluetooth 5.3, eliminating the need for a separate wireless expansion card.
What storage options are available?
You can install two M.2 NVMe drives and four SATA 6Gb/s drives. RAID 0, 1, and 10 are supported for both NVMe and SATA storage.
Is there integrated graphics support?
Yes. AMD Radeon Graphics are integrated in compatible Ryzen processors. The motherboard provides one HDMI 2.1 output supporting up to 4K@60Hz, with up to 16GB shared memory allocation.
What warranty is included?
The Gigabyte B550 EAGLE WIFI6 comes with a 3-year manufacturer warranty.
