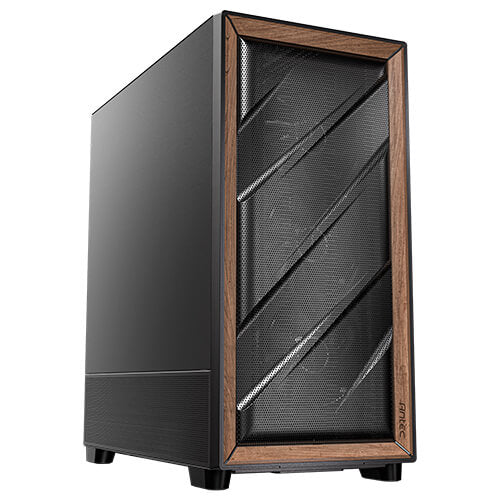

Antec Flux SE ATX Mid-Tower PC Case with 5 PWM Fans
Antec Flux SE ATX Mid-Tower PC Case with 5 PWM Fans
SKU:CAA-FLUX-SE
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Cases & Accessories |
| SKU | CAA-FLUX-SE |
| Availability | In Stock |
Overview
- The Antec Flux SE is a mid-tower case engineered for thermal excellence. Built on Antec's F-LUX (Flow Luxury) platform, it combines ultra-efficient case structure design with strategic ventilation channels that prioritise GPU cooling and system airflow. The multi-directional vent design features extensive air intakes at the bottom and lower sides, complemented by top vents and large-area mesh front panel, creating a dedicated airflow pathway.
Included with five PWM fans, the Flux SE delivers balanced cooling out of the box. The case supports a broad range of motherboard form factors including E-ATX, ATX, Micro-ATX, and ITX, making it suitable for diverse system configurations. Sound-dampening side panels reduce operational noise, whilst the spacious interior accommodates radiators up to 420mm on the front.
Connectivity options include dual USB 3.0 ports, USB Type-C 10Gbps, and a headphone/mic combo jack for modern peripheral requirements. Expansion flexibility is ensured with 7 PCIe slots, multiple drive bay configurations, and extensive fan mount points throughout the case.
Specifications
| Form Factor | Mid Tower |
|---|---|
| Dimensions | 484 x 239 x 502 mm (D x W x H) |
| Materials | Steel, Plastic, and Walnut Wood Trim |
| Motherboard Support | E-ATX (≤330mm), ATX, Micro-ATX, ITX |
| Expansion Slots | 7 |
| Drive Bays 3.5" | 2 |
| Drive Bays 2.5" | 3 total (2 standard + 1 additional) |
| Front Panel Connectivity | Power button, Reset button, USB 3.0 x 2, USB Type-C 10Gbps x 1, Headphone/Mic Combo Jack |
| Side Panels | Sound-dampening (both sides) |
| Included Fans | 3 x 120mm PWM fans (front) + 1 x 120mm PWM Reverse fan (PSU shroud) + 1 x 140mm PWM fan (rear) |
| Front Fan Support | 3 x 120mm or 3 x 140mm |
| Top Fan Support | 3 x 120mm or 2 x 140mm |
| PSU Shroud Fan Support | 2 x 120mm or 2 x 140mm |
| Rear Fan Support | 1 x 120mm or 1 x 140mm |
| Front Radiator Support | 120mm, 140mm, 240mm, 280mm, 360mm, 420mm |
| Top Radiator Support | 120mm, 140mm, 240mm, 280mm, 360mm |
| Rear Radiator Support | 120mm, 140mm |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What motherboard sizes does the Antec Flux SE support?
The Flux SE supports E-ATX (up to 330mm), ATX, Micro-ATX, and ITX form factors, making it compatible with a wide range of modern motherboards.
How many fans are included with the case?
The case includes five PWM fans: three 120mm fans on the front, one 120mm reverse fan on the PSU shroud, and one 140mm fan on the rear.
What radiator sizes can be mounted in this case?
Front supports up to 420mm radiators, top supports up to 360mm, and rear supports up to 140mm. This provides extensive liquid cooling flexibility.
Does the Flux SE have sound dampening?
Yes, both side panels feature sound-dampening material to reduce operational noise during use.
What front panel connectivity options are available?
The front panel includes dual USB 3.0 ports, USB Type-C 10Gbps, a headphone/mic combo jack, plus power and reset buttons.
How many expansion slots and drive bays does it have?
The case provides 7 PCIe expansion slots and supports 2 x 3.5" drives, 2 x 2.5" drives, plus 1 additional 2.5" drive bay for flexible storage configuration.
Is the Flux SE suitable for liquid cooling builds?
Yes, the extensive radiator support (420mm front, 360mm top, 140mm rear) and multi-directional ventilation design make it ideal for custom water-cooling systems.
What is the warranty period?
The Antec Flux SE includes a 24-month warranty covering manufacturing defects.
