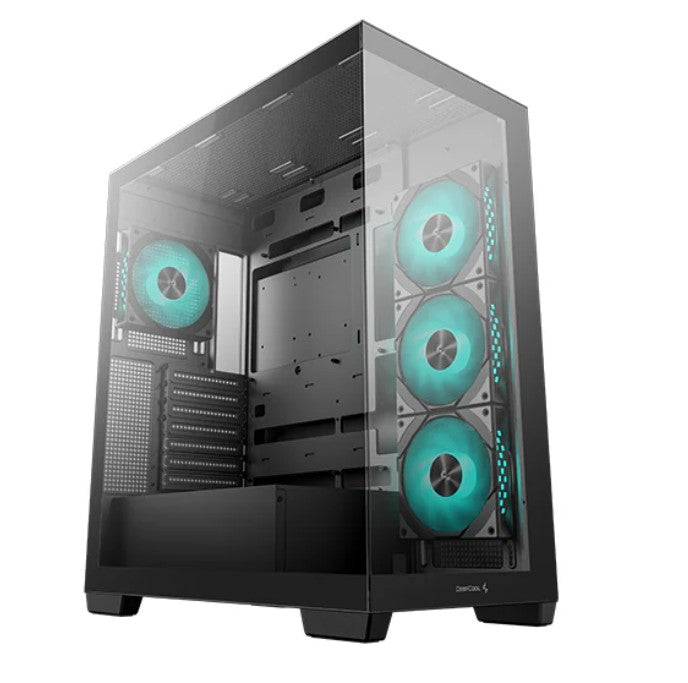

DeepCool CG580 4F Panoramic ATX Mid-Tower Case
DeepCool CG580 4F Panoramic ATX Mid-Tower Case
SKU:CAD-CG580-4F
The DeepCool CG580 4F is a panoramic ATX mid-tower case designed for high-performance builds. Featuring 4 pre-installed ARGB fans, 270-degree tempered glass panels, and support for up to 360mm radiators, it delivers excellent cooling capacity and component visibility for custom PC builders.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Cases & Accessories |
| SKU | CAD-CG580-4F |
| Availability | In Stock |
Overview
- The DeepCool CG580 4F is a single-chamber ATX mid-tower case that combines practical cooling performance with premium aesthetics. Its distinctive 270-degree panoramic design features tempered glass panels on both the front and side, allowing builders to fully showcase their hardware while maintaining excellent component visibility. The no A-pillar construction enhances the viewing experience and provides unobstructed cable routing.
Equipped with 4 pre-installed ARGB fans and flexible mounting options, the CG580 4F supports advanced cooling configurations including up to 2x 360mm radiators on the top and side panels. This makes it ideal for high-performance builds, gaming systems, and liquid cooling enthusiasts. The case accommodates standard ATX, Micro-ATX, and Mini-ITX motherboards, with ample space for graphics cards up to 410mm in length (subject to radiator configuration) and CPU coolers up to 176mm.
Connectivity is modern and convenient, with dual USB 3.0 ports, USB Type-C Gen 2, and dedicated audio connectors on the front I/O. The case includes 2x 3.5-inch and 2x 2.5-inch drive bays, providing sufficient storage options for most builds. Premium materials including ABS, SGCC steel, and tempered glass ensure durability and visual appeal.
Specifications
| Brand | DeepCool |
|---|---|
| Model | CG580 4F |
| Product Type | ATX Mid-Tower Case |
| Dimensions | 437 × 235 × 501 mm (L × W × H) |
| Net Weight | 8.7 kg |
| Materials | ABS + SGCC + Tempered Glass |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 7 |
| Pre-Installed Fans | 4× 120mm ARGB (3× side, 1× rear) |
| Front Fan Support | Not applicable |
| Top Fan Support | 3× 120mm or 2× 140mm |
| Side Fan Support | 3× 120mm |
| Rear Fan Support | 1× 120mm or 1× 140mm |
| Bottom Fan Support | 1× 120mm |
| Top Radiator Support | 120/140/240/280/360mm |
| Side Radiator Support | 120/240/360mm |
| Rear Radiator Support | 120/140mm |
| Front Radiator Support | Not applicable |
| Maximum Radiator Configuration | 2× 360mm (top and side) |
| CPU Cooler Height Limit | 176 mm |
| GPU Length Limit | 410 mm (262 mm with side-mounted 360mm radiator) |
| 3.5-inch Drive Bays | 2 |
| 2.5-inch Drive Bays | 2 |
| Front I/O Ports | 2× USB 3.0, 1× USB Type-C Gen 2, Audio and Microphone |
| Power Supply Type | ATX PS2 (maximum length 210 mm) |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What motherboard sizes does the DeepCool CG580 4F support?
The CG580 4F supports ATX, Micro-ATX, and Mini-ITX motherboards, making it compatible with a wide range of building configurations.
How many radiators can this case accommodate?
The case supports up to 2× 360mm radiators—one on the top panel and one on the side panel—ideal for custom liquid cooling loops.
What fans are pre-installed in the CG580 4F?
The case comes with 4 pre-installed 120mm ARGB fans: 3 on the side panel and 1 on the rear. All feature PWM control for speed adjustment.
What is the maximum GPU length this case can accommodate?
The case supports graphics cards up to 410mm in length. If a 360mm radiator and fan set are mounted on the side, the limit reduces to 262mm.
Does the CG580 4F include a power supply?
No, the case does not include a power supply. It is compatible with standard ATX PS2 power supplies up to 210mm in length.
What cooling options are available?
The case offers flexible cooling with pre-installed fans and support for multiple additional fan configurations on the top, side, rear, and bottom. It also supports large radiators for liquid cooling enthusiasts.
How much storage capacity does the CG580 4F provide?
The case includes 2× 3.5-inch drive bays and 2× 2.5-inch drive bays, supporting both traditional hard drives and solid-state drives.
What front connectivity ports are available?
The front I/O includes 2× USB 3.0 ports, 1× USB Type-C Gen 2 connector, and dedicated audio and microphone connectors.
