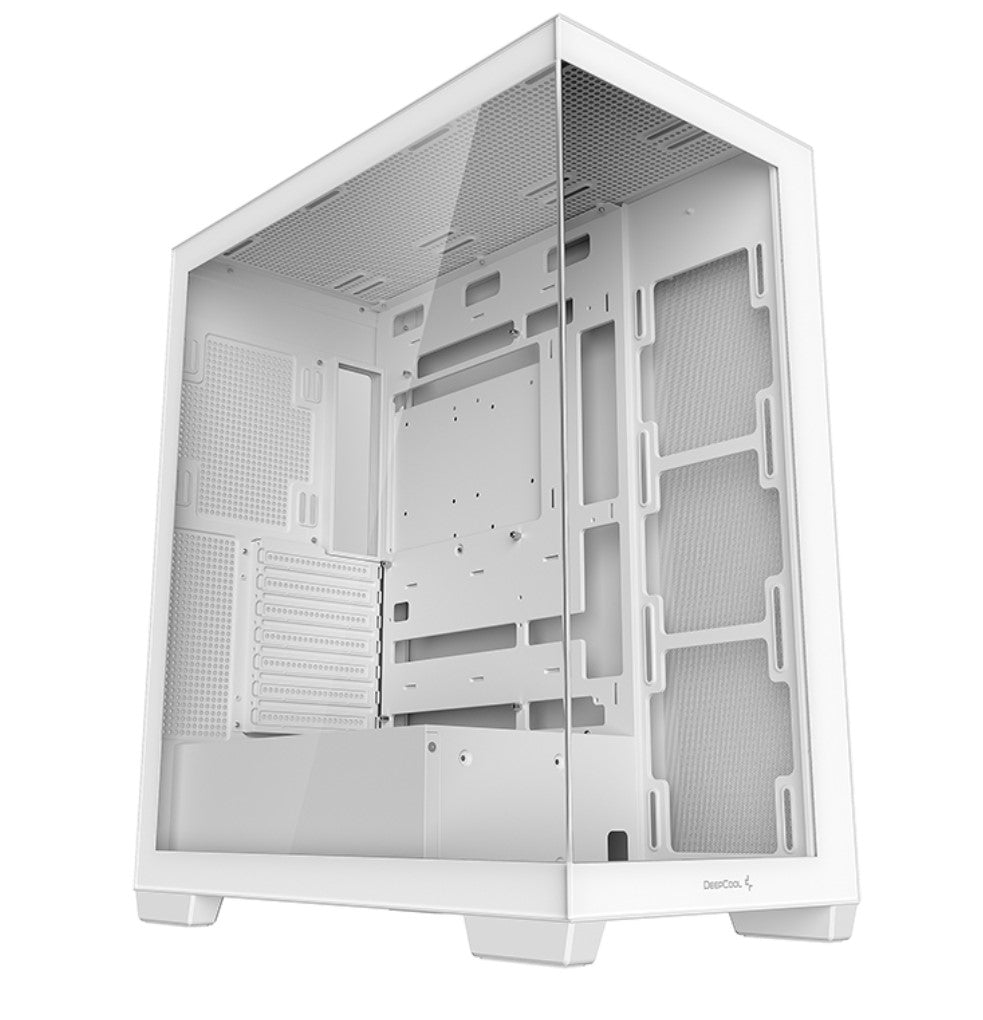

DeepCool CG580 White Panoramic ATX Mid-Tower Case
DeepCool CG580 White Panoramic ATX Mid-Tower Case
SKU:CAD-CG580-WH
The DeepCool CG580 is a white panoramic ATX mid-tower case designed for high-performance PC builds. Featuring tempered glass construction, support for up to 2×360mm radiators, and flexible fan configurations, it delivers excellent cooling potential and component visibility for PC enthusiasts and system builders.
Couldn't load pickup availability
- See our return policy
- 12 Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Cases & Accessories |
| SKU | CAD-CG580-WH |
| Availability | In Stock |
Overview
- The DeepCool CG580 is a premium white panoramic mid-tower case built around a single-chamber design that prioritises both functionality and visual appeal. Its expansive tempered glass panels on the front and side showcase your components while maintaining efficient airflow management.
The case excels in cooling flexibility with support for 2×360mm radiators and comprehensive fan mounting options across multiple locations—front, top, side, rear, and bottom. This modularity suits advanced liquid cooling loops and custom air cooling configurations. With no pre-installed fans, you have complete control over your thermal solution, choosing fans that match your performance and noise preferences.
The CG580 accommodates standard ATX, Micro-ATX, and Mini-ITX motherboards, along with graphics cards up to 410mm in length and CPU coolers up to 176mm tall. The front panel includes dual USB 3.0 ports and audio I/O, providing convenient connectivity for high-speed peripherals and headsets. Storage options include 2×3.5-inch bays and 3×2.5-inch drive bays, offering flexibility for mixed storage configurations.
Specifications
| case_type | ATX Mid-Tower |
|---|---|
| exterior_dimensions | 437×235×501mm (L×W×H) |
| net_weight | 7.9kg |
| materials | ABS + SGCC + Tempered Glass |
| motherboard_support | ATX, Micro-ATX, Mini-ITX |
| expansion_slots | 7 |
| drive_bays_3_5_inch | 2 |
| drive_bays_2_5_inch | 3 (2 + 1) |
| front_io_ports | 2×USB 3.0, 1×Audio Jack, Power Button, Reset Button |
| fan_support_front | Not supported |
| fan_support_top | 3×120mm or 2×140mm |
| fan_support_side | 3×120mm |
| fan_support_rear | 1×120mm or 1×140mm |
| fan_support_bottom | 1×120mm (3.5-inch HDD bay alternative) |
| fan_support_psu_shroud | 2×120mm |
| radiator_support_top | 120/140/240/280/360mm |
| radiator_support_side | 120/240/360mm |
| radiator_support_rear | 120/140mm |
| cpu_cooler_height_limit | 176mm |
| gpu_length_limit | 410mm (262mm with side-mounted 360mm radiator) |
| power_supply_type | ATX PS2 (max length 210mm) |
| pre_installed_fans | None |
| warranty_months | 12 |
Key Features
Ideal For
FAQs
Does the CG580 case include cooling fans?
No, the CG580 includes no pre-installed fans. This allows you to select and install your own cooling fans to match your performance and noise requirements.
What size radiators does the CG580 support?
The case supports radiators up to 360mm. Top mounting allows 120/140/240/280/360mm radiators, side mounting supports 120/240/360mm, and rear mounting supports 120/140mm radiators.
Can I fit a high-end graphics card in the CG580?
Yes, the case accommodates graphics cards up to 410mm in length. However, if you mount a 360mm radiator and fans on the side, the GPU length limit reduces to 262mm.
What motherboard sizes are compatible?
The CG580 supports ATX, Micro-ATX, and Mini-ITX motherboards with standard rear connector positioning.
What is the maximum CPU cooler height supported?
The case supports CPU coolers up to 176mm in height, accommodating most high-performance air cooling solutions.
How much storage can the CG580 accommodate?
The case includes 2×3.5-inch bays for HDDs and 3×2.5-inch bays for SSDs, providing flexible mixed storage configurations.
Is the tempered glass removable for cleaning?
Yes, the tempered glass panels are removable for interior cleaning and component installation. The exact removal procedure is detailed in the product manual.
