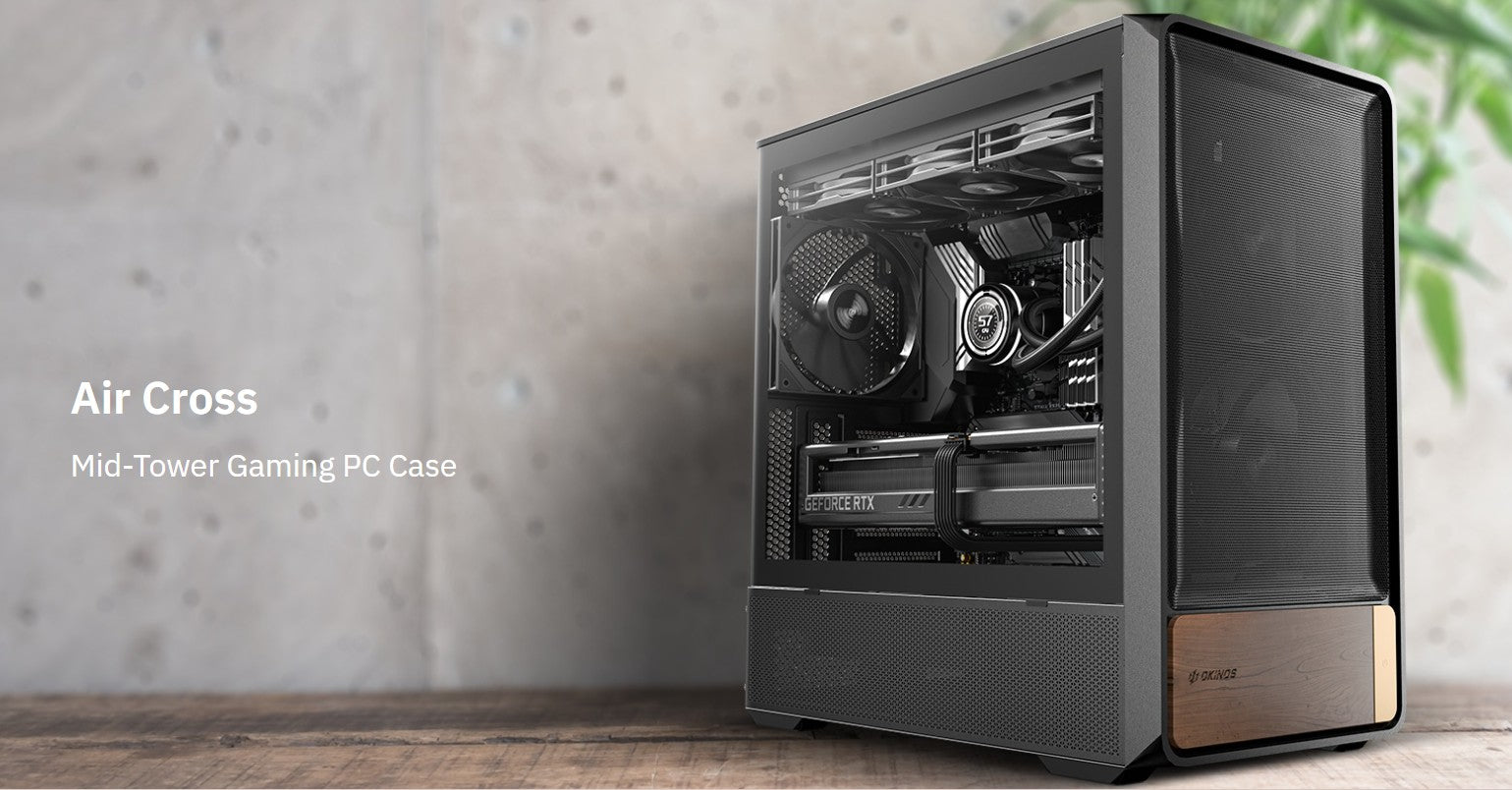

OKINOS Air Cross ATX Mid Tower Case with Tempered Glass
OKINOS Air Cross ATX Mid Tower Case with Tempered Glass
SKU:CAO-AIRCROSS
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | OKINOS |
|---|---|
| Category | Cases & Accessories |
| SKU | CAO-AIRCROSS |
| Availability | In Stock |
Overview
- The OKINOS Air Cross is a premium mid tower case engineered for builders who demand both performance and aesthetics. Its innovative dual-channel airflow design separates CPU and GPU cooling paths, ensuring optimal thermal performance across all components. Pre-installed with five high-performance fans, the case is ready to deliver superior cooling straight out of the box.
Built for modern motherboards, the Air Cross fully supports BTF (Back-Connect) designs, enabling completely clean cable routing for a professional interior appearance. The tool-less design and removable tempered glass panels make installation and maintenance effortless, while the integrated GPU support bracket protects expensive graphics cards from sagging.
With support for radiators up to 360mm and generous clearance for large CPU coolers and power supplies, the Air Cross accommodates high-end components without compromise. Premium walnut wood accents and a custom Starlight power button add distinctive styling to any desk or setup.
Specifications
| Brand | OKINOS |
|---|---|
| Model | Air Cross |
| Product Type | ATX Mid Tower Case |
| Form Factor | Mid Tower |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Dimensions (D x W x H) | 468 x 238 x 462 mm |
| Materials | Steel, Plastic, Wood |
| Side Panel | 4mm Tempered Glass |
| Expansion Slots | 7 |
| Drive Bays | {"3.5-inch"=>"1", "2.5-inch"=>"2"} |
| Front I/O | Power button, Reset button, USB 3.0 (x2), USB Type-C 3.2 Gen 2 (10Gbps) (x1), 3.5mm headphone/microphone combo jack |
| Fan Support | {"Front"=>"2x 140mm", "Top"=>"3x 120mm or 2x 140mm", "Rear"=>"1x 120mm or 1x 140mm", "PSU Shroud"=>"2x 120mm"} |
| Pre-installed Fans | 2x 140mm H14C PWM front, 2x 120mm H12CR PWM reverse (PSU shroud), 1x 140mm H14 PWM rear |
| Radiator Support | {"Top"=>"360mm, 280mm, 240mm, 140mm, 120mm", "Rear"=>"140mm, 120mm"} |
| Maximum GPU Length | ≤400mm |
| Maximum CPU Cooler Height | ≤180mm |
| Maximum PSU Length | ≤170mm (without cable) |
| Dust Filter | Bottom mounted |
| Net Weight | 8.17 kg |
| Gross Weight | 9.74 kg |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What motherboard types does the OKINOS Air Cross support?
The Air Cross supports ATX, Micro-ATX, and Mini-ITX motherboards, making it compatible with most modern builds. It also fully supports BTF (Back-Connect) motherboards for clean cable routing.
How many fans come pre-installed?
Five high-performance PWM fans are pre-installed: two 140mm fans at the front, two 120mm reverse fans on the PSU shroud, and one 140mm fan at the rear.
What size radiators can the case support?
The case supports radiators up to 360mm on top and 140mm or 120mm at the rear, offering flexibility for custom liquid cooling systems.
Is the case tool-free to assemble?
Yes, the Air Cross features a tool-less design with a press-to-release front mesh and easily removable tempered glass side and top panels for quick assembly and maintenance.
What is the maximum GPU length this case supports?
The case supports graphics cards up to 400mm in length, accommodating most modern high-performance GPUs.
Does the case include cable management features?
Yes, the Air Cross includes a spacious cable routing area with 37mm front and 33mm rear clearance, rubber grommets, Velcro straps, and full BTF motherboard support for clean, cable-free interiors.
What connections are available on the front panel?
The front panel includes two USB 3.0 ports, one USB Type-C 3.2 Gen 2 (10Gbps) port, a 3.5mm headphone/microphone combo jack, plus power and reset buttons.
