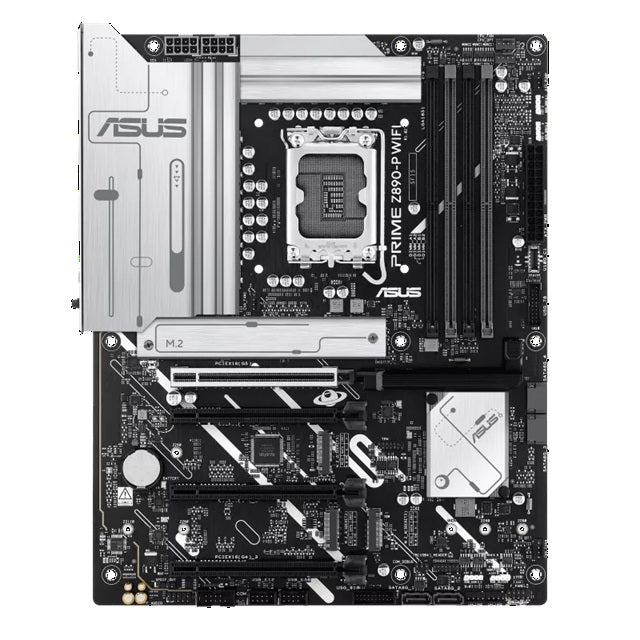

ASUS PRIME Z890-P WIFI-CSM LGA1851 ATX Motherboard
ASUS PRIME Z890-P WIFI-CSM LGA1851 ATX Motherboard
SKU:MBA-Z890-P-CSM-PRIWF
The ASUS PRIME Z890-P WIFI-CSM is an Intel LGA1851 ATX motherboard engineered for Intel Core Ultra Processors (Series 2). Featuring PCIe 5.0 support, DDR5 memory compatibility, and comprehensive cooling solutions, it delivers robust performance and advanced connectivity for high-end PC builds and demanding AI applications.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-Z890-P-CSM-PRIWF |
| Availability | Out of Stock |
Overview
- The ASUS PRIME Z890-P WIFI-CSM is a flagship ATX motherboard designed to maximise the capabilities of Intel's latest Core Ultra Processors (Series 2). With robust power delivery, intelligent cooling solutions, and comprehensive tuning options, it provides users and PC builders with the performance optimisations needed for demanding applications including AI workloads, content creation, and high-end gaming.
This motherboard delivers next-generation connectivity through PCIe 5.0 expansion, Intel Thunderbolt 4 support, and DDR5 memory compatibility up to 256GB. The combination of four M.2 slots and four SATA ports offers exceptional storage flexibility, supporting both modern NVMe drives and legacy SATA devices. ASUS LANGuard ethernet protection ensures reliable network performance for professional environments.
Built on the Intel Z890 chipset, the PRIME Z890-P WIFI-CSM supports Intel Turbo Boost technologies and includes intuitive ASUS BIOS and software tools for easy configuration and overclocking. It comes with a 36-month warranty, making it a reliable foundation for mission-critical business systems and professional workstations.
Specifications
| Brand | ASUS |
|---|---|
| Model | PRIME Z890-P WIFI-CSM |
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm (12 inch x 9.6 inch) |
| CPU Socket | LGA1851 |
| Supported Processors | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB |
| Memory Type | DDR5 |
| Memory Speed | Up to 8666+ MT/s (OC) |
| Memory Features | Intel XMP, ASUS Enhanced Memory Profile III (AEMPIII), On-Die ECC support |
| PCIe Slot 1 | 1 x PCIe 5.0 x16 slot |
| PCIe Slot 2 | 2 x PCIe 4.0 x16 slots (x4 mode) |
| PCIe Slot 3 | 1 x PCIe 4.0 x16 slot (x1 mode) |
| M.2 Slot 1 | PCIe 5.0 x4 (type 2280/22110) |
| M.2 Slot 2 | PCIe 4.0 x4 (type 2280) |
| M.2 Slot 3 | PCIe 4.0 x4 (type 2280/22110) |
| M.2 Slot 4 | PCIe 4.0 x4 and SATA modes (type 2242/2260/2280) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 RAID 0/1/5 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Network Features | ASUS LANGuard, WOL by PME, PXE |
| Video Output 1 | 1 x DisplayPort (4K@60Hz) |
| Video Output 2 | 1 x HDMI (4K@60Hz) |
| Video Output 3 | 1 x Intel Thunderbolt 4 (supports 8K@60Hz with DSC, 23.8Gbps bandwidth) |
| BIOS | 256 Mb Flash ROM (128+128), UEFI AMI BIOS |
| Operating System | Windows 11 (22H2 & later) |
| Warranty | 36 months |
| CPU Features Supported | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0 |
Key Features
Ideal For
FAQs
What Intel processors are compatible with this motherboard?
The PRIME Z890-P WIFI-CSM supports Intel Core Ultra Processors (Series 2) with LGA1851 socket. For a complete compatibility list, refer to the ASUS support website CPU/Memory Support list.
How much DDR5 memory does this motherboard support?
The motherboard supports up to 256GB of DDR5 memory across 4 DIMM slots, with speeds up to 8666+ MT/s in overclocked mode. Memory support varies depending on your CPU configuration.
What storage options are available?
The motherboard features 4 M.2 slots (supporting up to PCIe 5.0 x4 speeds) and 4 SATA 6Gb/s ports. It supports Intel Rapid Storage Technology with RAID 0/1/5/10 for both NVMe and SATA drives.
Does this motherboard support PCIe 5.0?
Yes, it includes 1 x PCIe 5.0 x16 slot connected to the CPU, plus 2 x PCIe 4.0 x16 slots and 1 x PCIe 4.0 x16 slot connected to the Z890 chipset.
What video outputs are included?
The motherboard offers 1 x DisplayPort (4K@60Hz), 1 x HDMI port (4K@60Hz), and 1 x Intel Thunderbolt 4 port supporting up to 8K@60Hz with DisplayPort Alt mode.
Is this motherboard suitable for AI applications?
Yes, the PRIME Z890-P WIFI-CSM is designed to be Advanced AI PC-ready with robust power delivery, comprehensive cooling solutions, and high-speed connectivity needed for demanding AI workloads.
What warranty is included?
The ASUS PRIME Z890-P WIFI-CSM comes with a 36-month manufacturer warranty.
Does it support overclocking?
Yes, the motherboard supports Intel XMP memory profiles and ASUS Enhanced Memory Profile III (AEMPIII), allowing easy overclocking through intuitive BIOS and software tools.
