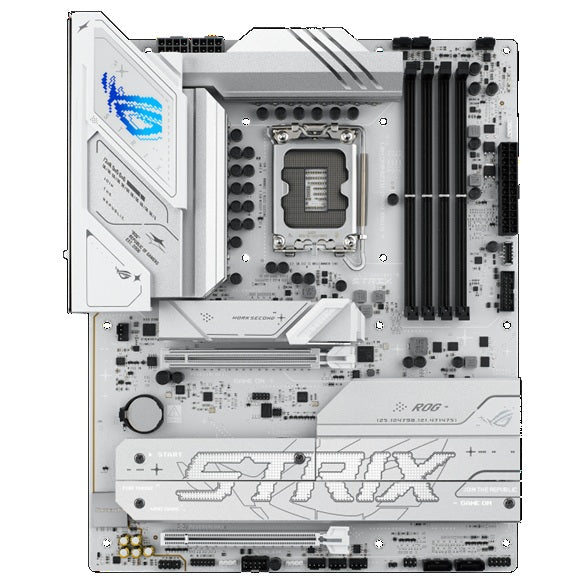

ASUS ROG STRIX B860-A GAMING WIFI LGA1851 ATX Motherboard
ASUS ROG STRIX B860-A GAMING WIFI LGA1851 ATX Motherboard
SKU:MBA-B860-A-ROGWF
The ASUS ROG STRIX B860-A GAMING WIFI is an ATX motherboard designed for Intel Core Ultra processors with advanced AI capabilities. Featuring PCIe 5.0 support, WiFi 7, USB4, and up to 256GB DDR5 memory, it delivers high-performance connectivity and expansion for gaming and professional builds.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-B860-A-ROGWF |
| Availability | Out of Stock |
Overview
- The ASUS ROG STRIX B860-A GAMING WIFI is a premium ATX motherboard engineered for Intel Core Ultra processors with cutting-edge features for gaming, content creation, and AI applications. Built on the Intel B860 chipset, it combines next-generation connectivity with extensive expansion capabilities.
This motherboard delivers outstanding performance through PCIe 5.0 support, enabling maximum bandwidth for modern graphics cards and NVMe storage. With four M.2 slots and four SATA ports, users can configure complex storage solutions for demanding workloads. The inclusion of USB4 provides 20Gbps data transfer speeds and versatile display connectivity via USB Type-C.
Connectivity is handled by WiFi 7 and 2.5Gb Ethernet, ensuring reliable and fast network performance. Integrated Aura Sync RGB lighting allows system customisation to match user preferences. Comprehensive BIOS features, including WOL and PXE boot support, cater to both enthusiasts and IT professionals managing diverse system configurations.
Specifications
| Brand | ASUS |
|---|---|
| Model | ROG STRIX B860-A GAMING WIFI |
| Product Type | ATX Motherboard |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Socket | LGA1851 |
| Chipset | Intel B860 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| CPU Features | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0 |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB |
| Memory Type | DDR5 |
| Memory Speed | Up to 8600+ MT/s (OC) |
| Memory Profiles | XMP, AEMPIII |
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode) |
| M.2 Slots | 4 x M.2 (M.2_1: PCIe 5.0 x4; M.2_2, M.2_3, M.2_4: PCIe 4.0 x4) |
| M.2 Form Factors | 2242, 2260, 2280, 22110 |
| SATA Ports | 4 x SATA 6Gb/s |
| Storage Features | RAID 0/1/5/10 support via Intel Rapid Storage Technology |
| Display Outputs | 1 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz), 1 x USB4 Type-C (4K@60Hz) |
| USB4 Bandwidth | Up to 23.8Gbps maximum total bandwidth |
| Ethernet | 1 x Intel 2.5Gb Ethernet with LANGuard protection |
| Wireless | WiFi 7 |
| Audio | Not specified |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, UEFI PXE |
| Operating System Support | Windows 11 (22H2 & later) |
| RGB Lighting | Aura Sync |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors does this motherboard support?
The ASUS ROG STRIX B860-A GAMING WIFI supports Intel Core Ultra Processors (Series 2). Refer to the ASUS support page for the complete CPU support list to confirm compatibility with your specific processor.
How much memory can this motherboard support?
This motherboard supports up to 256GB of DDR5 memory across four DIMM slots. It supports speeds up to 8600+ MT/s (overclocked) and is compatible with XMP and AEMPIII profiles for optimised performance.
Does this motherboard support PCIe 5.0?
Yes. It features one PCIe 5.0 x16 slot for GPUs and one PCIe 5.0 x4 M.2 slot (M.2_1), providing maximum bandwidth for next-generation components.
How many storage drives can I connect?
You can connect up to eight storage drives: four M.2 NVMe drives across four M.2 slots and four SATA 6Gb/s devices. The motherboard supports RAID configurations (0/1/5/10) via Intel Rapid Storage Technology.
What display outputs are available?
The motherboard includes one DisplayPort (supporting up to 8K@30Hz), one HDMI port (4K@60Hz), and one USB4 Type-C port (4K@60Hz). Graphics capabilities depend on the installed CPU.
Is WiFi 7 included on this motherboard?
Yes, the ASUS ROG STRIX B860-A GAMING WIFI includes WiFi 7 for wireless connectivity, along with 2.5Gb Ethernet for wired networking.
What is the warranty period?
This motherboard comes with a 36-month manufacturer's warranty, providing three years of coverage for parts and labour.
Can I use this motherboard for AI and content creation workloads?
Yes. The motherboard's NPU support and high-speed connectivity (PCIe 5.0, USB4, four M.2 slots) make it well-suited for AI applications and content creation workflows requiring fast data transfer and expansive storage options.
