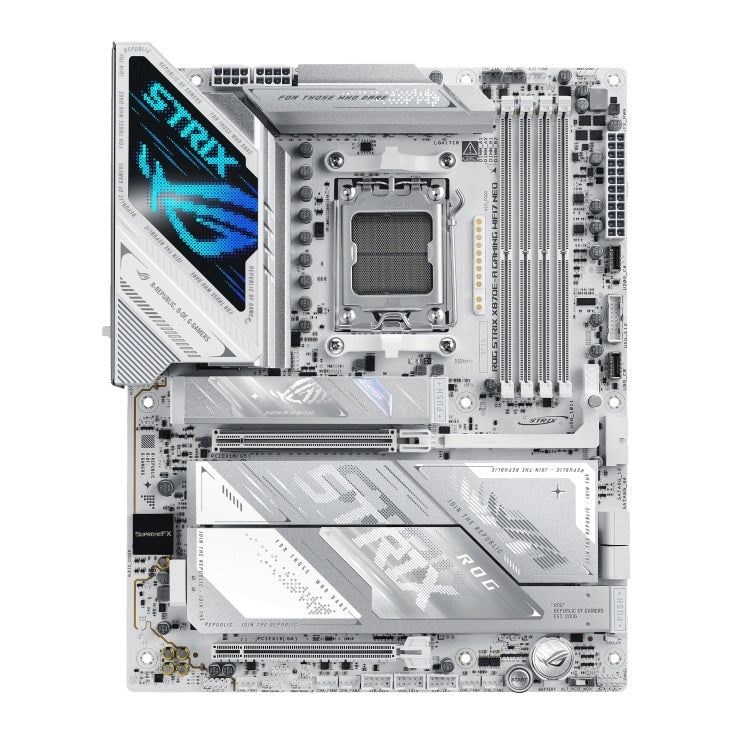

ASUS ROG STRIX X870E-A GAMING NEO ATX Motherboard
ASUS ROG STRIX X870E-A GAMING NEO ATX Motherboard
SKU:MBA-X870E-A-ROG-NEO
The ASUS ROG STRIX X870E-A GAMING NEO is an AMD AM5 ATX motherboard designed for high-performance gaming and content creation builds. Featuring PCIe 5.0 support, DDR5 memory up to 256GB, Wi-Fi 7 connectivity, and dual USB4 ports, it delivers exceptional speed and stability for AMD Ryzen 9000 Series processors and enthusiast workloads.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-X870E-A-ROG-NEO |
| Availability | In Stock |
Overview
- The ASUS ROG STRIX X870E-A GAMING NEO represents the latest generation of high-end AM5 platform motherboards, built specifically to maximise the potential of AMD Ryzen 9000 Series desktop processors. This ATX board combines next-generation connectivity standards—including PCIe 5.0, Wi-Fi 7, and dual USB4 ports—with a comprehensive feature set designed for gaming, streaming, and professional workloads.
With support for DDR5 memory up to 256GB and four M.2 slots, the board accommodates high-capacity storage and memory configurations essential for demanding applications. ASUS has integrated advanced memory technologies such as NitroPath DRAM, DIMM Fit Pro, and AEMP to simplify overclocking and optimise DDR5 stability. The inclusion of AI-driven features like AI Cache Boost and AI Advisor provides automated performance tuning.
Connectivity is comprehensive, featuring 2x USB4 ports with 40Gbps bandwidth, 5Gb Ethernet, Wi-Fi 7 with 160MHz bandwidth support, and multiple USB 10Gbps and 5Gbps ports for peripherals and external storage. Enhanced M.2 cooling solutions address thermal demands of high-speed NVMe drives, ensuring reliability during sustained workloads.
The board supports AMD Ryzen 9000, 8000, and 7000 Series processors with appropriate feature scaling, offering flexibility for a range of system configurations. With 12 months warranty and UEFI AMI BIOS support, this motherboard is suitable for builders prioritising performance, connectivity, and premium build quality.
Specifications
| Brand | ASUS |
|---|---|
| Model | ROG STRIX X870E-A GAMING NEO |
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm (12 inch x 9.6 inch) |
| Socket | AMD AM5 |
| Chipset | AMD X870E |
| Compatible Processors | AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors |
| Memory Slots | 4 x DIMM slots |
| Memory Type | DDR5 |
| Maximum Memory | 256GB |
| Memory Speed Support | Up to 8600+MT/s (OC) with Ryzen 9000 Series, 9600+MT/s (OC) with Ryzen 8000 Series, 8000+MT/s (OC) with Ryzen 7000 Series |
| Memory Architecture | Dual channel |
| Memory Features | EXPO, DIMM Fit Pro, NitroPath DRAM Technology, AEMP, ECC and Non-ECC support |
| M.2 Slots | 4x M.2 slots |
| M.2_1 Support | PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000 Series), type 2242/2260/2280 |
| M.2_2 Support | PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000 Series), type 2280/22110 |
| M.2_3 Support | PCIe 4.0 x4, type 2280 |
| M.2_4 Support | PCIe 4.0 x4, type 2280 |
| SATA Ports | 4x SATA 6Gb/s ports |
| RAID Support | RAID 0, 1, 5, 10 via AMD RAIDXpert2 Technology |
| Primary PCIe Slot | 1x PCIe 5.0 x16 (Ryzen 9000/7000) or PCIe 4.0 x16 (Ryzen 8000/7000 Series) |
| Secondary PCIe Slot | 1x PCIe 4.0 x16 (x4 mode) |
| Video Outputs | 1x HDMI, 2x USB4 Type-C with DisplayPort Alt Mode |
| Ethernet | 1x Realtek 5Gb Ethernet with LANGuard |
| Wireless | Wi-Fi 7 (802.11be) 2x2, MediaTek MT7925, 2.4/5/6GHz bands, 160MHz bandwidth support |
| Bluetooth | Bluetooth 5.4 with LE Audio support |
| Rear USB Ports | 2x USB4 (40Gbps Type-C), 6x USB 10Gbps (5x Type-A, 1x Type-C with 30W PD), 4x USB 5Gbps (4x Type-A) |
| Front USB Headers | 1x USB 20Gbps connector (Type-C), 1x USB 5Gbps connector (Type-C), 2x USB 5Gbps headers, 3x USB 2.0 headers |
| BIOS | 64MB Flash ROM (512Mb), UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System Support | Windows 11 (22H2 and later) |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Which AMD Ryzen processors are compatible with the ROG STRIX X870E-A GAMING NEO?
The motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket. Feature support such as PCIe 5.0 and memory speed scaling varies by processor generation—Ryzen 9000 and 7000 Series unlock full PCIe 5.0 capability, while Ryzen 8000 Series may operate in PCIe 4.0 mode depending on the specific processor model.
What is the maximum DDR5 memory capacity supported?
The motherboard supports up to 256GB of DDR5 memory across 4 DIMM slots. Memory speed support scales with processor generation: up to 8600+MT/s (OC) for Ryzen 9000, 9600+MT/s (OC) for Ryzen 8000, and 8000+MT/s (OC) for Ryzen 7000 Series processors.
Does this motherboard support PCIe 5.0 graphics cards and NVMe drives?
Yes. The primary x16 slot supports PCIe 5.0 mode for graphics cards when paired with Ryzen 9000 or 7000 Series processors. The M.2_1 and M.2_2 slots also support PCIe 5.0 x4 NVMe drives with compatible processors. Ryzen 8000 Series operates in PCIe 4.0 mode.
What are the connectivity features for high-speed data transfer?
The board includes dual USB4 ports (40Gbps with DisplayPort Alt Mode support), 5Gb Ethernet, Wi-Fi 7 with 160MHz bandwidth, and multiple USB 10Gbps and 5Gbps ports. These options provide flexible connectivity for storage, displays, and peripherals suitable for content creation and gaming workloads.
How many M.2 NVMe slots does the motherboard have, and what speeds do they support?
The motherboard provides 4x M.2 slots total. With Ryzen 9000 or 7000 Series, M.2_1 and M.2_2 support PCIe 5.0 x4 speeds. With Ryzen 8000 Series, they support PCIe 4.0 x4. M.2_3 and M.2_4 (via the X870E chipset) support PCIe 4.0 x4. All support standard 2280 form factors; M.2_1 and M.2_2 also support 2242 and 22110 sizes.
Is Wi-Fi 7 fully supported on Windows 11?
Wi-Fi 7 requires Windows 11 version 24H2 or later for full functionality. Earlier Windows 11 versions (21H2, 22H2, 23H2) will operate the board's wireless in Wi-Fi 6E mode. Windows 10 does not have official drivers available; refer to the Wi-Fi chipset vendor (MediaTek) for compatibility details.
What AI-driven features are included on this motherboard?
ASUS has integrated AI Cache Boost and ASUS AI Advisor to provide automated performance tuning and optimisation. These features simplify configuration and help deliver optimised DDR5 memory performance without requiring manual overclocking.
Does the motherboard support RAID storage configuration?
Yes, the motherboard supports RAID 0, 1, 5, and 10 configurations via AMD RAIDXpert2 Technology across the four SATA ports and available M.2 slots for flexible data protection and performance options.
