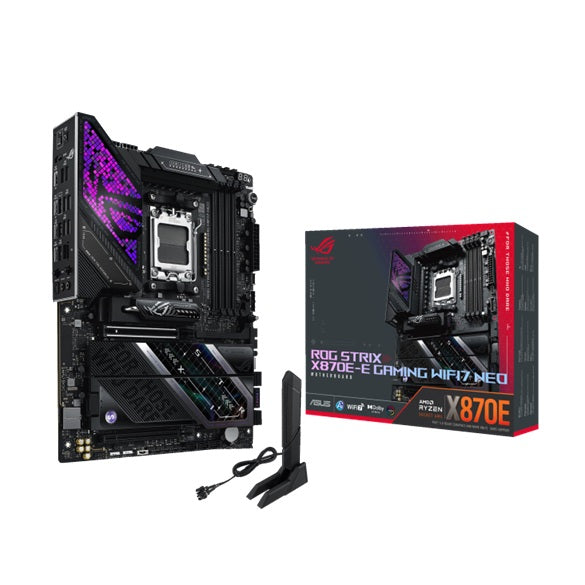

ASUS ROG STRIX X870E-E GAMING NEO AM5 Motherboard
ASUS ROG STRIX X870E-E GAMING NEO AM5 Motherboard
SKU:MBA-X870E-E-GM-NEO
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-X870E-E-GM-NEO |
| Availability | Out of Stock |
Overview
- The ASUS ROG STRIX X870E-E GAMING NEO is a premium ATX motherboard designed for enthusiasts and professionals building high-end AMD-based systems. Built on the latest X870E chipset, it delivers cutting-edge connectivity and expansion options including PCIe 5.0 support, five M.2 slots, Wi-Fi 7, and dual USB4 ports.
This motherboard supports AMD Ryzen 9000, 8000, and 7000 series processors with DDR5 memory scaling up to 256GB, making it ideal for content creation, gaming, and professional workloads. The ROG STRIX design emphasises cooling, power delivery, and overclocking potential through ASUS Enhanced Memory Profile (AEMP) and AMD EXPO support.
With four SATA 6Gb/s ports, RAID functionality, and comprehensive manageability features including WOL and PXE, the X870E-E GAMING NEO provides reliability and flexibility for demanding applications. The ATX form factor ensures broad compatibility with most PC cases and cooling solutions.
Specifications
| Brand | ASUS |
|---|---|
| Model | ROG STRIX X870E-E GAMING NEO |
| Product Type | ATX Motherboard |
| CPU Socket | AMD AM5 |
| Chipset | AMD X870E |
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 series |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB DDR5 |
| Memory Speed Support | 8600+ MT/s with Ryzen 9000 series, 9600+ MT/s overclocked with Ryzen 8000 series, 8000+ MT/s with Ryzen 7000 series |
| Memory Technology | DDR5, ECC and Non-ECC support, EXPO, AEMP, NitroPath DRAM, DIMM Fit Pro |
| Memory Architecture | Dual channel |
| PCIe Slot 1 | PCIe 5.0 x16 (CPU-connected, Ryzen 9000/7000 series) |
| PCIe Slot 2 | PCIe 4.0 x16 (x4 mode, chipset-connected) |
| M.2 Slots | 5 x M.2 slots |
| M.2_1 Slot | Type 2242/2260/2280, PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000/8500/8300) |
| M.2_2 Slot | Type 2242/2260/2280, PCIe 5.0 x4 (Ryzen 9000), PCIe 4.0 x4 (Ryzen 8000) |
| M.2_3 to M.2_5 Slots | Type 2280, PCIe 4.0 x4 (chipset-connected) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 via AMD RAIDXpert2 |
| Ethernet | 1 x Realtek 5GbE with ASUS LANGuard |
| Wi-Fi | Wi-Fi 7 |
| USB Ports | 2 x USB4 (40Gbps, Type-C display output) |
| Video Output | 1 x HDMI, 2 x USB4 for display |
| BIOS | 64MB (512Mb) Flash ROM, UEFI AMI |
| Manageability | WOL by PME, PXE |
| Form Factor | ATX |
| Dimensions | 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Operating System Support | Windows 11 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What AMD processors are compatible with this motherboard?
The ASUS ROG STRIX X870E-E GAMING NEO supports AMD Ryzen 9000, 8000, and 7000 series desktop processors in the AM5 socket. For a complete compatibility list, refer to the ASUS support website.
What is the maximum memory capacity and speed?
This motherboard supports up to 256GB of DDR5 memory across four DIMM slots. Memory speeds reach 8600+ MT/s with Ryzen 9000 series, up to 9600+ MT/s overclocked with Ryzen 8000 series, and 8000+ MT/s with Ryzen 7000 series, using AMD EXPO or ASUS AEMP profiles.
Does this motherboard support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0 x16 when paired with Ryzen 9000 or 7000 series processors. Two M.2 slots (M.2_1 and M.2_2) also support PCIe 5.0 x4 with compatible CPUs. The secondary PCIe slot and remaining M.2 slots use PCIe 4.0.
How many M.2 NVMe slots does this board have?
The ROG STRIX X870E-E GAMING NEO has five M.2 slots total. Slots M.2_1 and M.2_2 support 2242/2260/2280 form factors with up to PCIe 5.0 x4 (depending on CPU). Slots M.2_3, M.2_4, and M.2_5 support 2280 form factor with PCIe 4.0 x4 from the chipset.
What networking features are included?
This motherboard includes a Realtek 5GbE Ethernet port with ASUS LANGuard protection and Wi-Fi 7 for wireless connectivity, providing fast and reliable network connectivity for gaming and professional applications.
Does this motherboard support overclocking?
Yes. The ROG STRIX X870E-E GAMING NEO supports advanced overclocking through AMD EXPO, ASUS Enhanced Memory Profile (AEMP), and manual BIOS configuration. It is designed for enthusiast-level tuning and performance optimisation.
What display outputs are available?
The motherboard offers one HDMI port and two USB4 ports that support USB Type-C display output, providing flexibility for connecting monitors and displays.
What is the warranty period?
The ASUS ROG STRIX X870E-E GAMING NEO comes with a 36-month manufacturer warranty, providing three years of coverage for hardware defects and peace of mind.
