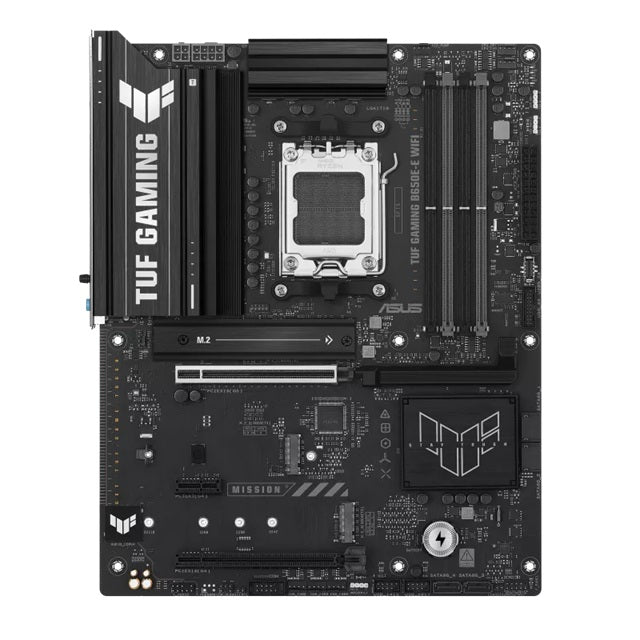

ASUS TUF GAMING B650E-E WIFI AMD AM5 Motherboard
ASUS TUF GAMING B650E-E WIFI AMD AM5 Motherboard
SKU:MBA-B650E-E-TUFWF
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-B650E-E-TUFWF |
| Availability | In Stock |
Overview
- The ASUS TUF GAMING B650E-E WIFI is a premium AMD AM5 motherboard designed for high-performance gaming, content creation, and AI applications. Built with military-grade components and subjected to rigorous endurance testing, this board delivers rock-solid stability under demanding conditions. The PCIe 5.0 support ensures compatibility with next-generation graphics cards and storage devices, whilst the DDR5 memory support up to 256GB provides ample capacity for multithreaded workloads.
Connectivity is comprehensive, featuring Wi-Fi 6E for wireless performance, 2.5Gb Ethernet for wired networking, and abundant USB ports including 10Gbps and 20Gbps options. The three M.2 slots accommodate multiple NVMe drives for boot, application, and storage needs. Premium audio processing with Realtek 7.1 Surround Sound and dedicated audio layers caters to enthusiasts and content professionals.
The TUF GAMING series is known for dependable performance and aesthetic ruggedness. This motherboard combines proven durability with cutting-edge platform features, making it suitable for users building systems that must perform consistently over extended periods.
Specifications
| Brand | ASUS |
|---|---|
| Model | TUF GAMING B650E-E WIFI |
| Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm (12 inch x 9.6 inch) |
| Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors |
| CPU Power Support | Up to 200W |
| Memory Slots | 4 x DIMM DDR5 |
| Maximum Memory | 256GB |
| Memory Speeds | Up to 8000+ MT/s (OC) with Ryzen 9000, 8000 and 7000 Series |
| Memory Features | EXPO support, AEMP, ECC and Non-ECC compatible, Dual channel architecture |
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x1 mode), 1 x PCIe 4.0 x1 |
| M.2 Slots | 3 x M.2 (Type 2280/2242/2260/22110) |
| M.2_1 Specifications | Key M, Type 2280, PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000) |
| M.2_2 Specifications | Key M, Type 2280, PCIe 4.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4/x2 (Ryzen 8000) |
| M.2_3 Specifications | Key M, Type 2242/2260/2280/22110, PCIe 4.0 x4 |
| SATA Ports | 4 x SATA 6Gb/s |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wi-Fi | Wi-Fi 6E 802.11ax, 2x2 antenna, 2.4/5/6GHz bands |
| Bluetooth | Bluetooth v5.3 |
| Rear USB Ports | 2 x USB 10Gbps (1 x Type-A, 1 x Type-C), 3 x USB 5Gbps (Type-A), 3 x USB 2.0 (Type-A) |
| Front USB Headers | 1 x USB 20Gbps (Type-C), 1 x USB 5Gbps (supports 2 ports), 2 x USB 2.0 (supports 4 ports) |
| Display Outputs | 1 x HDMI, 1 x DisplayPort |
| Audio Codec | Realtek 7.1 Surround Sound High Definition Audio |
| Audio Specifications | 24-Bit/192 kHz playback, jack-detection, multi-streaming, premium capacitors, dedicated audio PCB layers |
| BIOS | 256 Mb Flash ROM, UEFI AMI |
| Manageability | WOL by PME, PXE |
| Operating System Support | Windows 11, Windows 10 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What AMD Ryzen processors does this motherboard support?
The ASUS TUF GAMING B650E-E WIFI supports AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors on Socket AM5. It supports up to 200W CPU power.
Does this motherboard support PCIe 5.0?
Yes. The motherboard features one PCIe 5.0 x16 slot and one M.2 slot with PCIe 5.0 x4 support for next-generation graphics cards and NVMe storage devices when paired with Ryzen 9000 or 7000 Series processors.
How much DDR5 memory can this motherboard support?
The motherboard has 4 x DIMM slots supporting up to 256GB of DDR5 memory. It supports speeds up to 8000+ MT/s (OC) with Ryzen 9000, 8000 and 7000 Series processors and is compatible with EXPO and AEMP profiles.
What wireless and networking connectivity is included?
The motherboard features Wi-Fi 6E with 2x2 antenna support across 2.4/5/6GHz bands, Bluetooth v5.3, and 2.5Gb Ethernet with TUF LANGuard protection for wired networking.
How many storage devices can I connect to this motherboard?
You can connect up to 7 storage devices: 3 x M.2 NVMe slots and 4 x SATA 6Gb/s ports. M.2_1 supports PCIe 5.0 x4 (with compatible processors), whilst other slots support PCIe 4.0.
What is the warranty period for this motherboard?
The ASUS TUF GAMING B650E-E WIFI comes with a 36-month (3-year) warranty.
Is this motherboard suitable for gaming and content creation?
Yes. The motherboard combines military-grade durability, high-speed PCIe 5.0 storage, extensive M.2 slots, and premium 7.1 Surround Sound audio, making it ideal for gaming, video production, and other demanding applications.
What front panel connectors are available?
The motherboard provides one USB 20Gbps connector (Type-C), one USB 5Gbps header (supports 2 ports), and two USB 2.0 headers (support 4 ports) for connecting front panel devices.
