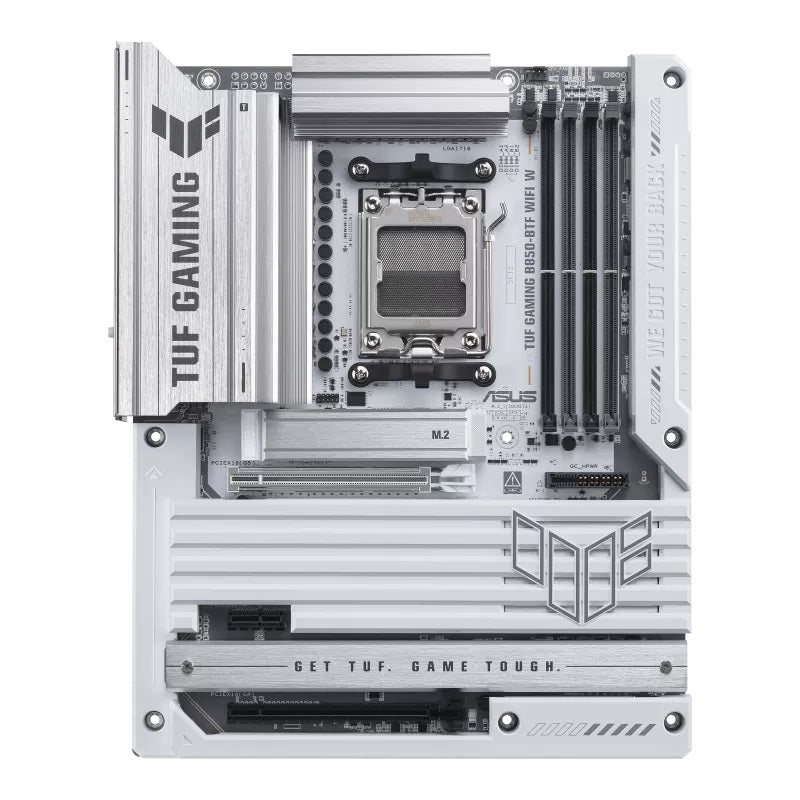

ASUS TUF GAMING B850-BTF WIFI W AMD AM5 ATX Motherboard
ASUS TUF GAMING B850-BTF WIFI W AMD AM5 ATX Motherboard
SKU:MBA-B850-BTF-WFTUF-W
The ASUS TUF GAMING B850-BTF WIFI W is an AMD AM5 ATX motherboard designed for high-performance gaming and AI PC builds. Featuring PCIe 5.0 support, Wi-Fi 7, DDR5 memory support up to 256GB, and 600W BTF GPU power delivery, it delivers clean cable management and advanced connectivity for professional gamers and content creators.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-B850-BTF-WFTUF-W |
| Availability | In Stock |
Overview
- The ASUS TUF GAMING B850-BTF WIFI W is a premium ATX motherboard built for high-performance gaming and AI-driven PC applications. It combines the latest AMD B850 chipset with innovative BTF (Back-to-Future) design, routing all connectors to the underside of the board for a clean, minimalist appearance. This approach eliminates cable clutter whilst delivering up to 600 watts of dedicated power to BTF-compatible graphics cards.
Built on the proven TUF platform, this board delivers enterprise-grade durability without compromising on features. It supports the full range of AMD Ryzen 9000, 8000, and 7000 series processors via Socket AM5, with DDR5 memory capacity up to 256GB and PCIe 5.0 connectivity for next-generation storage devices. The integrated Wi-Fi 7 (802.11be) provides industry-leading wireless speeds up to 2.9Gbps across 2.4GHz, 5GHz, and 6GHz bands, whilst the 2.5Gb Ethernet port with TUF LANGuard ensures reliable wired connectivity.
With three M.2 NVMe slots, four SATA ports, and comprehensive storage RAID support, this motherboard handles multi-drive configurations essential for content creation and data-intensive workloads. DisplayPort 1.4 and HDMI 2.1 outputs support 8K and 4K displays respectively, making it ideal for professional workflows. The 256MB BIOS ROM enables rapid firmware updates and compatibility improvements.
Specifications
| Brand | ASUS |
|---|---|
| Model | TUF GAMING B850-BTF WIFI W |
| Form Factor | ATX |
| Dimensions | 30.5 cm × 24.4 cm |
| Socket | AMD Socket AM5 |
| Chipset | AMD B850 |
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 series |
| BIOS | 256 Mb Flash ROM, UEFI AMI |
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB |
| Memory Speed | Up to 8000+ MT/s (OC) |
| Memory Features | AMD EXPO™, AEMP, ECC support |
| Primary PCIe Slot | 1 x PCIe 5.0 x16 (Ryzen 9000/7000), or PCIe 4.0 x8/x4 (Ryzen 8000) |
| Secondary PCIe Slots | 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1 |
| M.2 Slots | 3 x M.2 (M.2_1 PCIe 5.0 x4 for Ryzen 9000/7000, M.2_2 PCIe 4.0 x4, M.2_3 PCIe 4.0 x4) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (Ryzen 9000), RAID 0/1 (Ryzen 8000), RAID 0/1/10 (Ryzen 7000) |
| GPU Power Delivery | 600W BTF graphics card support |
| Ethernet | 1 x Realtek 2.5Gb with TUF LANGuard |
| Wi-Fi Standard | Wi-Fi 7 (802.11be), 2x2 |
| Wi-Fi Frequency Bands | 2.4GHz, 5GHz, 6GHz |
| Wi-Fi Speed | Up to 2.9Gbps |
| Wi-Fi Bandwidth | 160MHz |
| Bluetooth | Bluetooth 5.4 |
| Video Outputs | 1 x DisplayPort 1.4, 1 x HDMI 2.1 |
| DisplayPort Capability | Up to 8K@30Hz |
| HDMI Capability | Up to 4K@60Hz |
| Additional Features | WOL by PME, PXE, BTF design with underside connectors |
| Operating System Support | Windows 11 |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is BTF design and how does it benefit my build?
BTF (Back-to-Future) design routes all connectors to the underside of the motherboard, hiding cables from view. This enables a minimalist, clean build appearance whilst the dedicated 600W BTF GPU power slot accommodates compatible graphics cards without visible power cables, significantly improving cable management and aesthetics.
Which AMD Ryzen processors are supported?
This motherboard supports AMD Ryzen 9000, 8000, and 7000 series desktop processors via Socket AM5. For a detailed list of compatible CPUs, refer to the ASUS support website CPU compatibility list.
Does this motherboard support PCIe 5.0 storage?
Yes. The M.2_1 slot supports PCIe 5.0 x4 mode when paired with Ryzen 9000 or 7000 series processors, enabling next-generation NVMe SSDs. The M.2_2 and M.2_3 slots support PCIe 4.0 x4.
What is the maximum memory capacity?
The motherboard supports up to 256GB of DDR5 memory across four DIMM slots. Speed support reaches 8000+ MT/s (OC) with Ryzen 9000, 8000, and 7000 series processors when using compatible memory modules.
What wireless and wired connectivity options are available?
The board includes Wi-Fi 7 (802.11be) with up to 2.9Gbps speeds across 2.4GHz, 5GHz, and 6GHz bands, Bluetooth 5.4, and a 2.5Gb Ethernet port with TUF LANGuard protection for secure wired connectivity.
Can I use RAID with this motherboard?
Yes. RAID support varies by processor: Ryzen 9000 supports RAID 0/1/5/10, Ryzen 8000 supports RAID 0/1, and Ryzen 7000 supports RAID 0/1/10. Use the AMD RAIDXpert2 utility to configure RAID arrays.
Does this motherboard support DisplayPort and HDMI?
Yes. The motherboard includes one DisplayPort 1.4 (supports up to 8K@30Hz) and one HDMI 2.1 port (supports up to 4K@60Hz). Graphics output capability depends on your CPU.
What is the warranty period?
This motherboard comes with a 12-month warranty from ASUS, covering manufacturing defects and hardware failures under normal usage.
