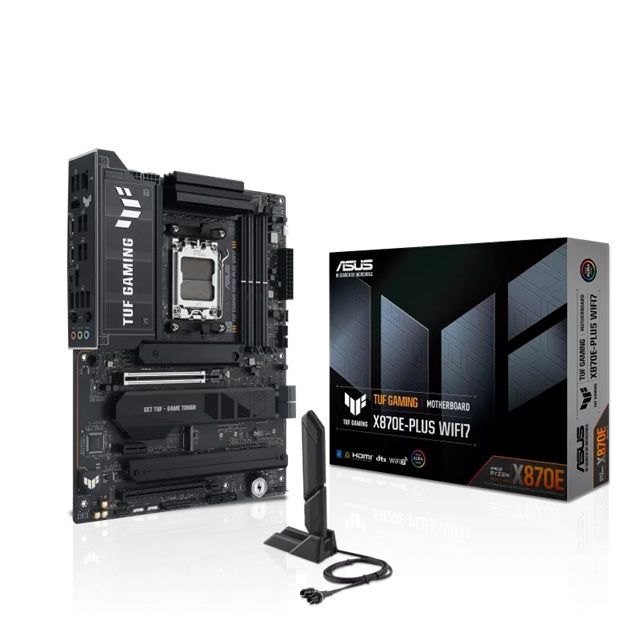

ASUS TUF GAMING X870E-PLUS WIFI7 ATX Motherboard
ASUS TUF GAMING X870E-PLUS WIFI7 ATX Motherboard
SKU:MBA-X870E-PLUS-WFTUF
The ASUS TUF GAMING X870E-PLUS WIFI7 is a high-performance AM5 ATX motherboard built for next-generation Ryzen processors. Featuring PCIe 5.0 support, DDR5 memory up to 256GB, Wi-Fi 7, and USB4 connectivity, it delivers exceptional speed and reliability for gaming and content creation.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-X870E-PLUS-WFTUF |
| Availability | In Stock |
Overview
- The ASUS TUF GAMING X870E-PLUS WIFI7 is a premium ATX motherboard designed for the latest Ryzen 9000, 8000, and 7000 Series processors. Built on the AMD X870E chipset, it delivers cutting-edge performance with PCIe 5.0 expansion slots, DDR5 memory support up to 256GB, and four M.2 slots for rapid storage scaling. The motherboard includes Wi-Fi 7 connectivity with multi-band support (2.4/5/6GHz), dual USB4 40Gbps ports for high-speed displays, and 2.5GbE Ethernet with TUF LANGuard protection.
This board is engineered for demanding workloads including gaming, 4K content creation, and professional applications. The TUF series focuses on durability and stability, making it a reliable choice for system integrators and enthusiasts who need robust, long-term performance. With comprehensive RAID support (RAID 0/1/5/10 depending on CPU), extensive overclocking profiles, and a full 36-month warranty, it provides excellent value for high-end system builds.
The X870E-PLUS WIFI7 supports EXPO and AEMP overclocking profiles, allowing users to unlock the full potential of compatible memory modules. Its ATX form factor ensures broad compatibility with standard PC cases, while the dual USB4 ports deliver premium connectivity for external Thunderbolt devices and high-resolution displays.
Specifications
| Brand | ASUS |
|---|---|
| Model | TUF GAMING X870E-PLUS WIFI7 |
| Chipset | AMD X870E |
| Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 9000, 8000 & 7000 Series |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Memory Slots | 4x DIMM |
| Memory Type | DDR5 |
| Maximum Memory | 256GB |
| Memory Speed | Up to 8000+MT/s (OC) |
| Memory Features | EXPO, AEMP, ECC and Non-ECC support |
| PCIe Slots | 3 total slots (configuration varies by CPU) |
| PCIe 5.0 x16 | 1 slot (Ryzen 9000 & 7000 Series) |
| PCIe 4.0 x16 | 1 slot (x4 mode) |
| PCIe 3.0 x1 | 1 slot |
| M.2 Slots | 4 total (configuration varies by CPU) |
| M.2 Support | PCIe 5.0 and PCIe 4.0 depending on slot |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 (varies by CPU) |
| Ethernet | 1x Realtek 2.5GbE with TUF LANGuard |
| Wireless | Wi-Fi 7 (802.11be), 2x2, 2.4/5/6GHz bands |
| Wi-Fi Data Rate | Up to 2.9Gbps |
| Bluetooth | v5.4 |
| USB Ports | 2x USB4 (40Gbps) with DisplayPort support |
| Video Outputs | 1x HDMI 2.1 (4K@60Hz) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Which Ryzen processors are supported?
The TUF GAMING X870E-PLUS WIFI7 supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on Socket AM5. Check ASUS's CPU support list for your specific processor model compatibility.
What is the maximum amount of RAM I can install?
The motherboard supports up to 256GB of DDR5 RAM across four DIMM slots. Memory speed support up to 8000+MT/s is available with compatible Ryzen processors using EXPO or AEMP profiles.
Does this motherboard support Wi-Fi 7?
Yes, it features Wi-Fi 7 (802.11be) with 2x2 configuration supporting 2.4GHz, 5GHz, and 6GHz bands with up to 2.9Gbps transfer rate. Windows 11 24H2 or later is required for full Wi-Fi 7 functionality.
How many M.2 drives can I connect?
The motherboard has four M.2 slots. The exact PCIe generation (5.0 or 4.0) and configuration available depends on your CPU type. Check the specifications for your specific processor model.
What is the difference between the M.2 slots?
M.2 slot configuration varies by processor. Ryzen 9000 & 7000 Series support PCIe 5.0 on select slots, while Ryzen 8000 Series support PCIe 4.0. Chipset-connected slots (M.2_3 and M.2_4) offer PCIe 4.0 support.
Does this motherboard have USB4?
Yes, it includes two USB4 (40Gbps) ports with USB Type-C connectors that support DisplayPort 1.4a for 4K@60Hz display output.
What warranty does the TUF GAMING X870E-PLUS WIFI7 come with?
The motherboard includes a 36-month manufacturer warranty covering defects in materials and workmanship.
Is this motherboard suitable for overclocking?
Yes, the TUF GAMING X870E-PLUS WIFI7 supports extensive overclocking with EXPO and AEMP memory profiles. It's designed for enthusiasts seeking performance optimisation while maintaining stability.
