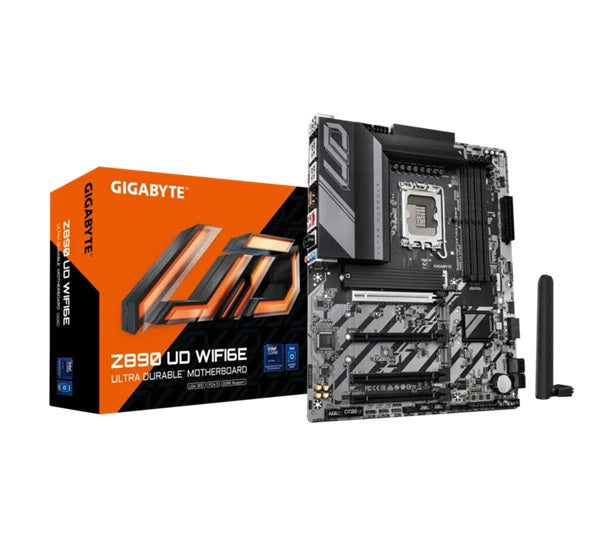

Gigabyte Z890 UD WIFI6E Intel LGA 1851 ATX Motherboard
Gigabyte Z890 UD WIFI6E Intel LGA 1851 ATX Motherboard
SKU:MBG-Z890UDWIFI6E
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-Z890UDWIFI6E |
| Availability | In Stock |
Overview
- The Gigabyte Z890 UD WIFI6E is a full-featured ATX motherboard engineered for Intel Core Ultra processors on the LGA 1851 socket. This platform motherboard delivers enterprise-grade reliability with modern connectivity standards, making it suitable for demanding workstations, gaming systems, and professional environments.
With support for up to 256GB of DDR5 memory across four DIMM slots, this board handles memory-intensive applications with ease. The integrated Wi-Fi 6E module provides cutting-edge wireless performance with Bluetooth 5.3, whilst the 2.5GbE LAN ensures fast wired connectivity. USB4 with DisplayPort support and three M.2 sockets offer future-proof expandability for storage and peripherals.
Built for stability and ease of management, the Z890 UD WIFI6E includes Gigabyte's Control Centre software suite, Q-Flash BIOS utilities, and Smart Backup functionality. The 36-month manufacturer warranty provides peace of mind for mission-critical deployments across Australian organisations.
Specifications
| Socket Type | Intel LGA 1851 |
|---|---|
| Chipset | Intel Z890 Express |
| Form Factor | ATX (30.5cm x 24.4cm) |
| CPU Support | Intel Core Ultra Processors |
| Memory Slots | 4x DDR5 DIMM |
| Maximum Memory | 256GB (64GB per DIMM) |
| PCI-E Slots | 4x PCI-E x16 |
| M.2 Slots | 3x M.2 NVMe |
| SATA Ports | 4x SATA |
| USB 2.0 Ports | 4x USB 2.0/1.1 |
| USB 3.2 Gen 1 Ports | 4x USB 3.2 Gen 1 |
| USB 3.2 Gen 2 Ports | 1x USB 3.2 Gen 2 Type-A |
| USB4 Ports | 1x USB4 Type-C with DisplayPort |
| DisplayPort | 1x DisplayPort rear panel |
| Wireless Module | Intel Wi-Fi 6E AX211 |
| Wireless Standards | 802.11a/b/g/n/ac/ax with 160MHz support |
| Wireless Bands | 2.4GHz, 5GHz, 6GHz |
| Bluetooth | Bluetooth 5.3 |
| Antenna | 2x SMA antenna connectors (2T2R) |
| LAN | Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio Codec | Realtek Audio CODEC |
| Audio Channels | 2/4/5.1/7.1-channel surround |
| Audio Jacks | 3x audio jacks |
| PS/2 | 1x PS/2 keyboard/mouse port |
| RJ-45 | 1x RJ-45 network port |
| BIOS Features | Q-Flash, Q-Flash Plus, Smart Backup |
| Software | Gigabyte Control Centre (GCC) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with the Gigabyte Z890 UD WIFI6E?
This motherboard supports Intel Core Ultra processors on the LGA 1851 socket. Check Intel's official specifications for your specific processor model to ensure compatibility.
How much memory can this motherboard support?
The Z890 UD WIFI6E supports up to 256GB of DDR5 memory across four DIMM slots, with a maximum of 64GB per single DIMM.
Does this motherboard have Wi-Fi built in?
Yes, it features Intel Wi-Fi 6E AX211 with Bluetooth 5.3, supporting 2.4GHz, 5GHz, and 6GHz bands with 160MHz wireless standard support.
What storage options are available?
The board includes 4x SATA ports for traditional drives and 3x M.2 sockets for NVMe SSDs, providing flexible storage configurations.
Is USB4 supported on this motherboard?
Yes, the Z890 UD WIFI6E includes one USB4 Type-C port with DisplayPort support for high-speed data transfer and display connectivity.
What warranty does Gigabyte provide for this motherboard?
The Gigabyte Z890 UD WIFI6E comes with a 36-month manufacturer warranty covering defects and hardware faults.
Can I update the BIOS easily on this motherboard?
Yes, Gigabyte includes Q-Flash and Q-Flash Plus utilities for straightforward BIOS updates without requiring a CPU or memory installed.
