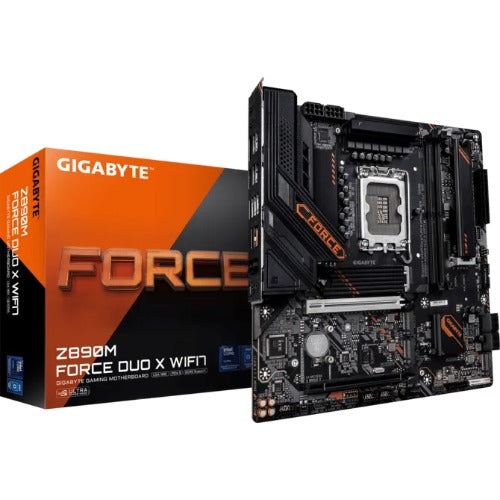

Gigabyte Z890M FORCE DUO X WIFI7 ATX Motherboard
Gigabyte Z890M FORCE DUO X WIFI7 ATX Motherboard
SKU:MBG-Z890MFORCEDUOXWIFI7
The Gigabyte Z890M FORCE DUO X WIFI7 is an Intel LGA 1851 ATX motherboard designed for high-performance computing builds. Featuring Wi-Fi 7 connectivity, up to 256 GB DDR5 support, and PCIe 5.0 expansion, it delivers enterprise-grade performance for business systems and workstation builds.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-Z890MFORCEDUOXWIFI7 |
| Availability | In Stock |
Overview
- The Gigabyte Z890M FORCE DUO X WIFI7 is a premium ATX motherboard built on the Intel Z890 chipset, delivering enterprise-grade performance for demanding business and professional computing environments. With support for Intel Core Ultra processors and up to 256 GB of DDR5 memory, it provides the foundation for high-capacity, high-speed systems. The motherboard includes Wi-Fi 7 connectivity with 802.11be support, Bluetooth 5.4, and Intel Thunderbolt 4, ensuring modern connectivity standards for professional workflows. With PCIe 5.0 expansion, four M.2 slots, and four SATA ports, it supports multiple high-speed storage and peripheral configurations.
Designed for organisations requiring reliable, expandable platforms, the Z890M FORCE DUO X WIFI7 combines technical sophistication with practical build flexibility. The 2.5GbE Realtek LAN chip supports high-bandwidth networking, whilst integrated audio processing and multiple USB connectivity options cover standard professional requirements. Smart backup and Q-Flash capabilities simplify system management and BIOS updates, reducing downtime during maintenance.
Specifications
| CPU Socket | Intel LGA1851 |
|---|---|
| Chipset | Intel Z890 Express |
| Memory Support | 4 x DDR5 DIMM slots, up to 256 GB (64 GB per DIMM) |
| Expansion Slots - PCIe 5.0 | 1 x PCI Express x16 (CPU-connected) |
| Expansion Slots - PCIe 4.0 | 2 x PCI Express x16 (x4 mode, chipset-connected) |
| M.2 Slots | 4 |
| SATA Connectors | 4 |
| Wireless | MediaTek Wi-Fi 7 MT7925, 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, 160 MHz bandwidth, Bluetooth 5.4 |
| LAN | Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio Codec | Realtek ALC1220 |
| Thunderbolt | 1 x Intel Thunderbolt 4 (USB Type-C) |
| USB 3.2 Gen 2 | 2 x Type-A ports |
| USB 3.2 Gen 1 | 3 x ports |
| USB 2.0 | 4 x ports |
| Audio Connectors | 2 x audio jacks, 1 x optical S/PDIF Out |
| Video Output | 1 x DisplayPort |
| Network Connector | 1 x RJ-45 |
| Antenna Connectors | 2 x (2T2R) |
| Form Factor | ATX |
| Dimensions | 305 mm x 244 mm |
| Additional Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with the Gigabyte Z890M FORCE DUO X WIFI7?
This motherboard supports Intel Core Ultra processors via the LGA 1851 socket and Intel Z890 Express chipset.
How much RAM can this motherboard support?
The Z890M FORCE DUO X WIFI7 features 4 DDR5 DIMM slots supporting up to 256 GB of system memory, with a maximum of 64 GB per single DIMM.
Does this motherboard support Wi-Fi 7?
Yes, the motherboard includes a MediaTek Wi-Fi 7 MT7925 module with 802.11be support across 2.4/5/6 GHz bands, plus Bluetooth 5.4 connectivity.
What storage options are available?
The motherboard provides 4 M.2 slots and 4 SATA connectors, supporting multiple high-speed and traditional storage configurations.
What expansion slots does this motherboard have?
It includes 1 PCIe 5.0 x16 slot (CPU-connected) and 2 PCIe 4.0 x16 slots running at x4 mode (chipset-connected) for GPU and peripheral expansion.
Does it have Thunderbolt support?
Yes, the motherboard features 1 Intel Thunderbolt 4 connector (USB Type-C) for high-speed data transfer and connectivity.
What warranty is included?
The Gigabyte Z890M FORCE DUO X WIFI7 includes a 36-month manufacturer warranty.
Is this motherboard suitable for business and professional workstations?
Yes, with enterprise-grade features, PCIe 5.0 support, extensive storage connectivity, and advanced networking, it is designed for high-performance professional systems.
